January 23, 2011

Gussets and brackets

Category: Forward Fuselage — Steffen @ 20:56 — Hours: 4.5

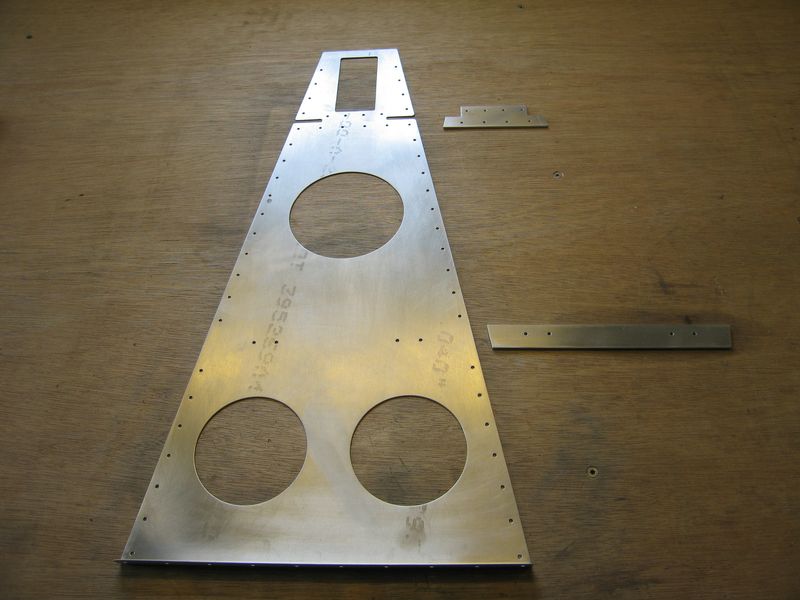

Yesterday I removed and deburred the aft deck parts.

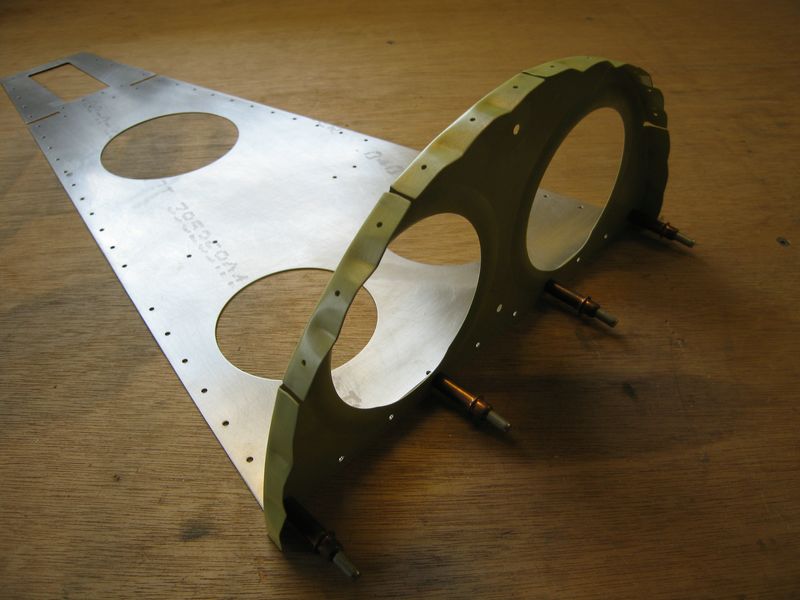

I also matchdrilled the aft bulkhead to the deck.

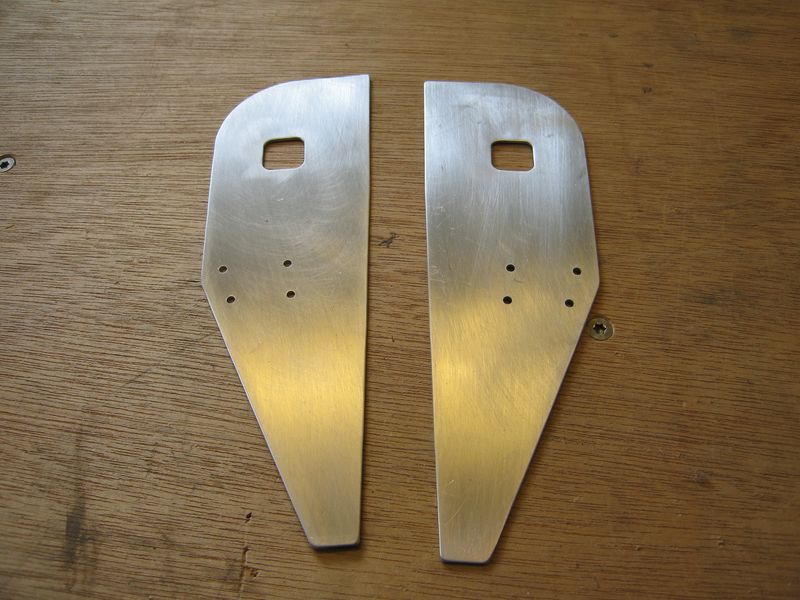

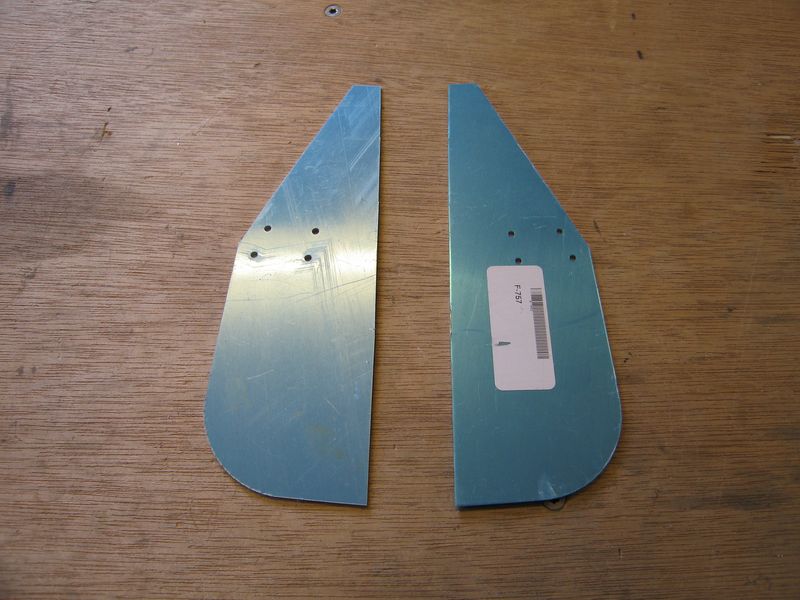

After that I dug out and the  F-757 plates…

These plates need a square hole for the canopy latches.

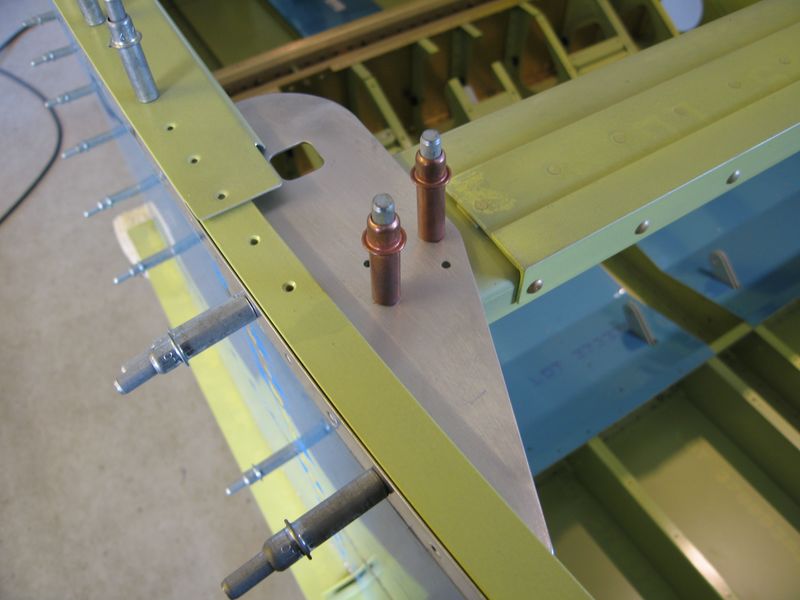

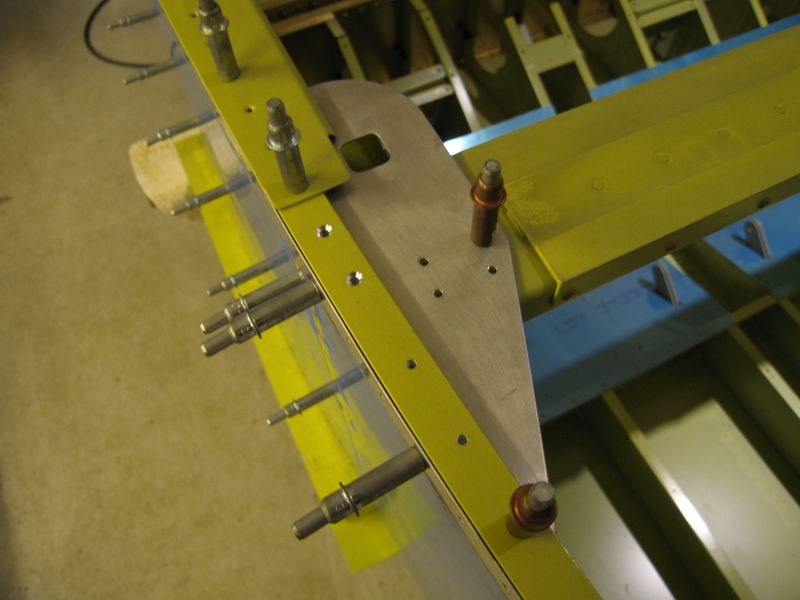

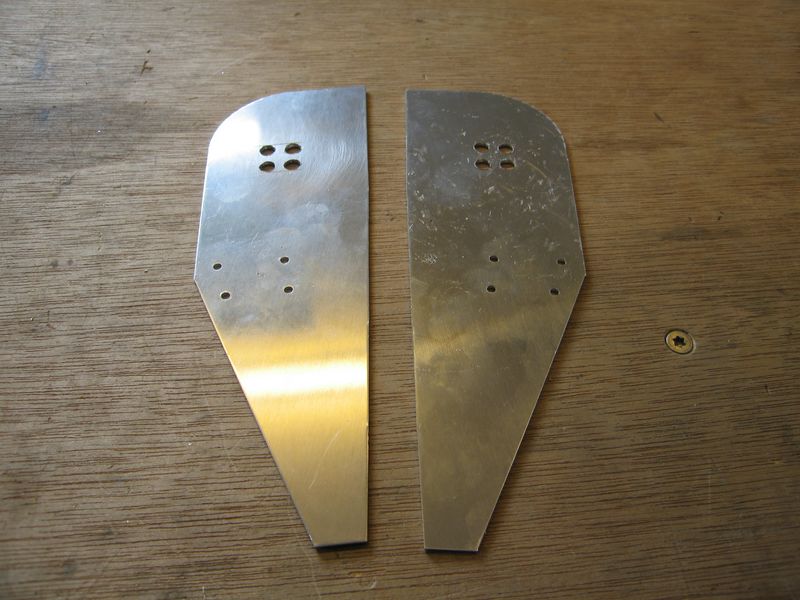

Today I clecoed them in place, marked the holes and drilled them.

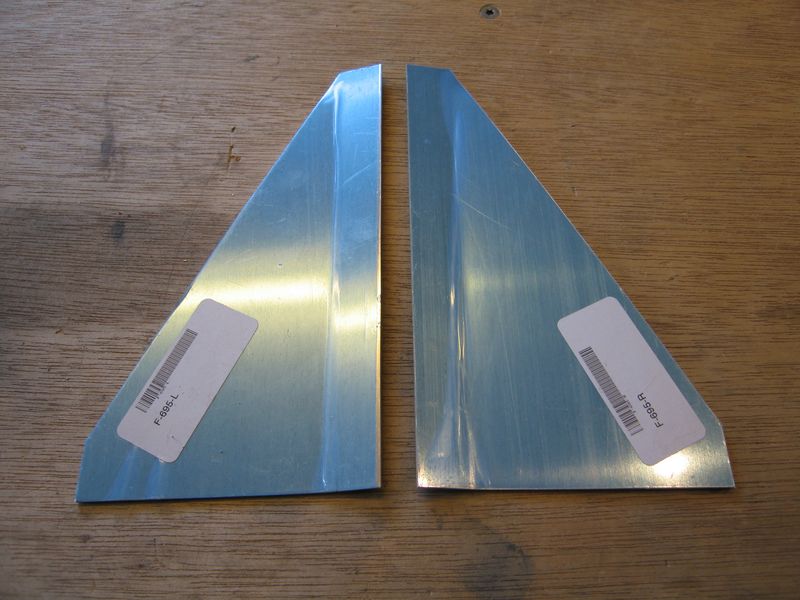

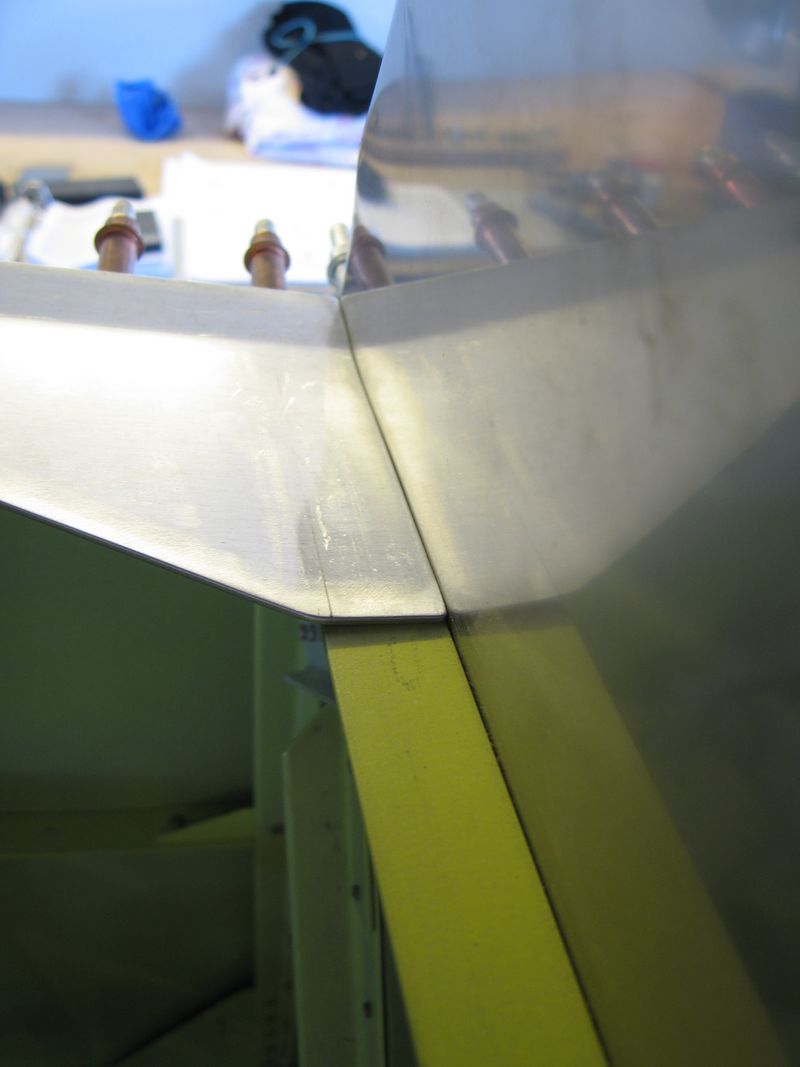

Next up was the longeron to firewall gussets.

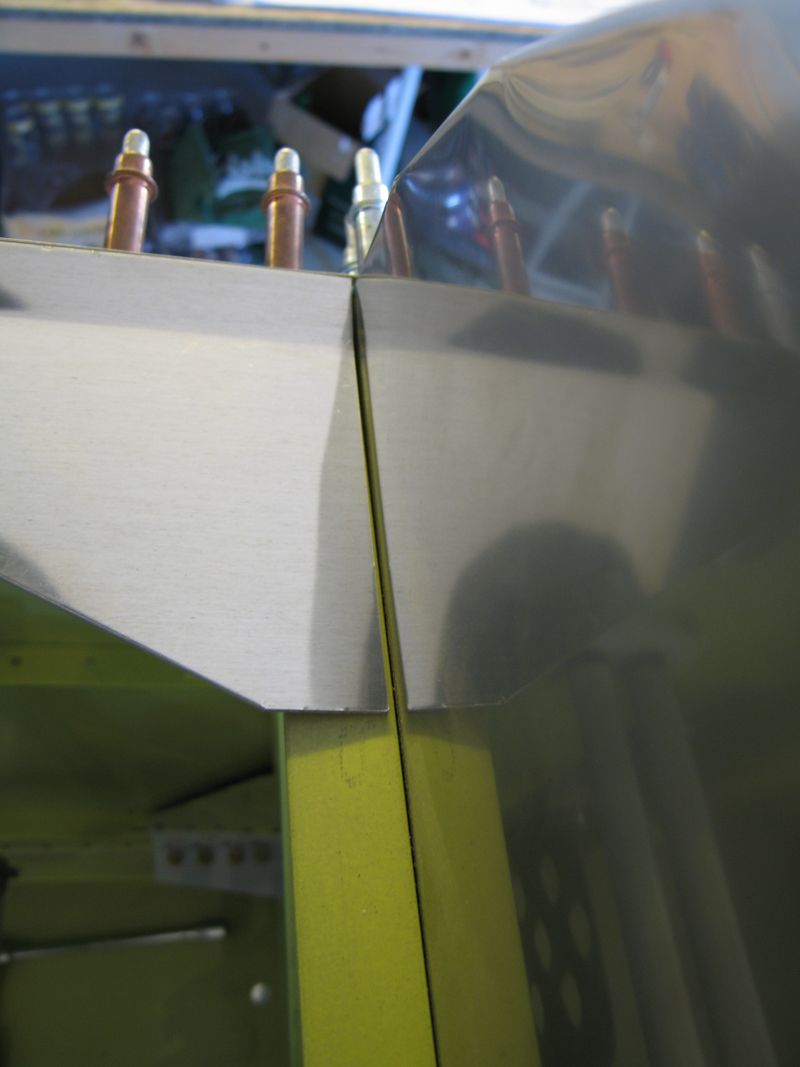

These needed a little trimming and shaping to fit nicely…

…much better! 🙂

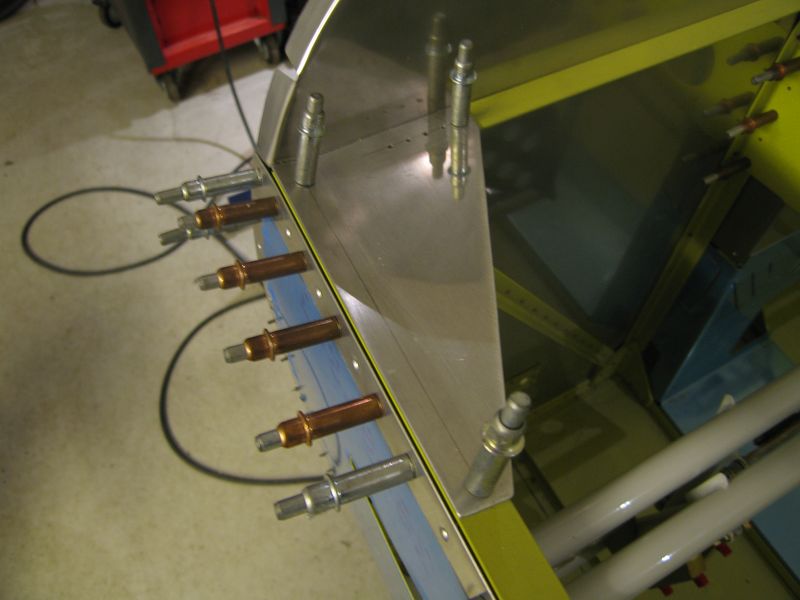

Some of the holes are drilled with #40 for now, I will borrow the rivet spacing fan from work tomorrow to drill the rest.
