April 10, 2008

Finished preparing the rear spars

Category: 3: Wings (Total 309h) — Steffen @ 21:25 — Hours: 3

I made good progress today, finished preparing the parts for the wing rear spars.

First I had to trim the wing-to-fuselage attachment reinforcements. I marked one of the reinforcement plates according to the plans, then clecoed them all together. The clecoes couldn’t quite reach, but I used clecoes from both sides which was fine for keeping them aligned. 🙂

Then I trimmed them with my hacksaw…wings-020-400×533.jpg



Then after a lot of fine trimming with my file, they were all done.

After some edge-deburring, I clecoed them to the spars for matchdrilling.

Then it was time to prepare the aileron bracket reinforcements. First I matchdrilled them, then I traced the hole for the aileron control rod..

I used a unibit to remove most of the material.

Then I finetrimmed the holes with a file, then deburred and polished and the reinforcements were ready.


After that I did the outer aileron bracket reinforcements, the outboard 4 rivets gets countersunk…

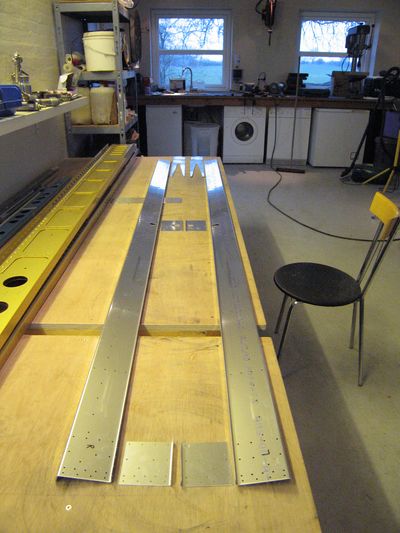

Finally I deburred everything and ran everything over with scotchbrite. Ready for primer..
