May 27, 2015

Fuel pump tubing

Category: Forward Fuselage — Steffen @ 18:38 — Hours: 2.5

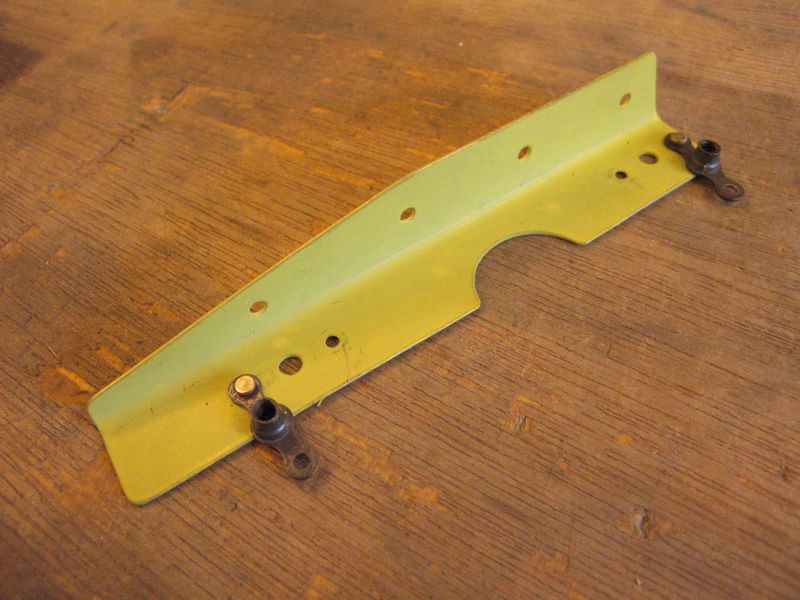

To be able to rivet the forward cover support angles, I had to wait with setting the final rivet in the nutplates.
Fuselage 525 [800x]

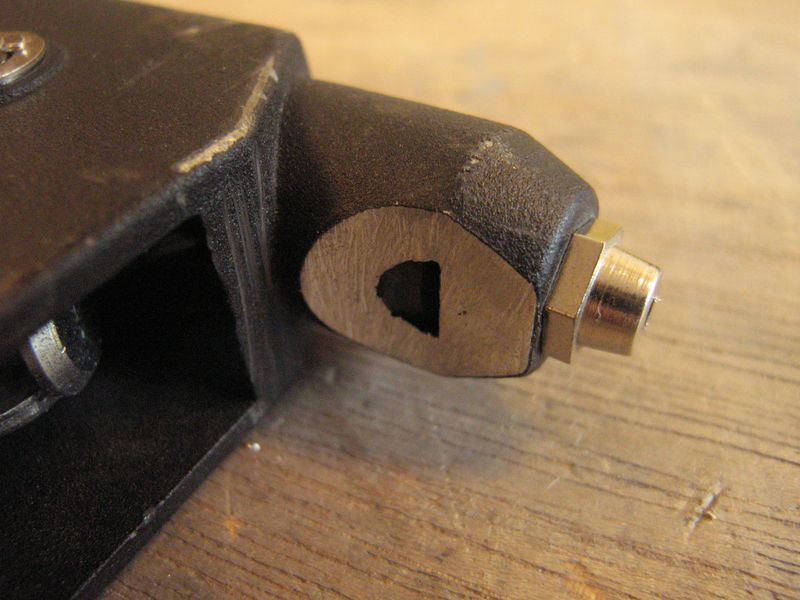

I still had problems getting to these blind rivets, so I altered my rivet puller like this:
Fuselage 526 [800x]

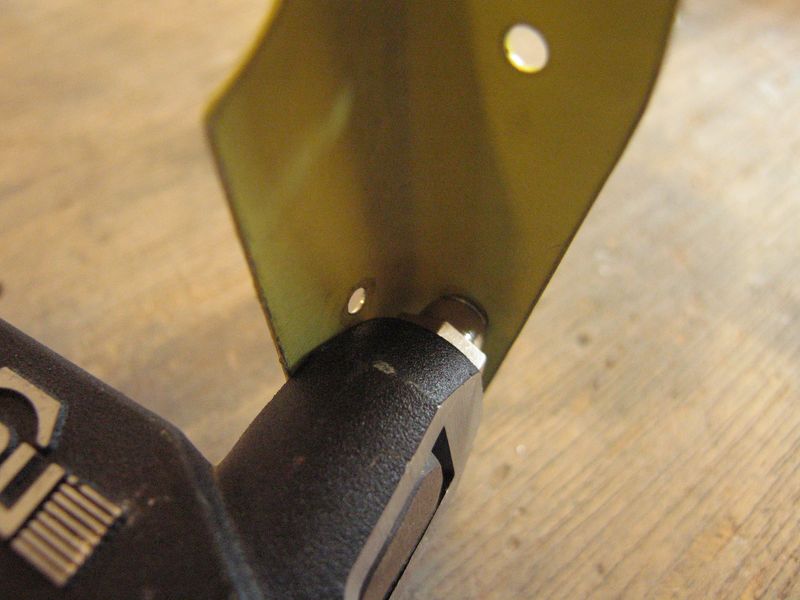

That’s better..
Fuselage 527 [800x]

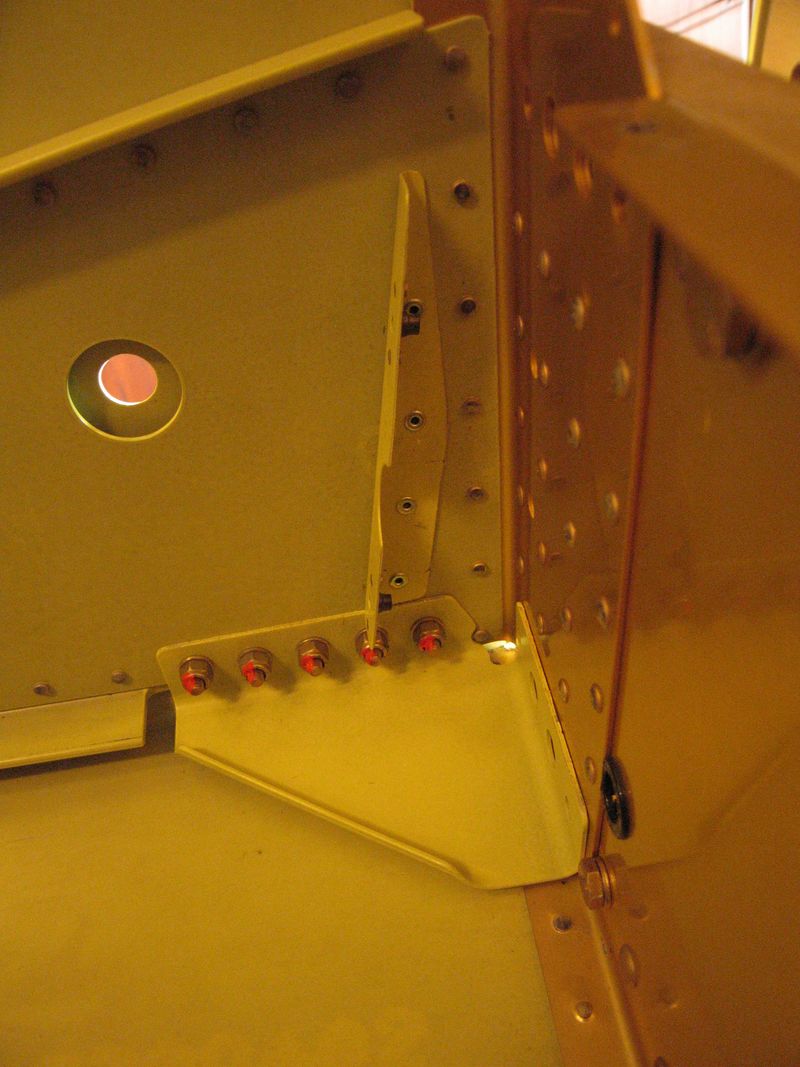

Installed! 🙂
Fuselage 538 [800x]

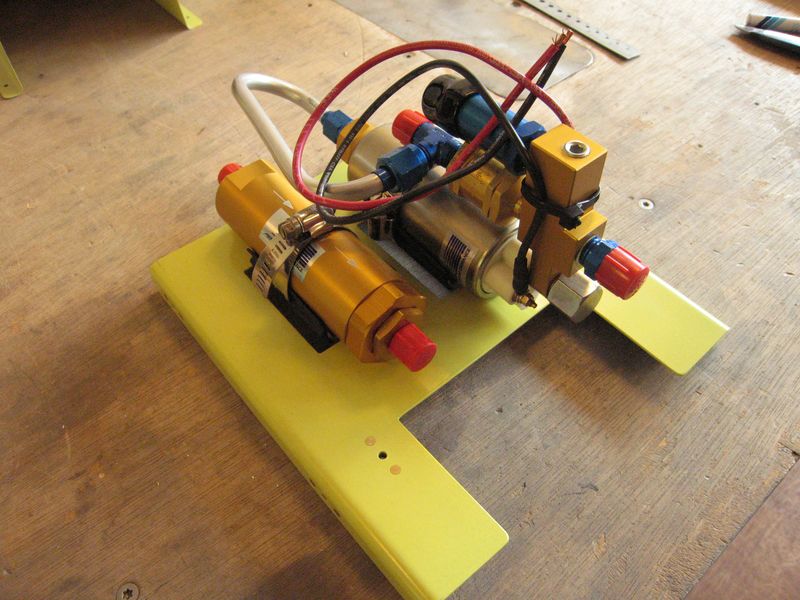

After that I mounted the fuel pump and filter assy.
Fuselage 528 [800x]

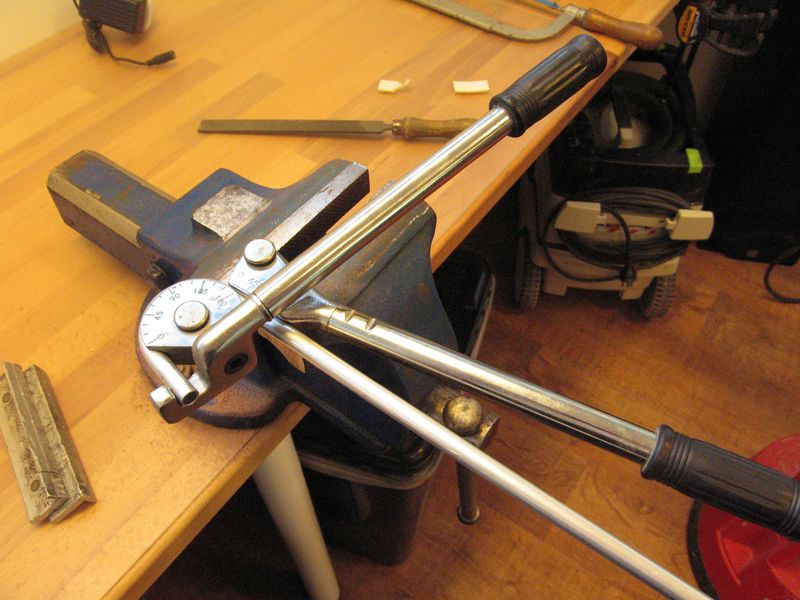

Now I could begin making the fuel lines.
Fuselage 529 [800x]

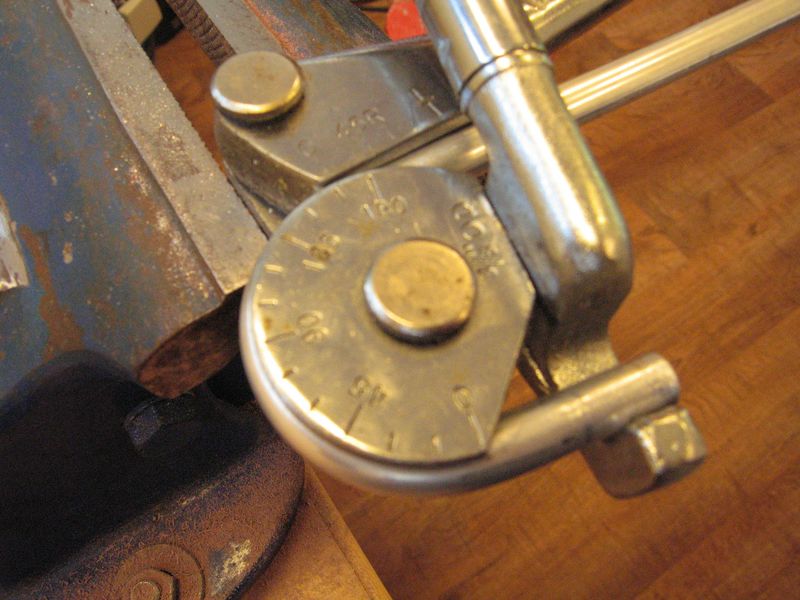

Fuselage 530 [800x]

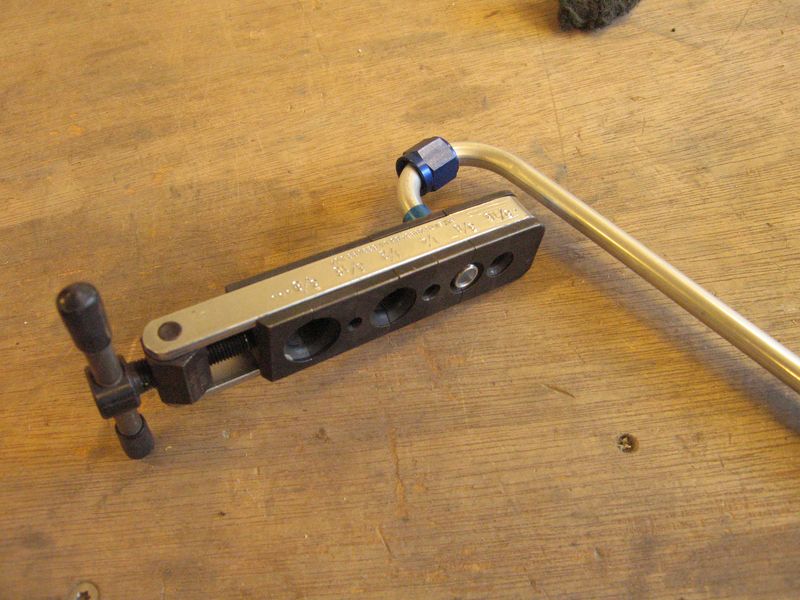

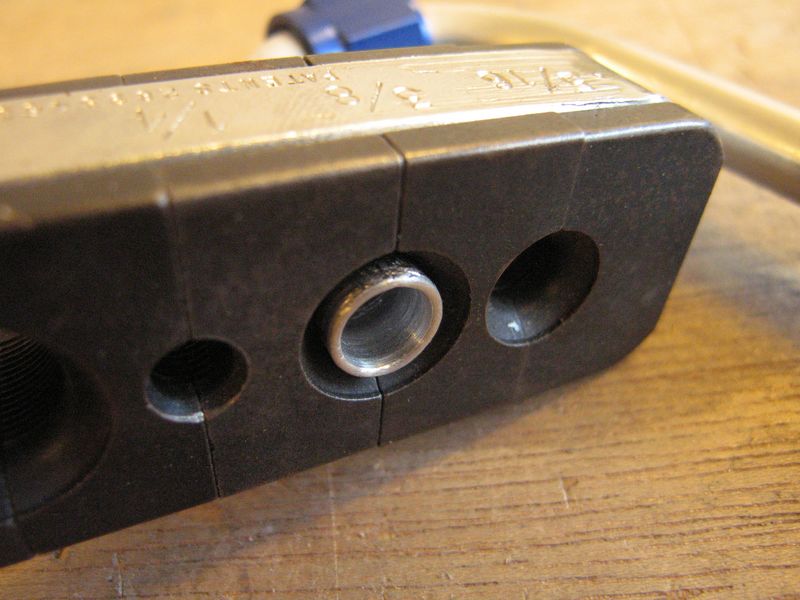

After some deburring, I could make the first flange
Fuselage 531 [800x]

Fuselage 532 [800x]

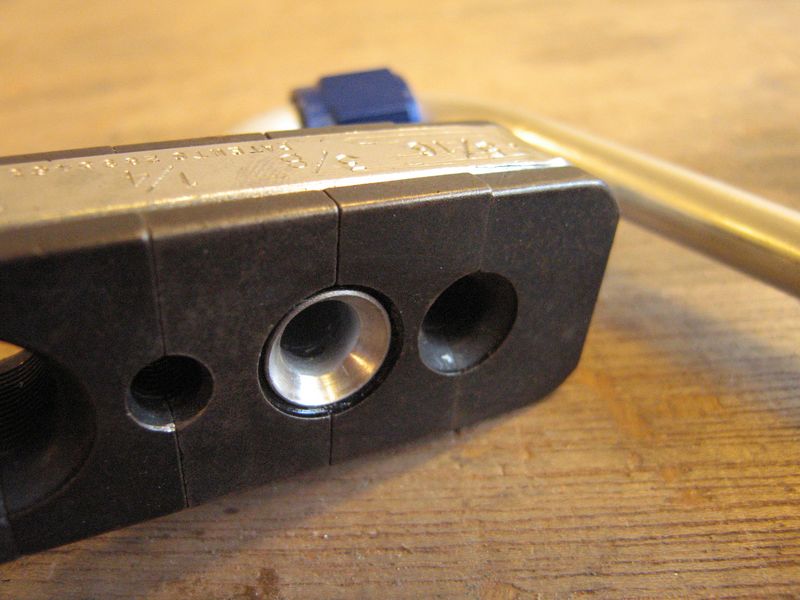

Fuselage 533 [800x]

Fuselage 534 [800x]

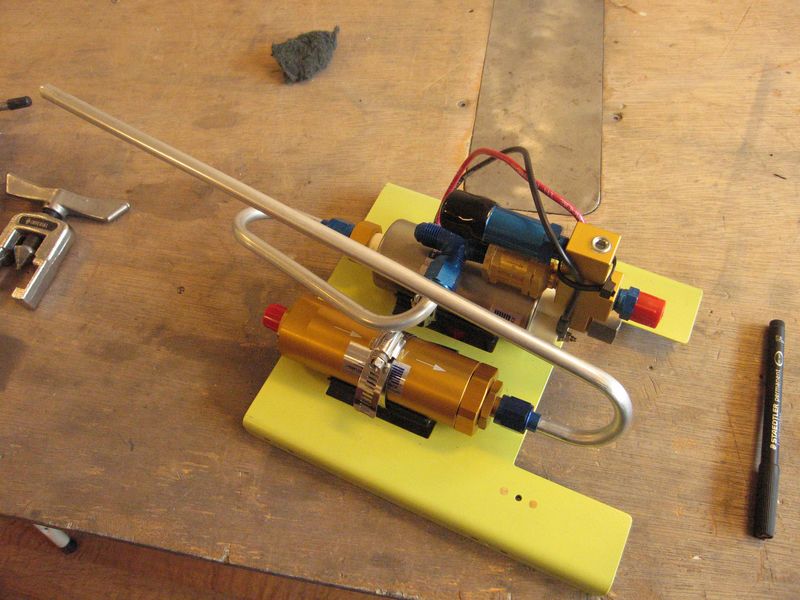

Next bend…

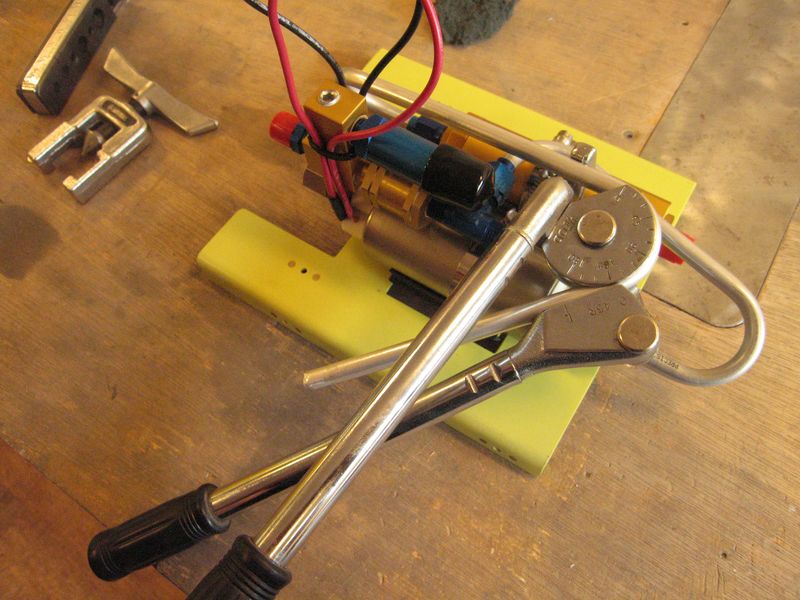

Fuselage 535 [800x]

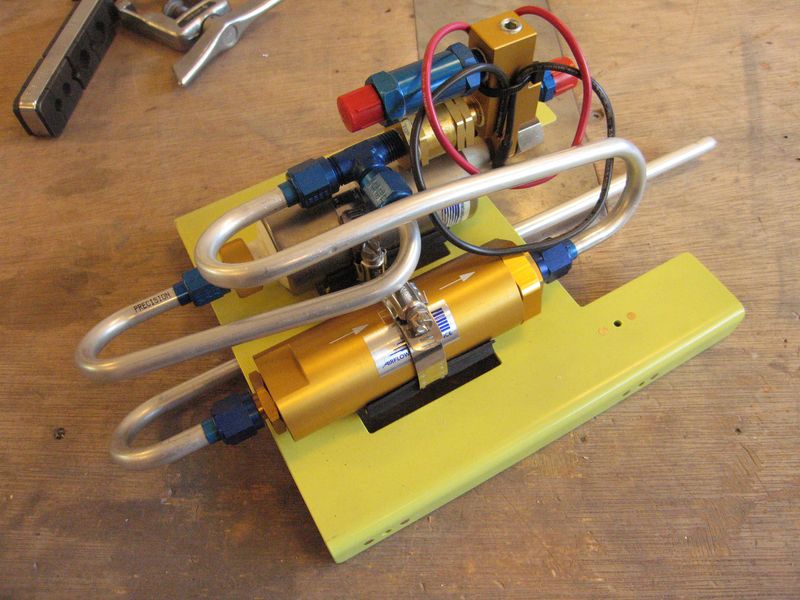

That’s as far as I could get for now.
Fuselage 536 [800x]

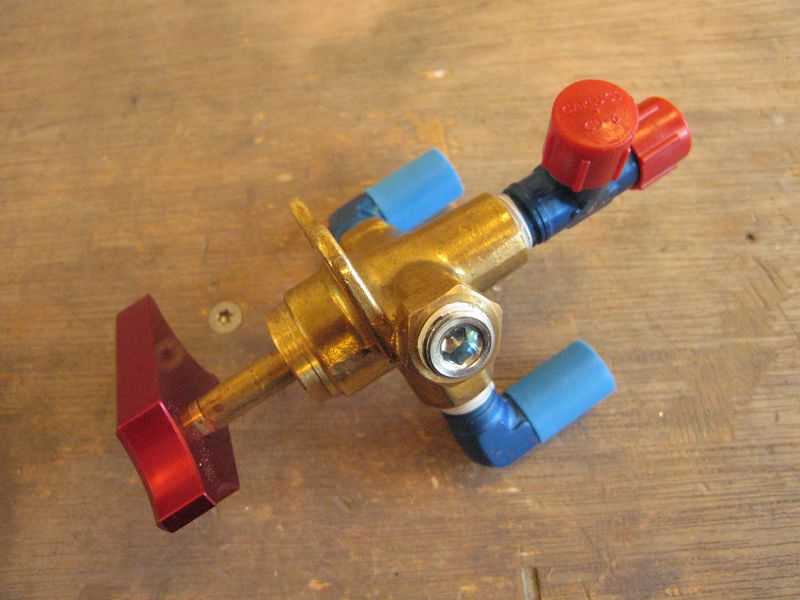

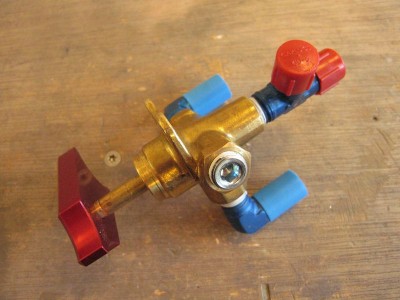

I installed the fittings in the fuel valve, but I need some material to make threaded spacers for the valve.
Fuselage 537 [800x]
