Flap drive, day 2

Category: Forward Fuselage — Steffen @ 20:53 — Hours: 4.5

Today I finished preparing the parts for the flap drive and housing.

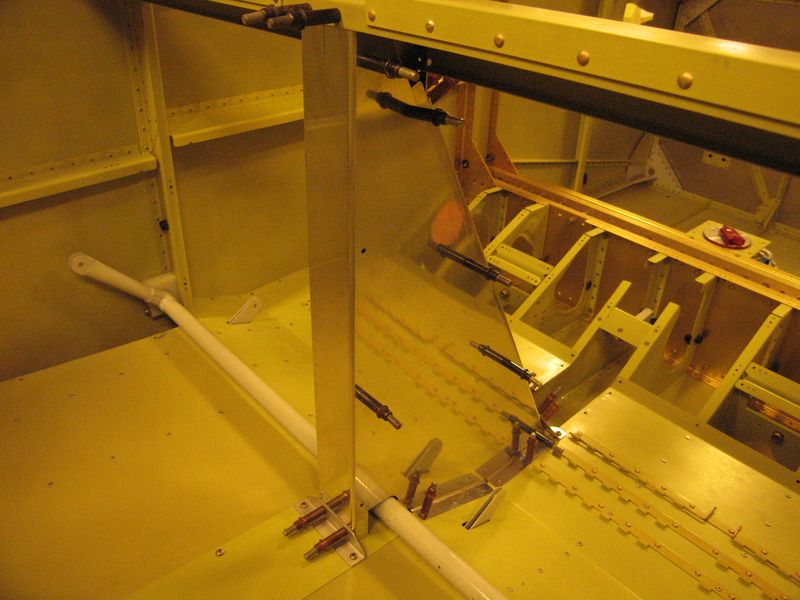

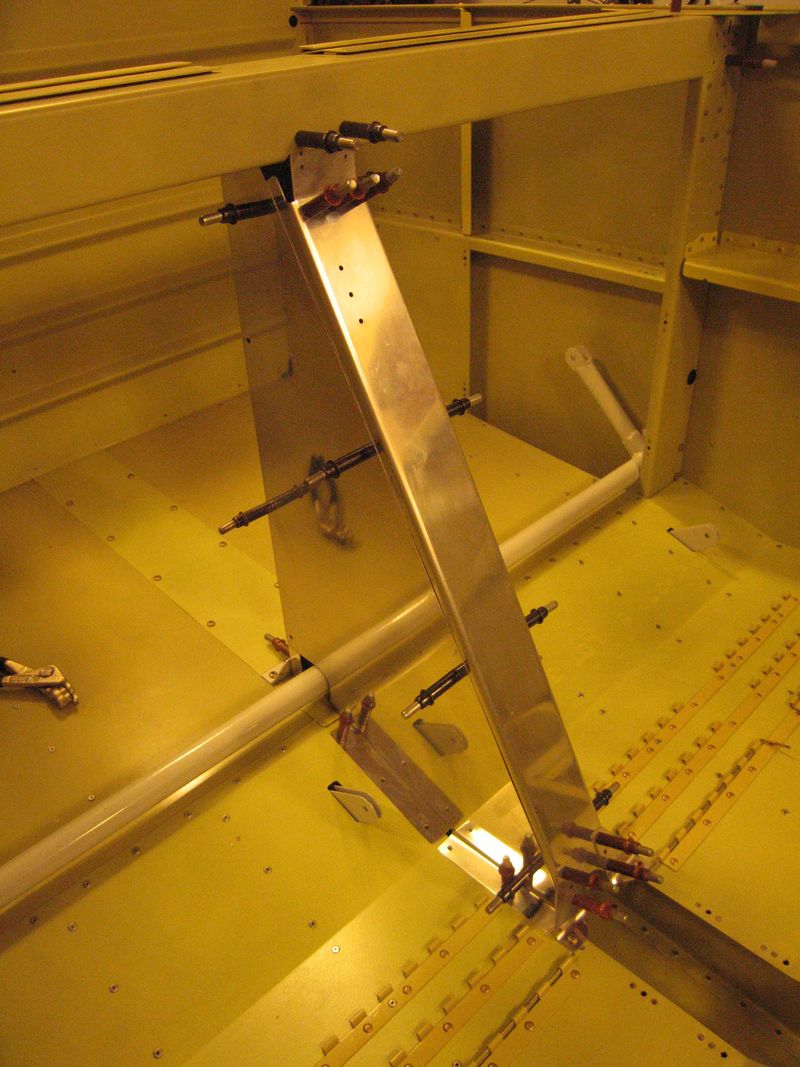

First I clecoed all the covers in place, and matchdrilled them.
Fuselage 575 [800x]

Fuselage 576 [800x]

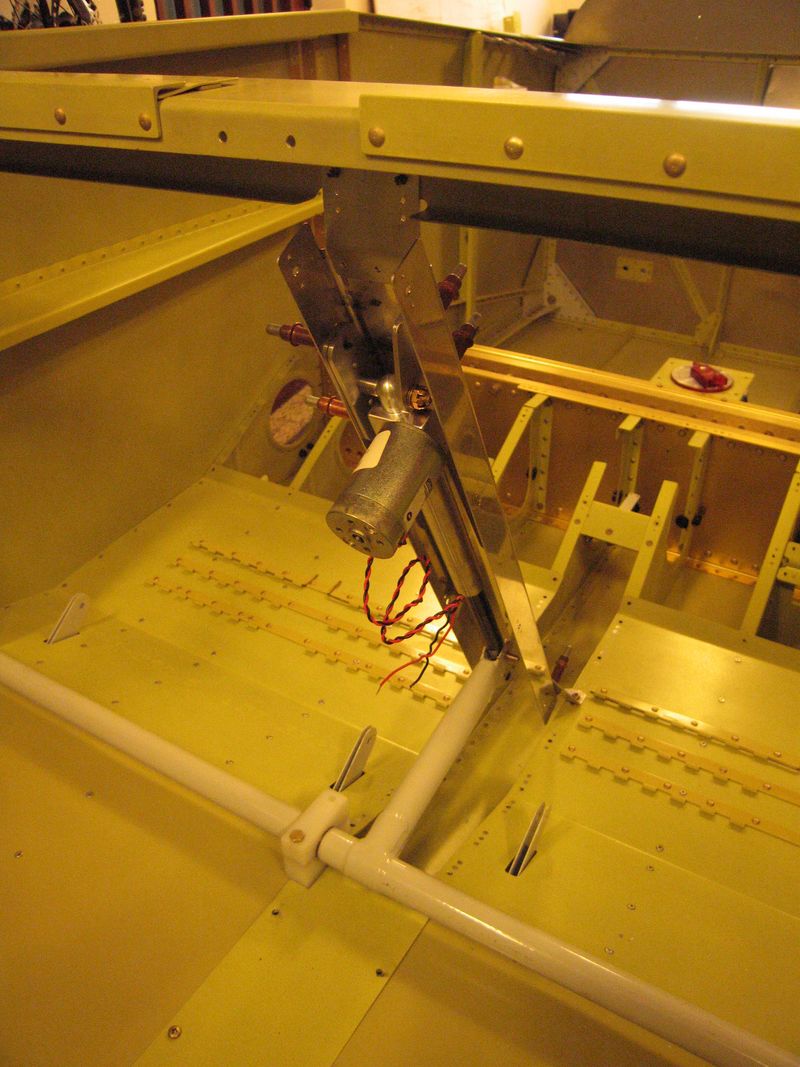

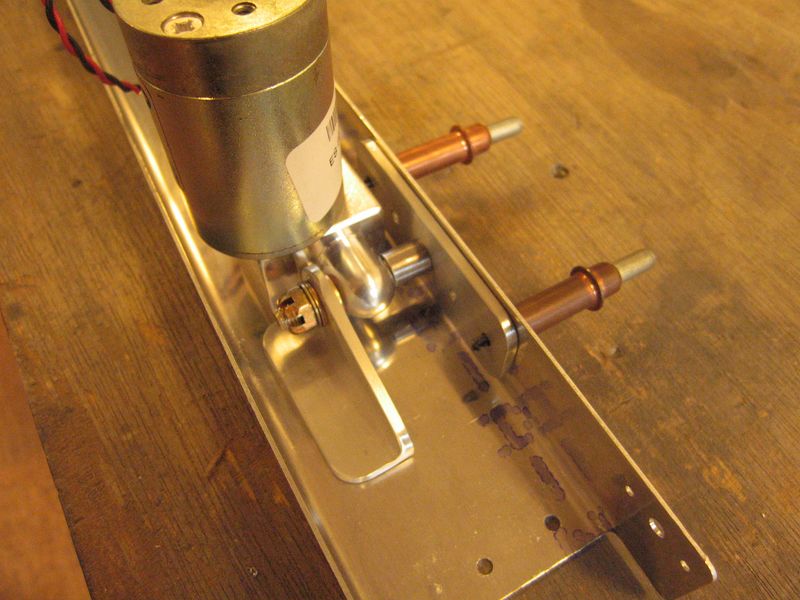

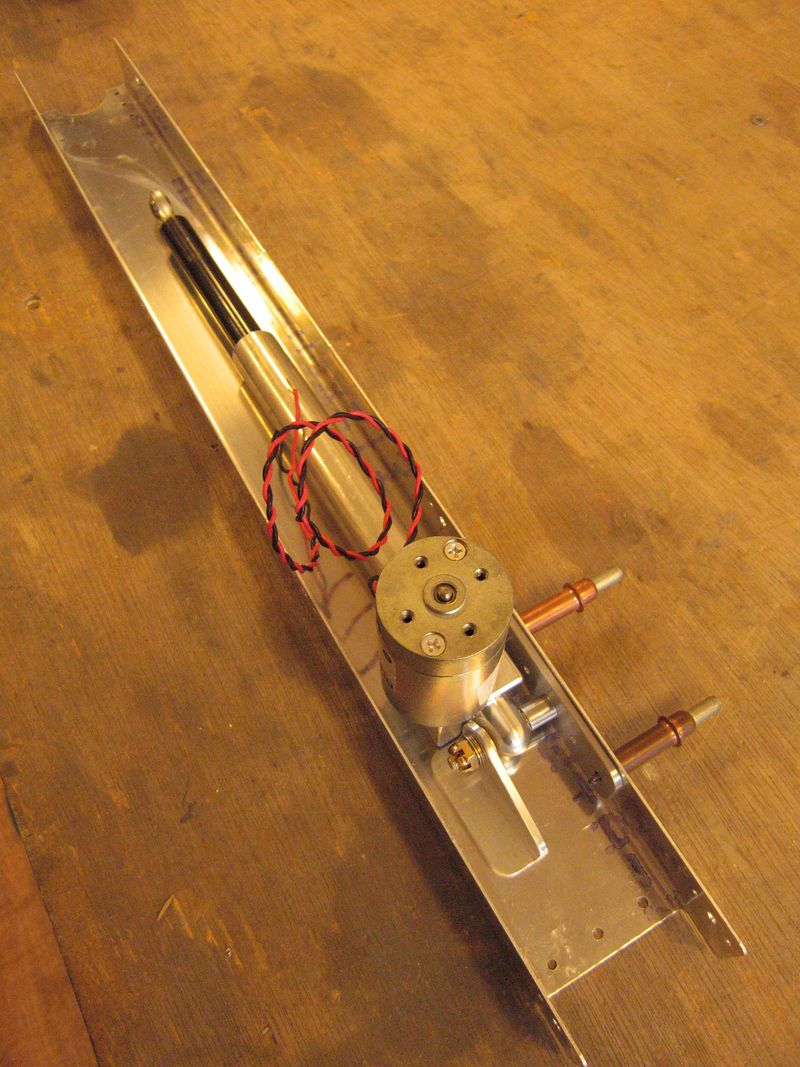

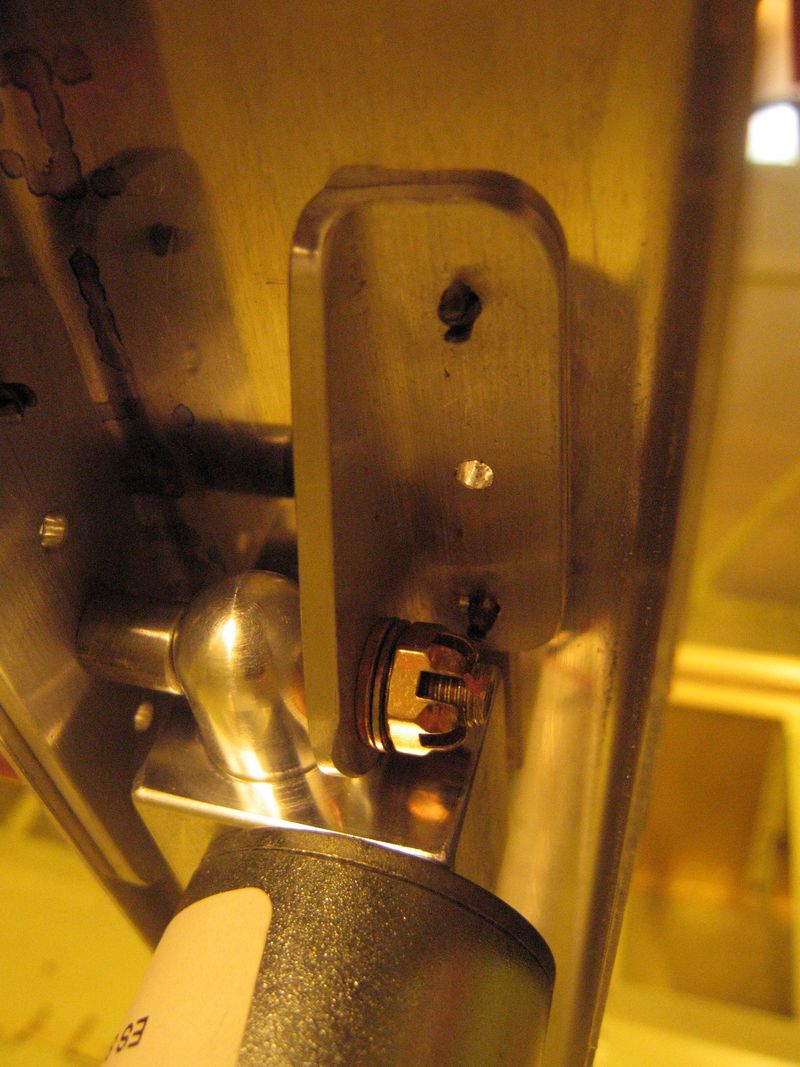

Then I installed the flap drive motor, in order to matchdrill the F-766B angle.
Fuselage 577 [800x]

Fuselage 578 [800x]

Fuselage 579 [800x]

Fuselage 580 [800x]

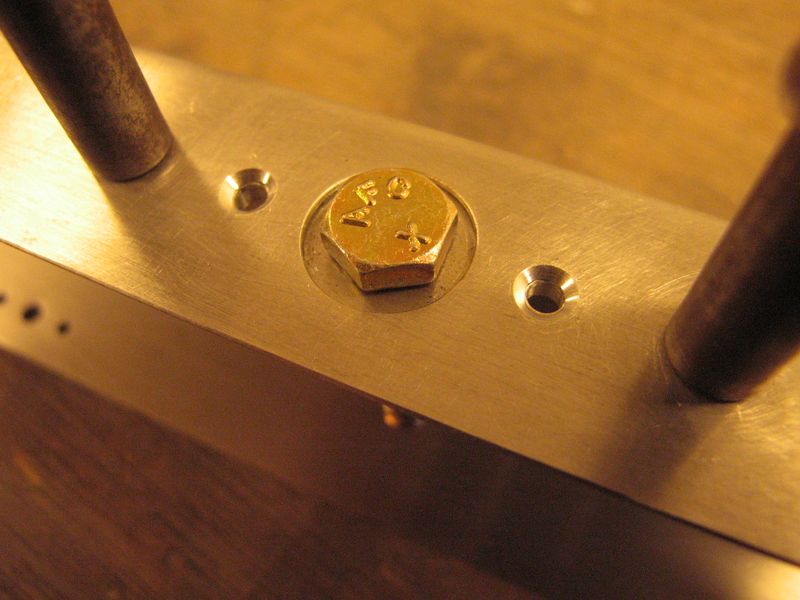

I countersank for the F-766C plate, so the side cover can rest flat against the channel…
Fuselage 582 [800x]

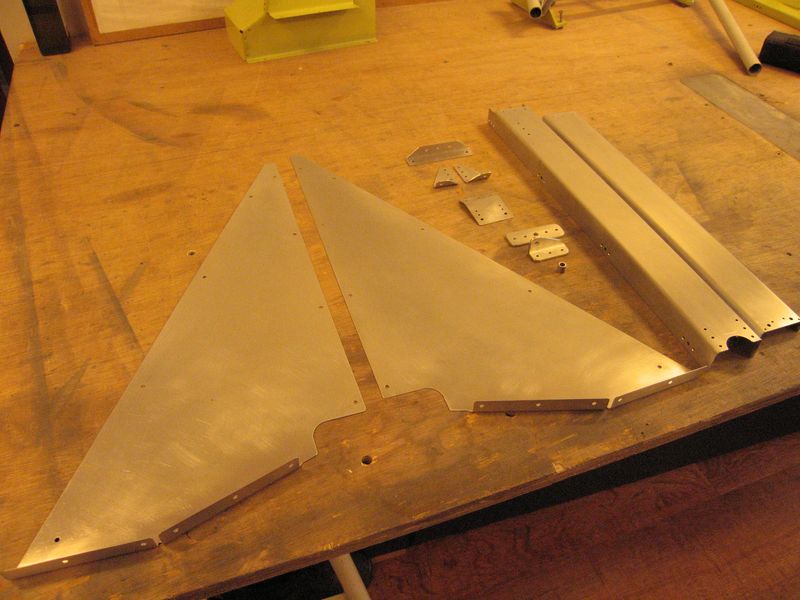

After drilling & countersinking for the nutplates and a lot of edge deburring, the flap drive parts are ready for primer.
Fuselage 581 [800x]
