September 21, 2015

Instrument panel edge angle

Category: Forward Fuselage — Steffen @ 20:26 — Hours: 6

Haven’t had much quality time with my project lately, only put in about 6 hrs during the last month.

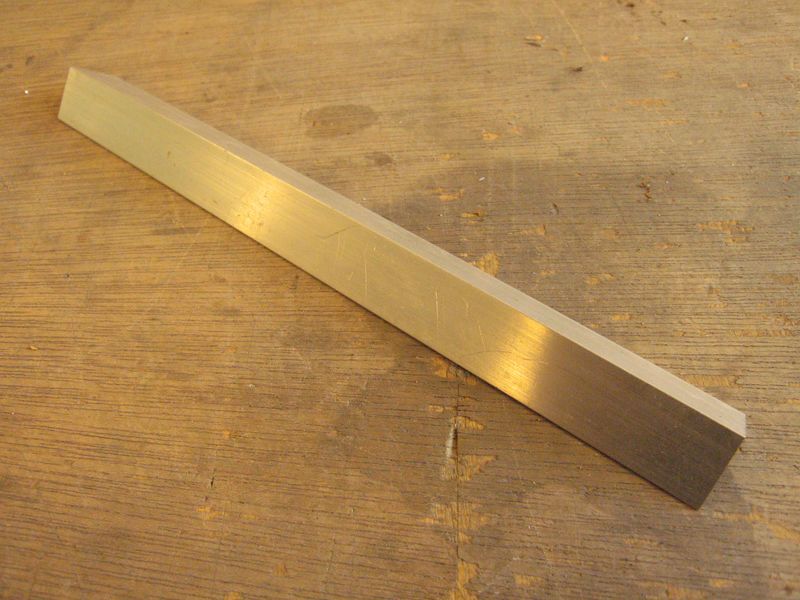

I made this piece of angle…
Fuselage 669 [800x]

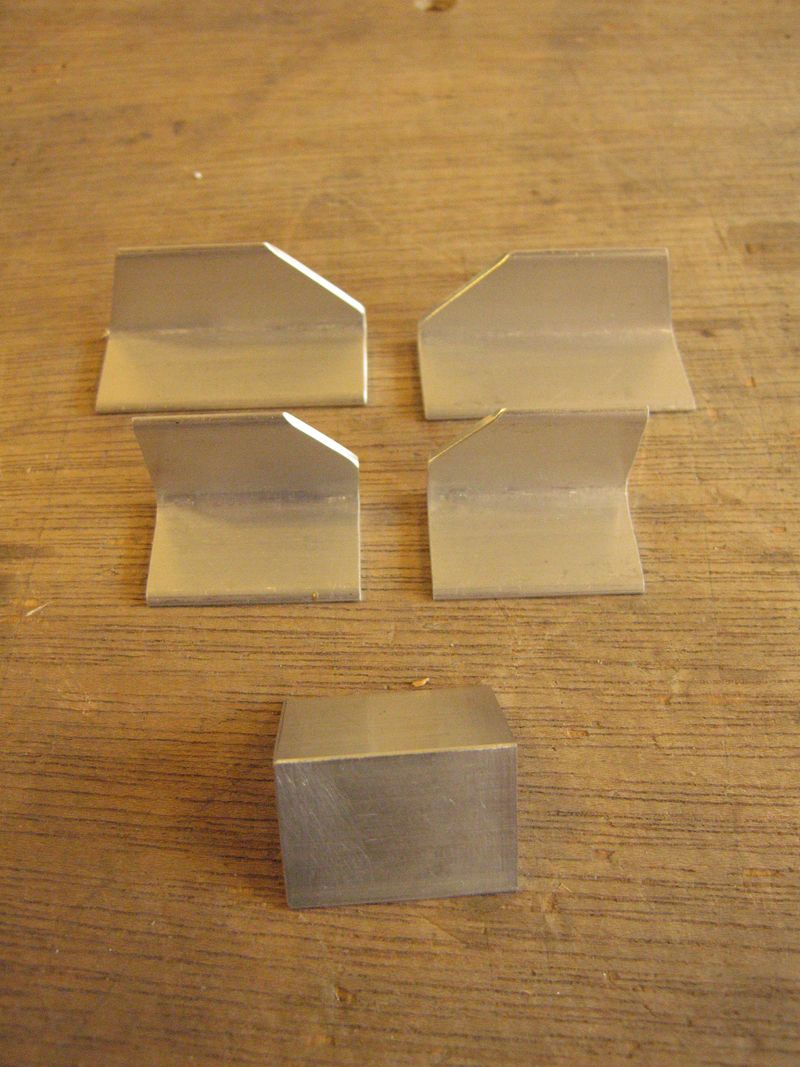

…into these 4 brackets.
Fuselage 670 [800x]

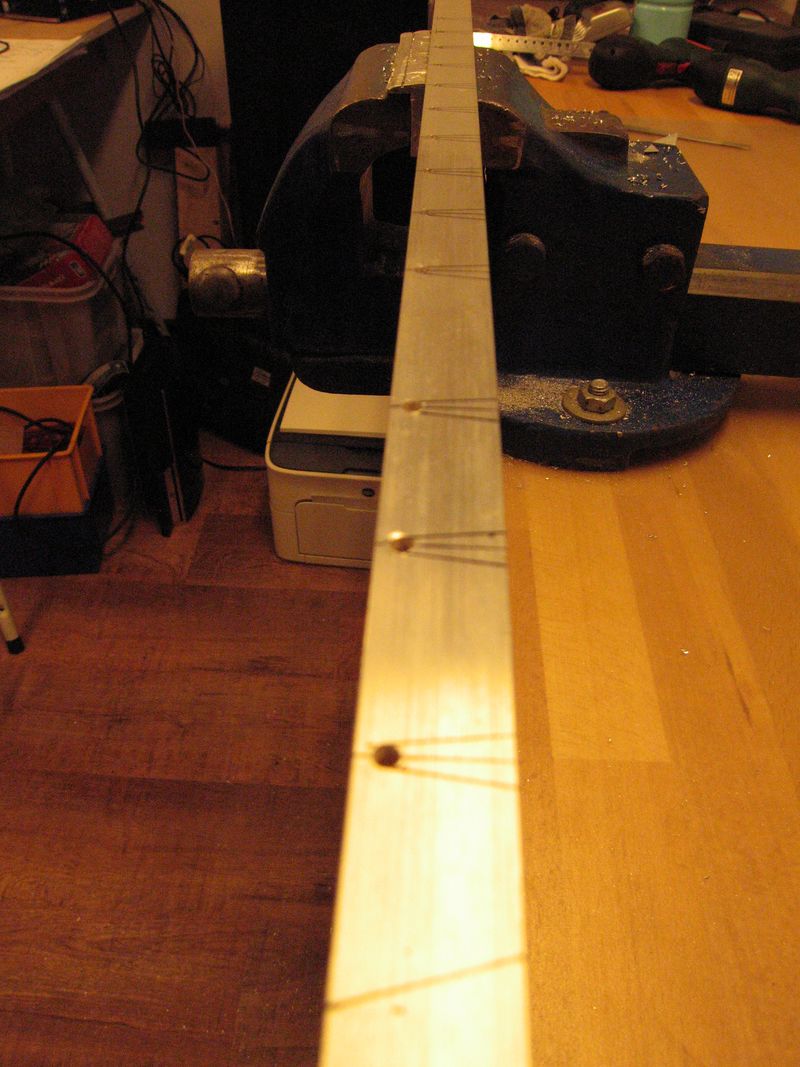

Then I worked on the angle that goes on the upper edge of the instrument panel. I measured out the cuts, drilled the corner holes and drew the 15º cut lines.
Fuselage 671 [800x]

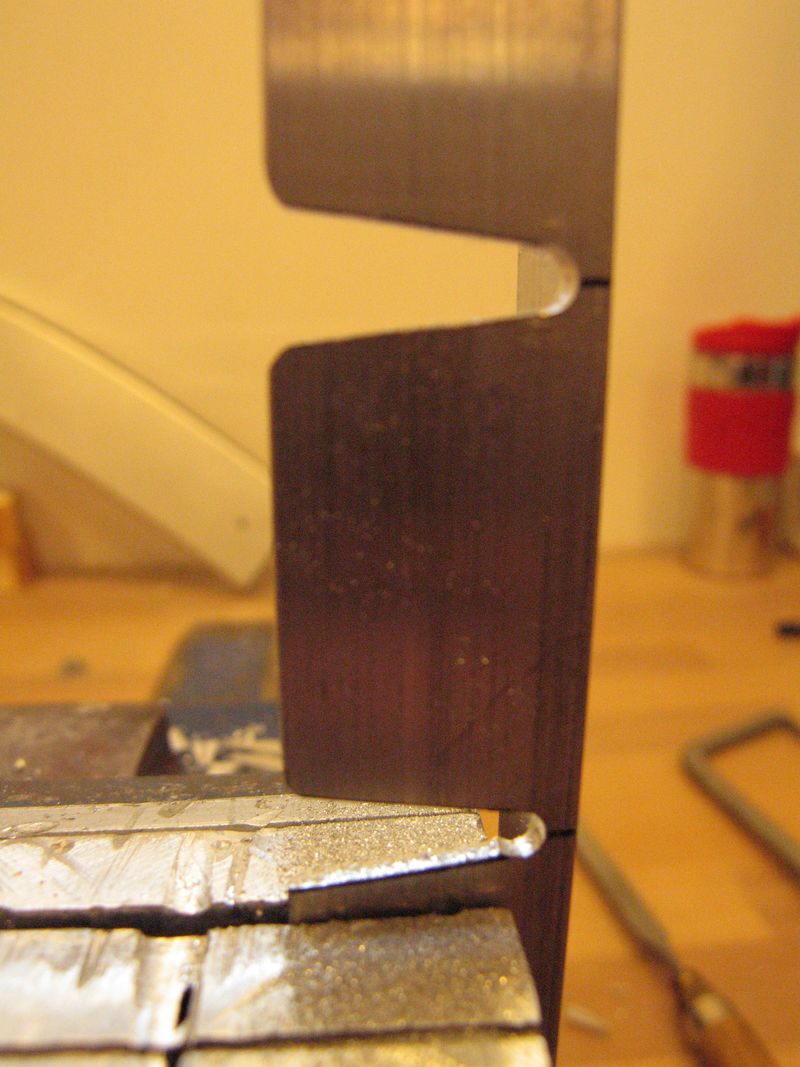

A lot of cutting & filing was needed to make the angle look nice…
Fuselage 672 [800x]

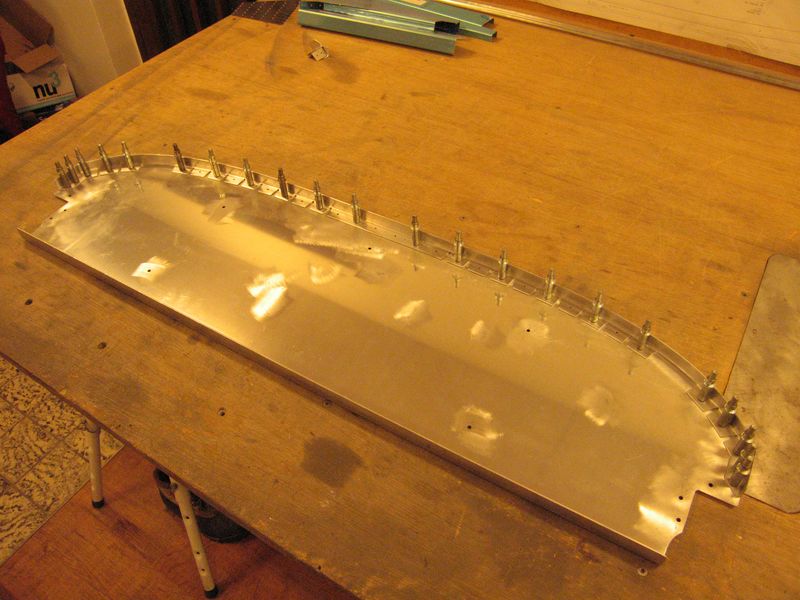

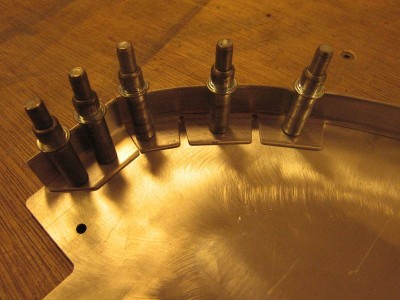

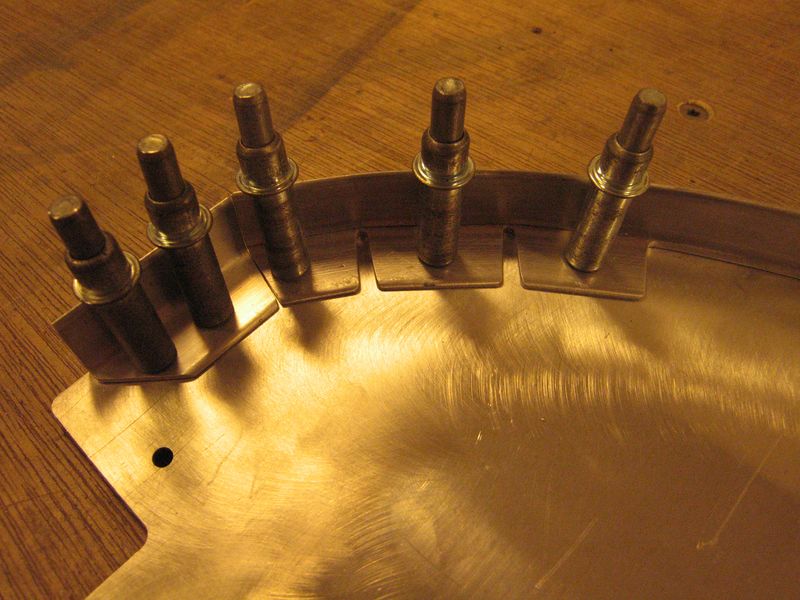

Finally I matchdrilled it to the instrument panel.
Fuselage 673 [800x]

Fuselage 674 [800x]
