October 26, 2015

Forward canopy decks

Category: Forward Fuselage — Steffen @ 21:39 — Hours: 5.25

Worked a bit more on the forward fuselage yesterday and tonight.

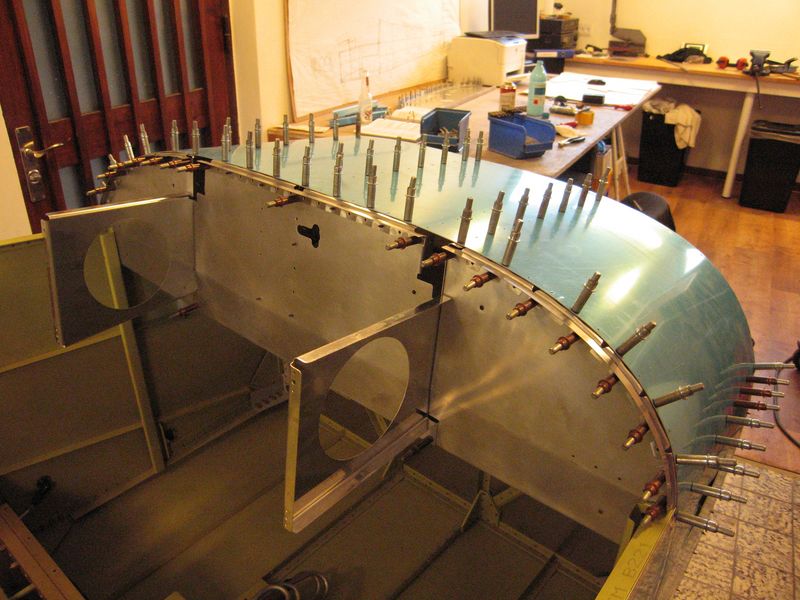

First I clecoed the subpanel back in, and installed the forward top skin.
Fuselage 688 [800x]

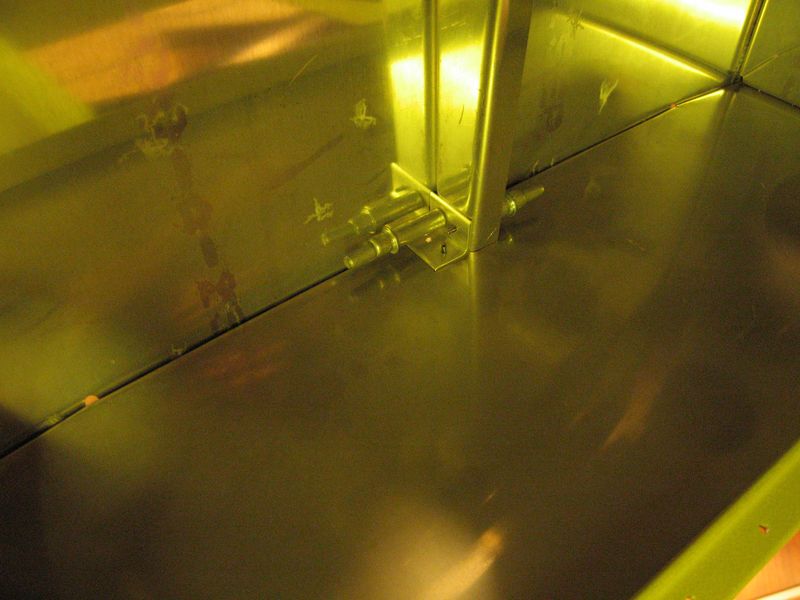

With this in place, I could align and drill the centre support channel the angle that attaches it to the firewall.
Fuselage 689 [800x]

Fuselage 690 [800x]

Fuselage 691 [800x]

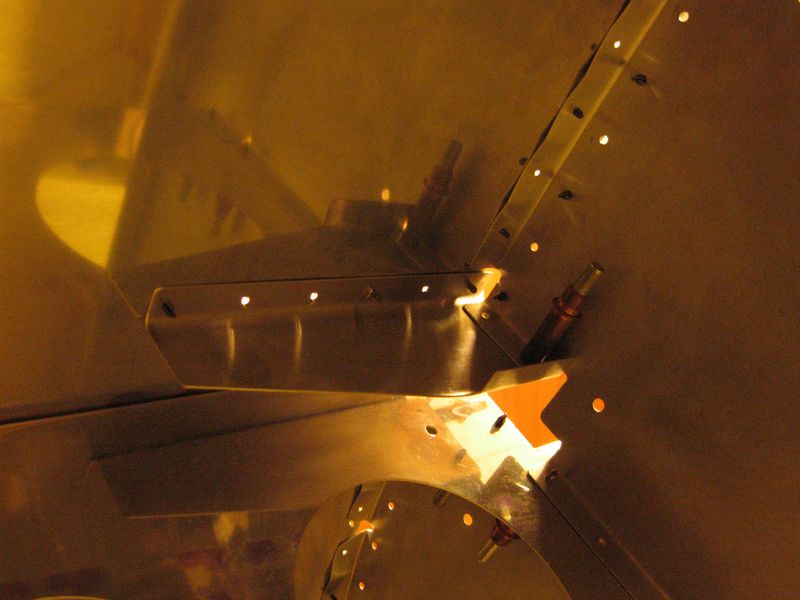

..then the outboard support channels.
Fuselage 697 [800x]

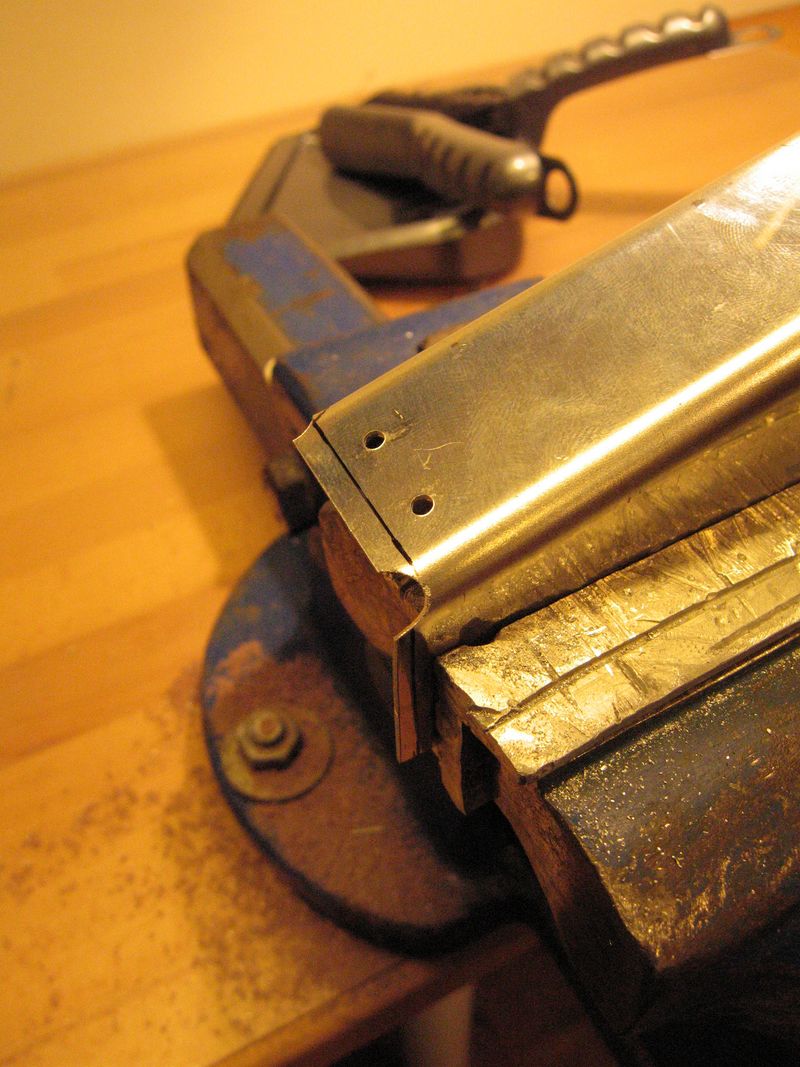

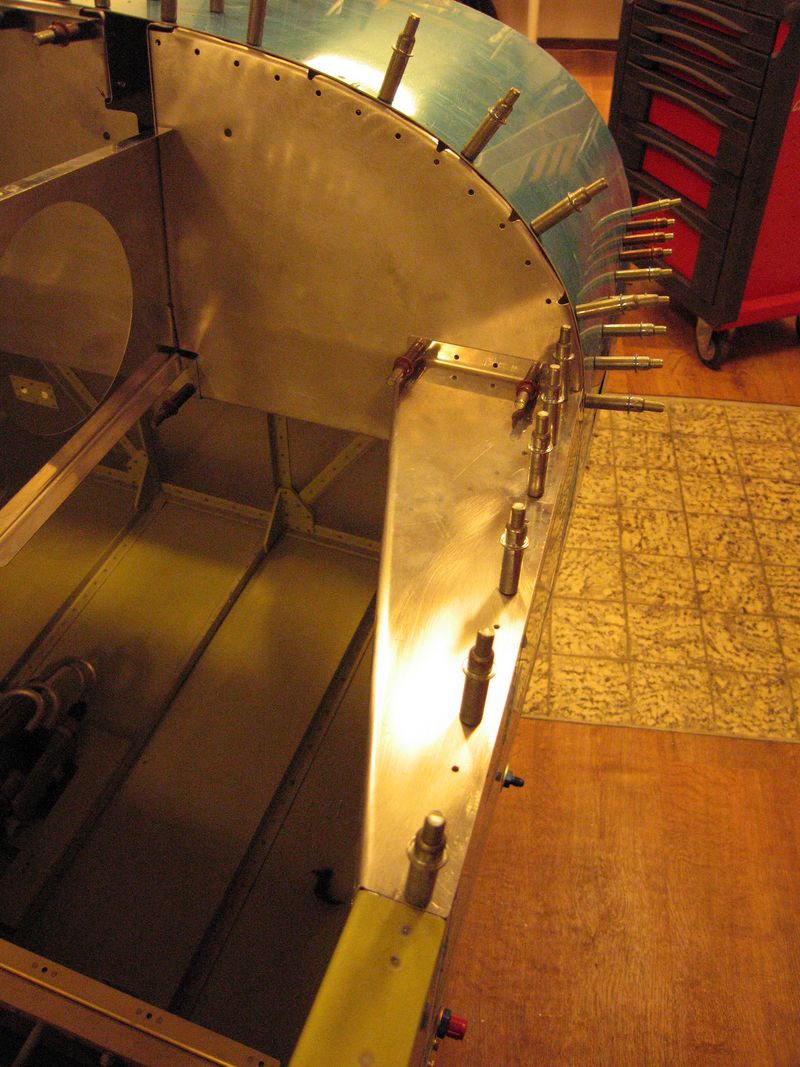

Next was the forward canopy decks. These had to be trimmed and adjusted a bit..
Fuselage 692 [800x]

Fuselage 693 [800x]

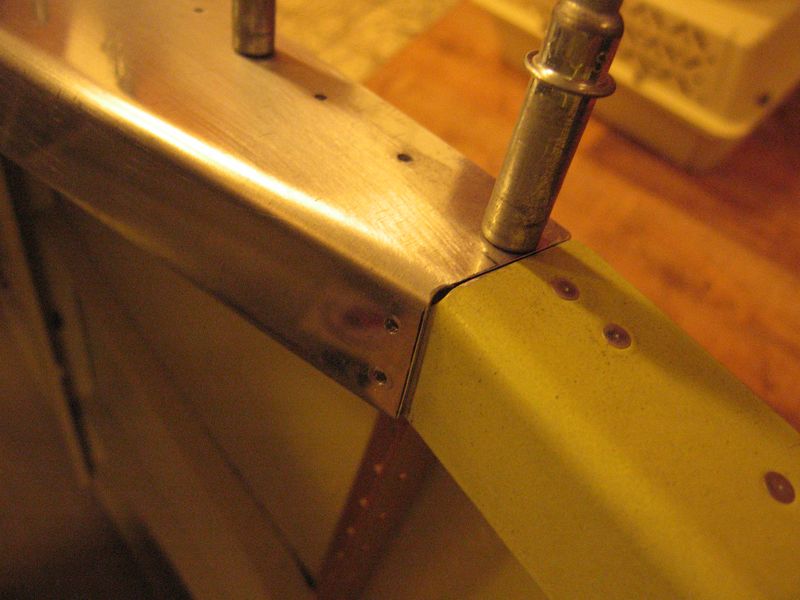

    Fuselage 694 [800x]

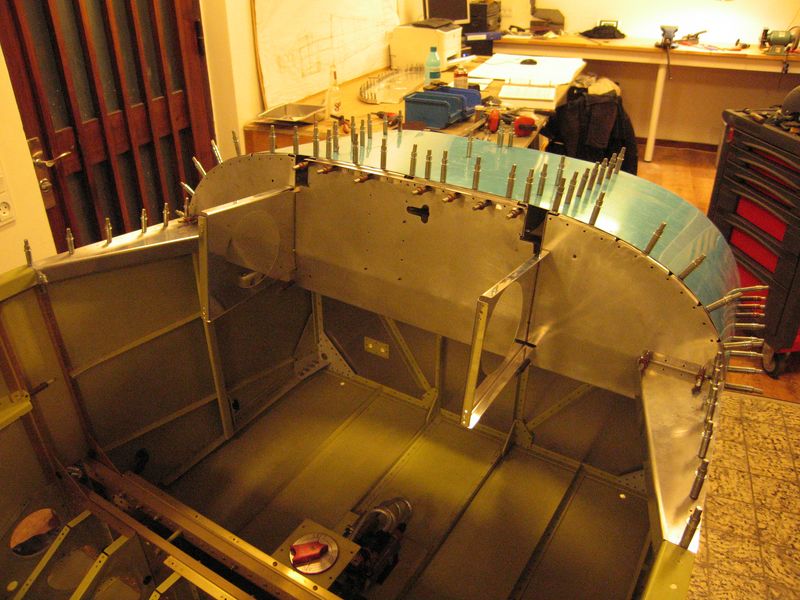

Both decks in place.
Fuselage 695 [800x]

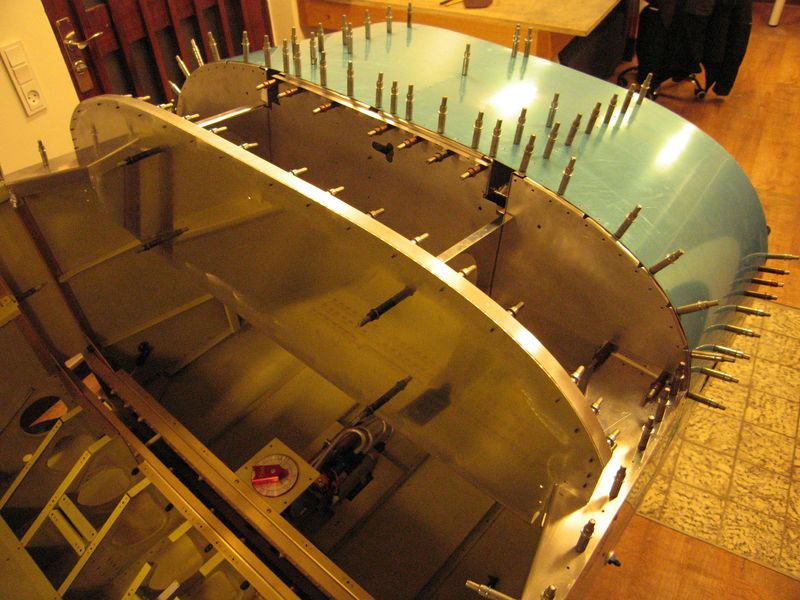

Finally I clecoed the instrument panel in place. Looks awesome! 🙂 Fuselage 696 [800x]
