I finally made it back to the shop for a few hours today. It felt great! 😀

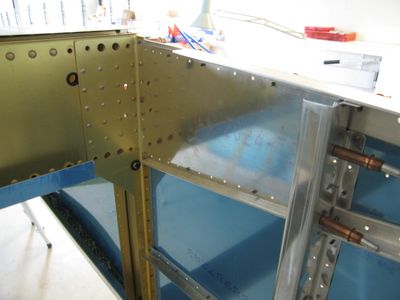

I started out by reinstalling the Gear Attach Webs and the F-902 Bulkheads.
Fuselage 093 [400x]

The .040 shims in place…Fuselage 094 [400x]

Then I started fabricating the F-796B Shims, to me they look more like angles!!! 🙂
I used the pieces that I trimmed of the fuselage longerons for this.
Fuselage 095 [400x]

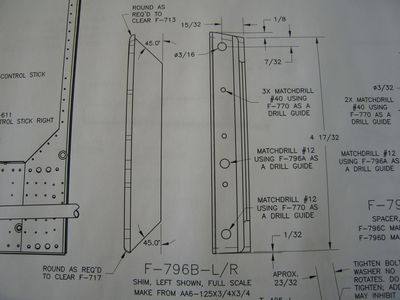

This is how the plans look for these…
Fuselage 096 [400x]

After a lot of trimming this is what I ended up with. I had to trim about 1/8″ more of them to make them fit. It seems to be a common problem that the plans are a bit off on these. Ah well, it’s to the safe side! 🙂
Fuselage 097 [400x]

Fuselage 099 [400x]

Next I fabricated the F-796B and C Spacers.
Fuselage 100 [400x]

Fuselage 101 [400x]

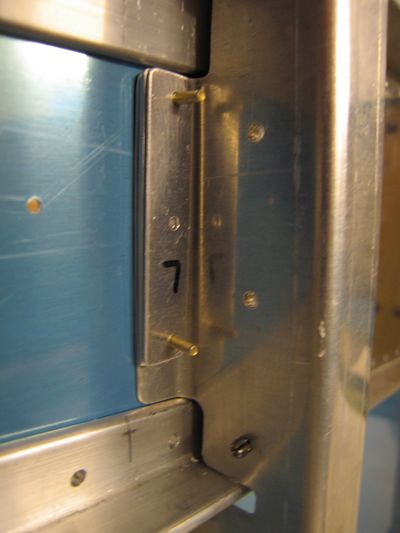

I used Brad Olivers trick for holding them in place.
Fuselage 102 [400x]

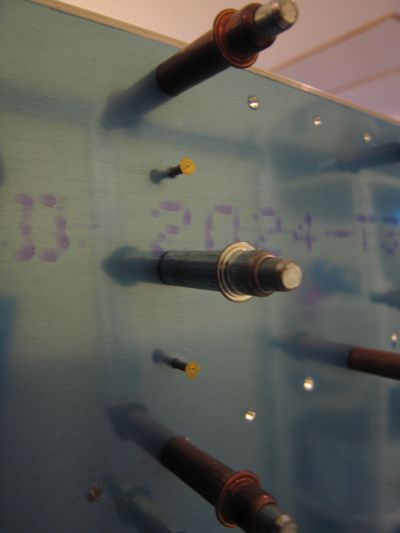

I thought I was supposed to fit the steel tank attach plate now, but the plans didn’t mention them in the current chapter. After reading on for a bit, I found them in the wing installation chapter. It makes sense to me waiting until then, so I can make the neccessary final adjustment. Next up is the rudder pedals. How cool is that?! 😀
Fuselage 103 [400x]
