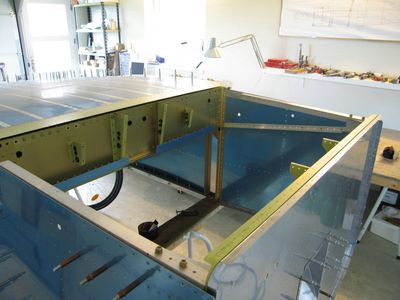

The most amazing thing happened today; I actually managed to put in some quality time with my RV. 😉
My gosh it’s been a long time, I can’t even remember when the last time was. One of the reasons for the delays this spring, has been the top wish in the wife-do-list, a garden pavillon. I finally finished that a few weeks ago.
So, back to the RV!

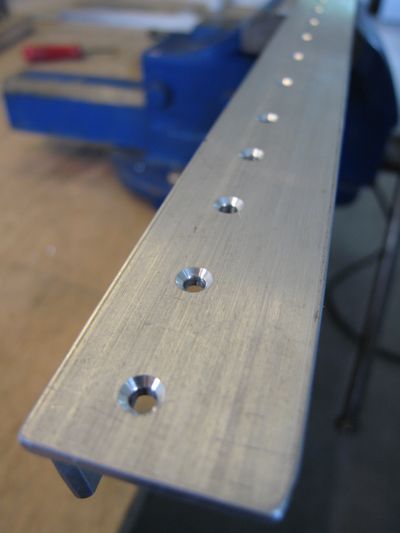

After studying the plans for a while, and figuring out how to continue, I removed the

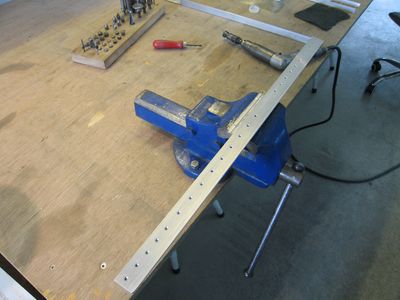

F-713 Auxiliary Longerons and the F-717 lower longerons, then deburred and countersunk them.
NOTE: remember not to countersink the F-713 Auxiliary Longerons, where the bolt for the fuel tank attach brackets goes!!!
The longerons and gear attach webs ready for primer…

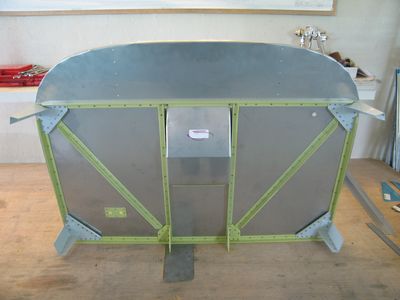

Then I removed the firewall.

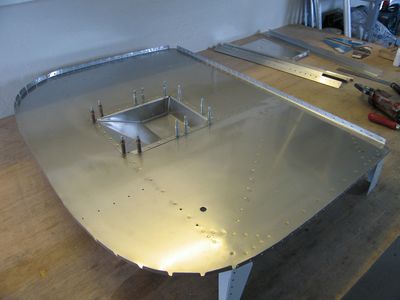

..deburring holes!

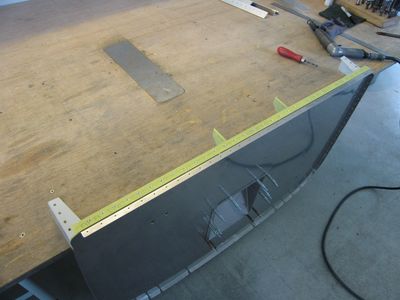

Then countersinking the lower firewall stiffener.

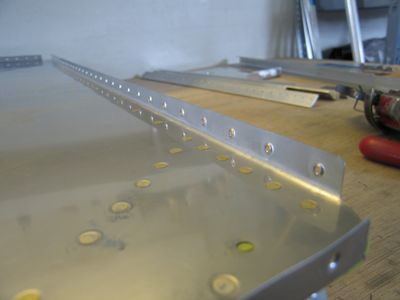

Finally I dimpled the stainless steel flanges. I used my pneumatic squeezer.

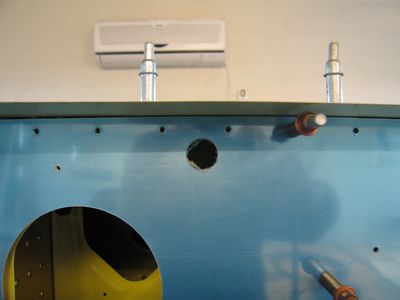

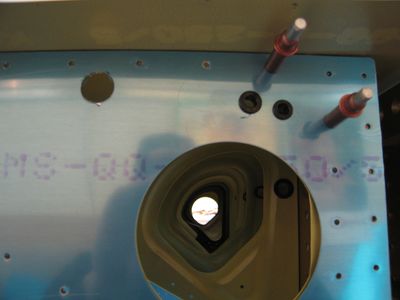

Before removing the side skins, I had to make the holes for the wing wiring conduit and pitot tubing. I went and made a template from the wing to position the conduit hole.
The position of the pitot tubing is a little off, I think I will reroute the tubes between the 2 inner wing ribs, to make them line up with theses holes. There will be 2 pitot lines, because I plan on installing a AOA pitot system.

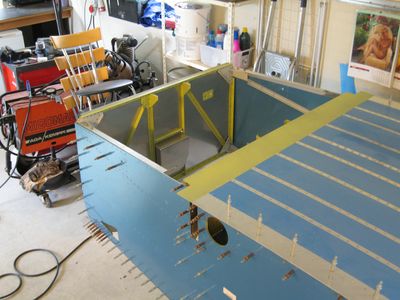

Finally I could remove the side skins.

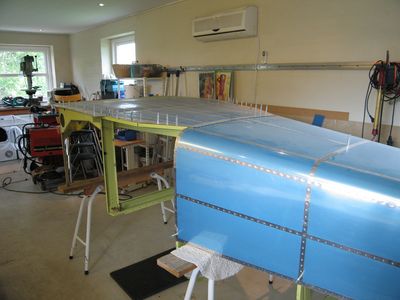

My neighbour dropped by, so I had him help me lift the center fuselage of the aft fuselage.
That was all for today, I plan on priming the ready parts tomorrow.
