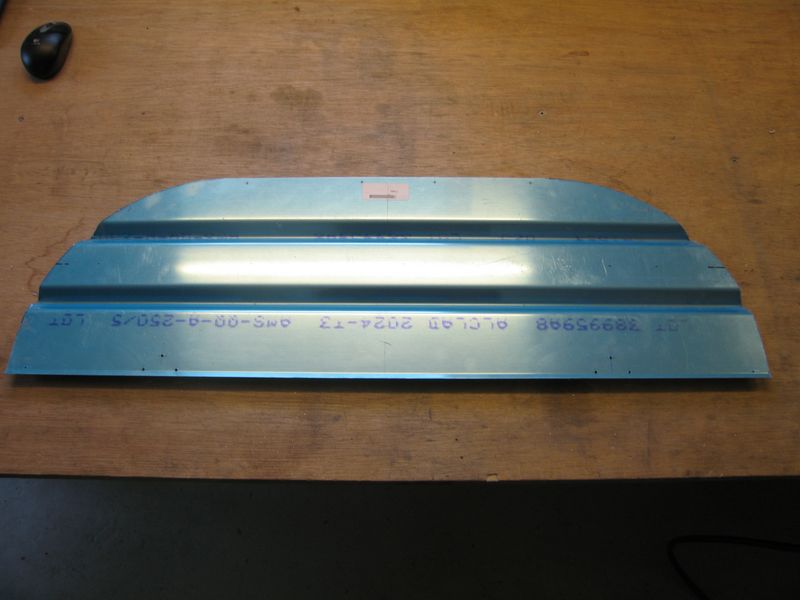

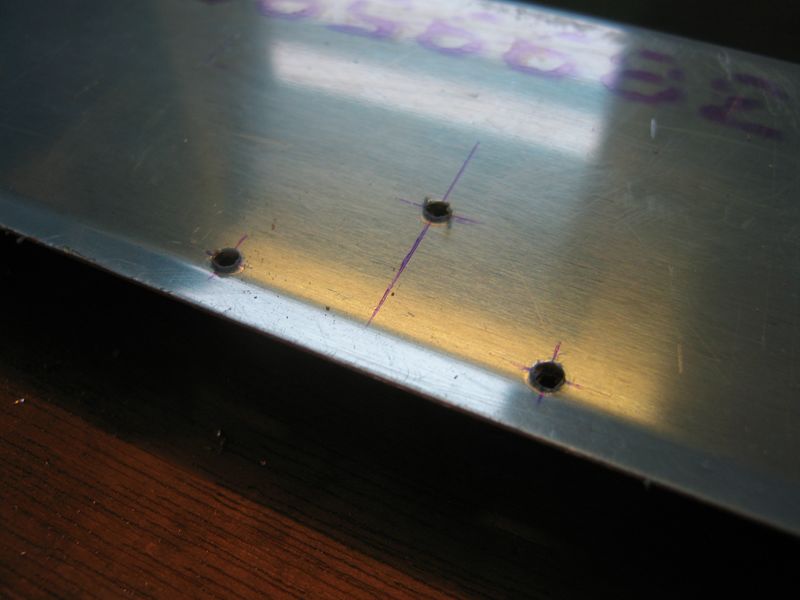

Besides cleaning up a bit in the garage – again!! – I worked a bit on the baggage bulkhead. First I marked and pilotdrilled the screw holes of the upper bulkhead.
Also marked the notch where the shoulder harness cable will pass through..

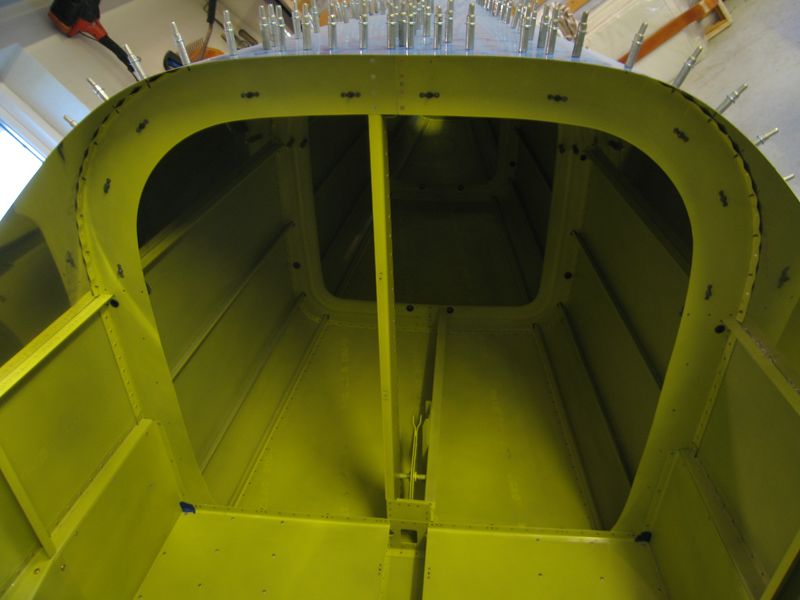

Then I taped the upper bulkhead in place, rechecked alignment and matchdrilled the screw holes to the F-706 bulkhead.
I enlarged the holes to #30, so I could use cleco’s to install nutplates as drill guides.

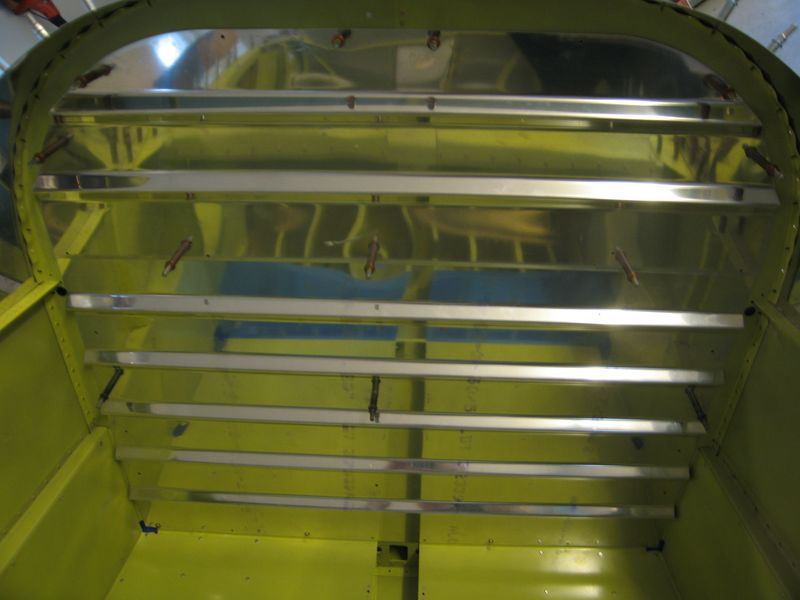

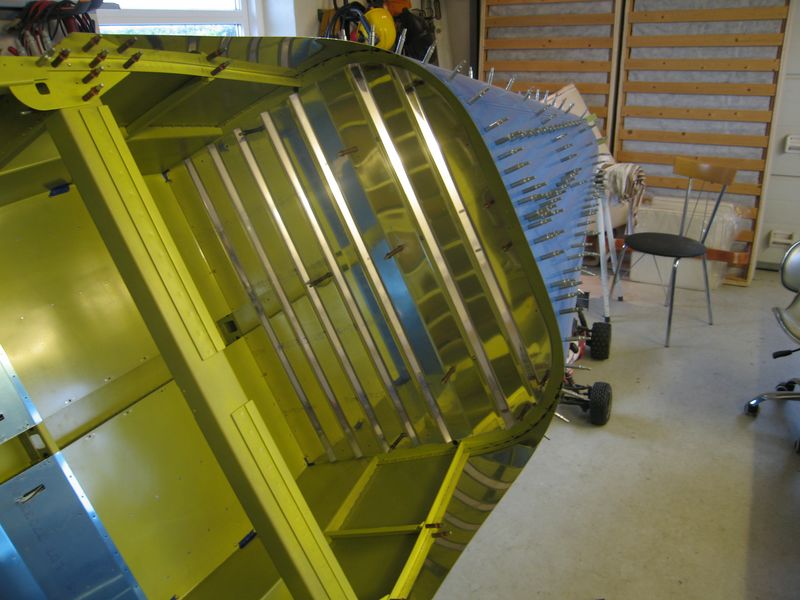

Here the upper nutplates are installed with cleco’s ready to drill.

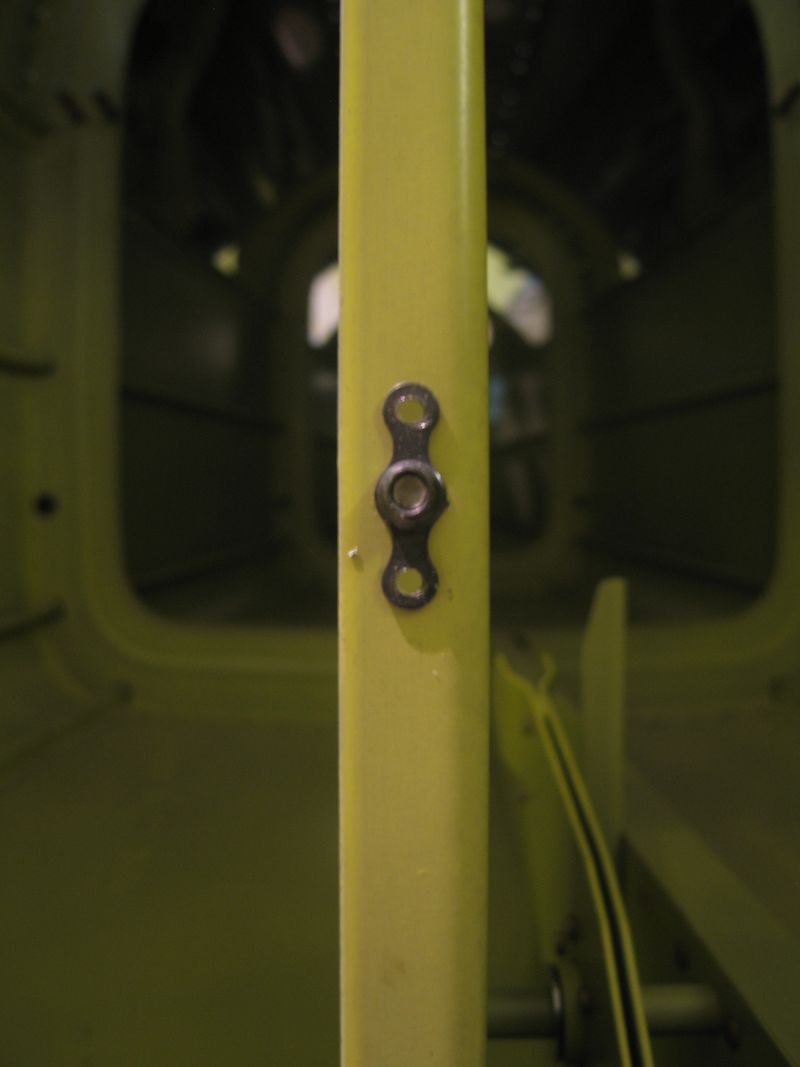

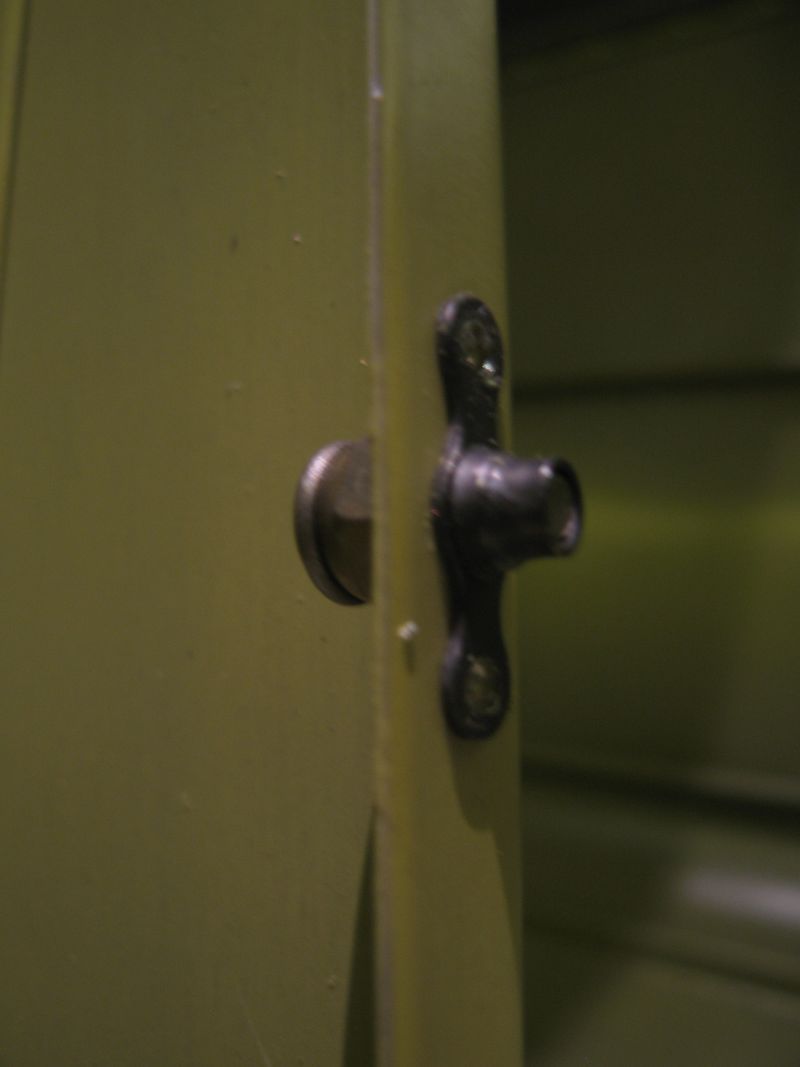

I installed the nutplates on the vertical bellcrank rib with a screw and spacer nut as guide..
Rivet holes drilled. I countersunk these holes, but dimpled all the remaining rivet holes.
Finally I installed all the bulkhead nutplates. I forgot to take a last photo before calling it quits..
