During the last 3 weeks, I have been working on my wheel fairings.
It is taking much longer than I anticipated, but hopefully it will be worth the effort. 🙂

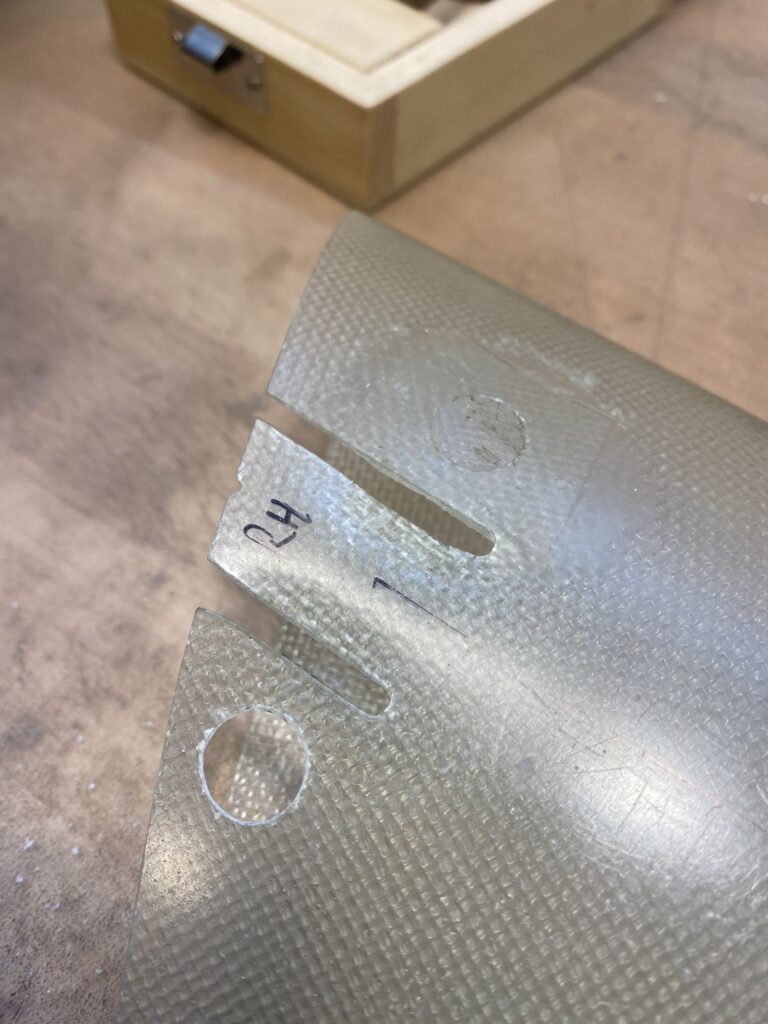

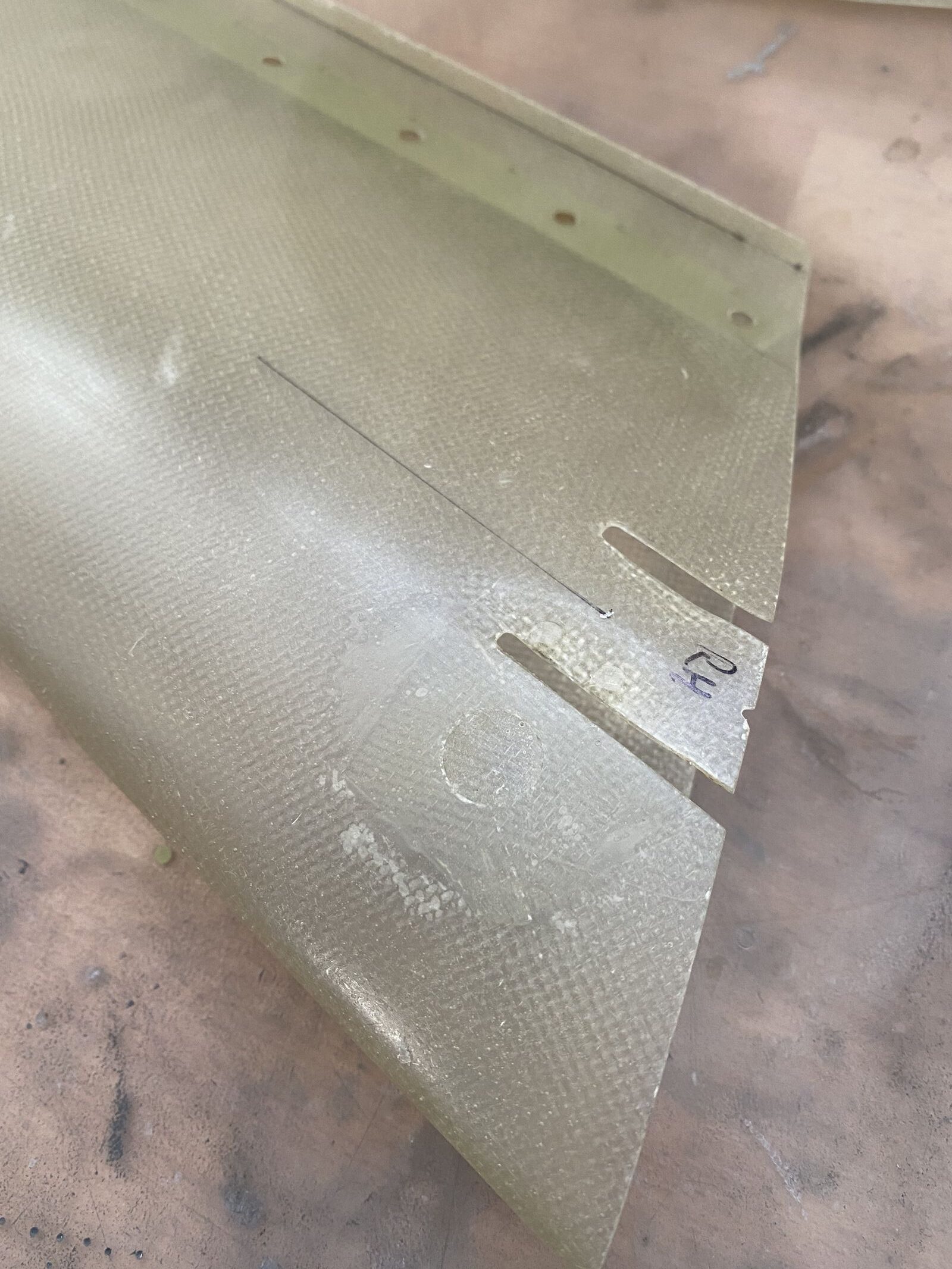

When I added the ekstra layers at the wheel fairing mounting points, I also closed the holes I incorrectly drilled on the leg fairings.

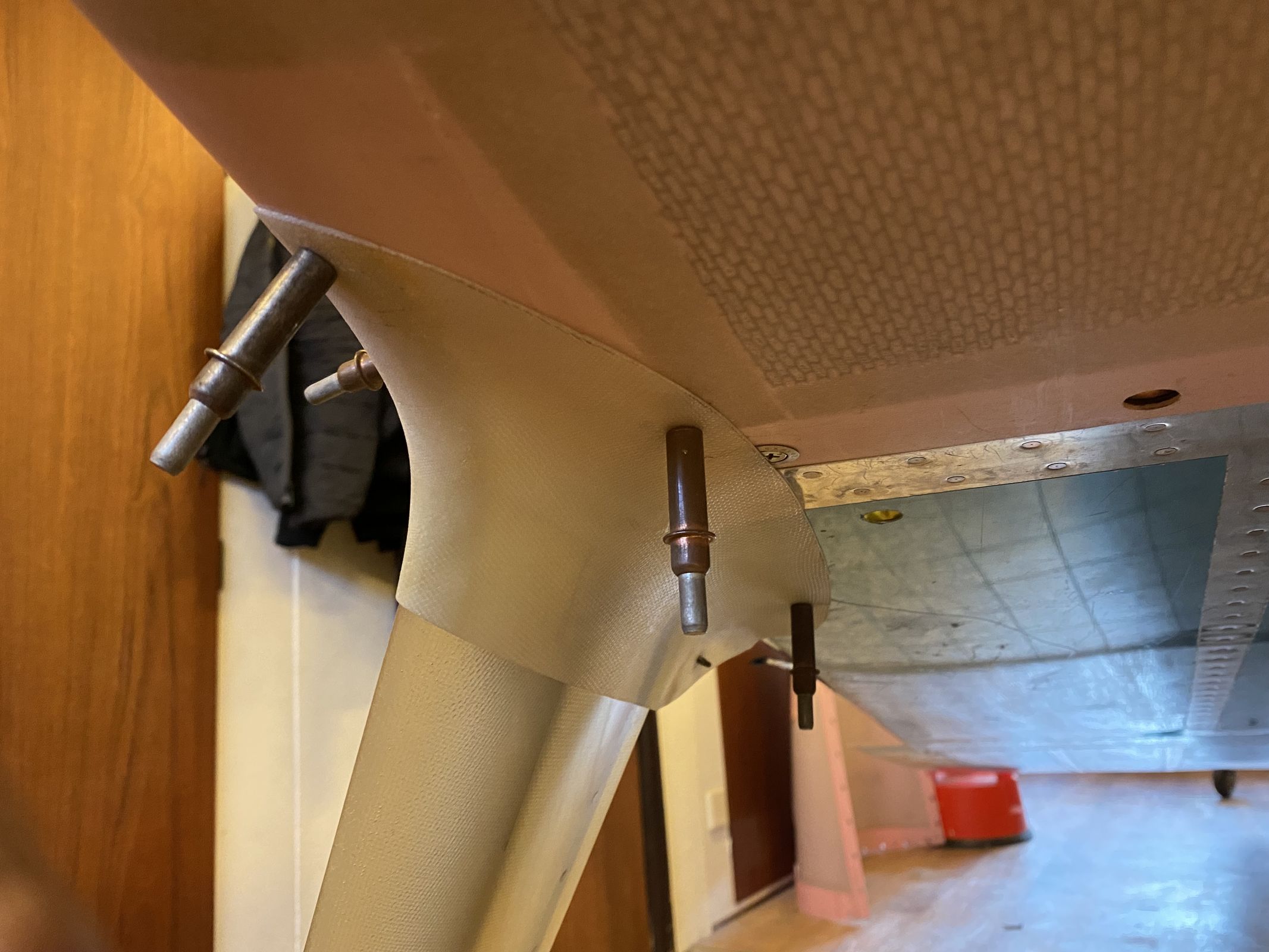

After that I drilled new holes on the rear side, where the clamps will not interfere with the brake lines.

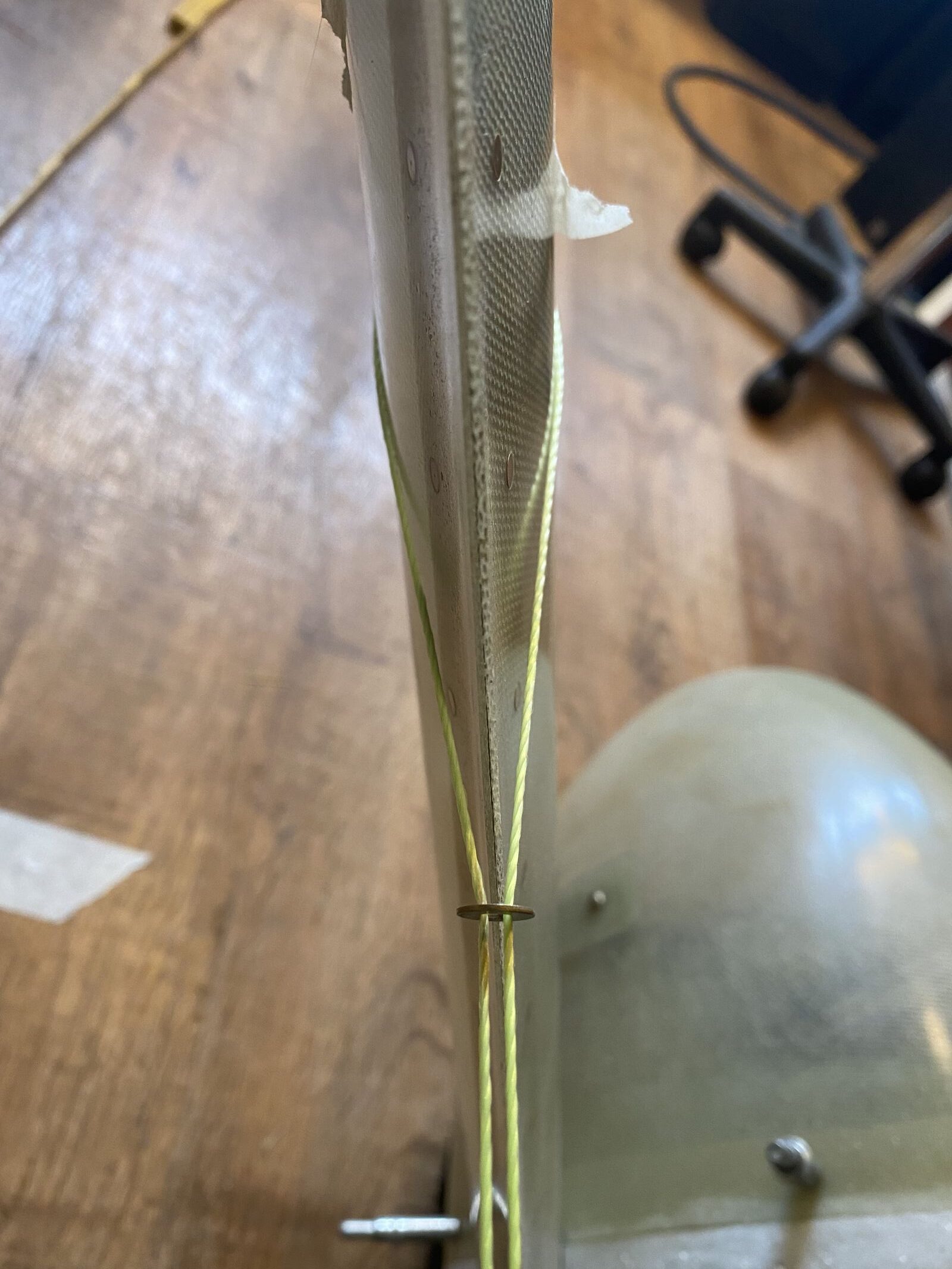

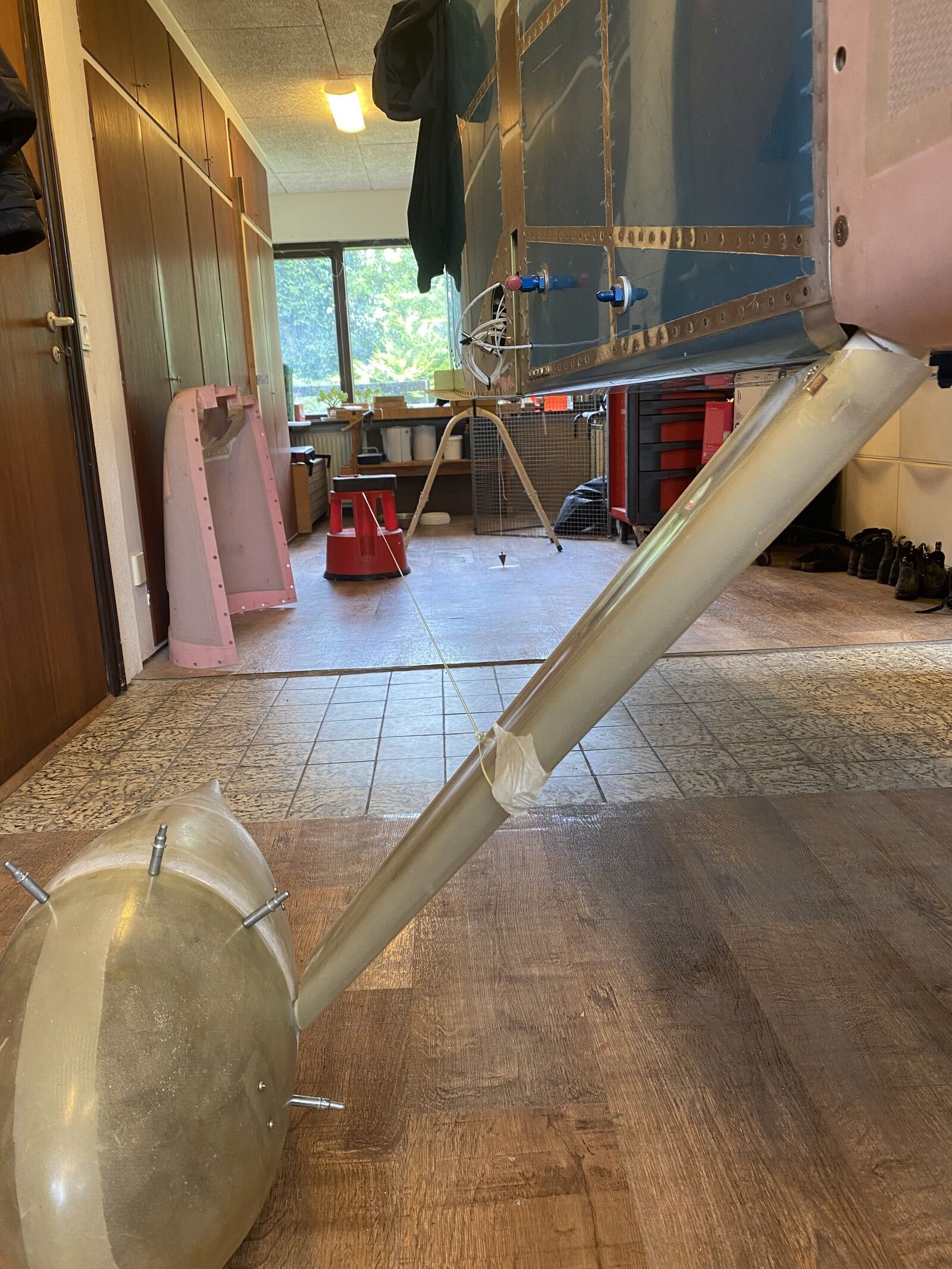

With the leg fairings reinstalled, I lined them up parallel to the fuselage centerline, and marked alignment lines on the legs.

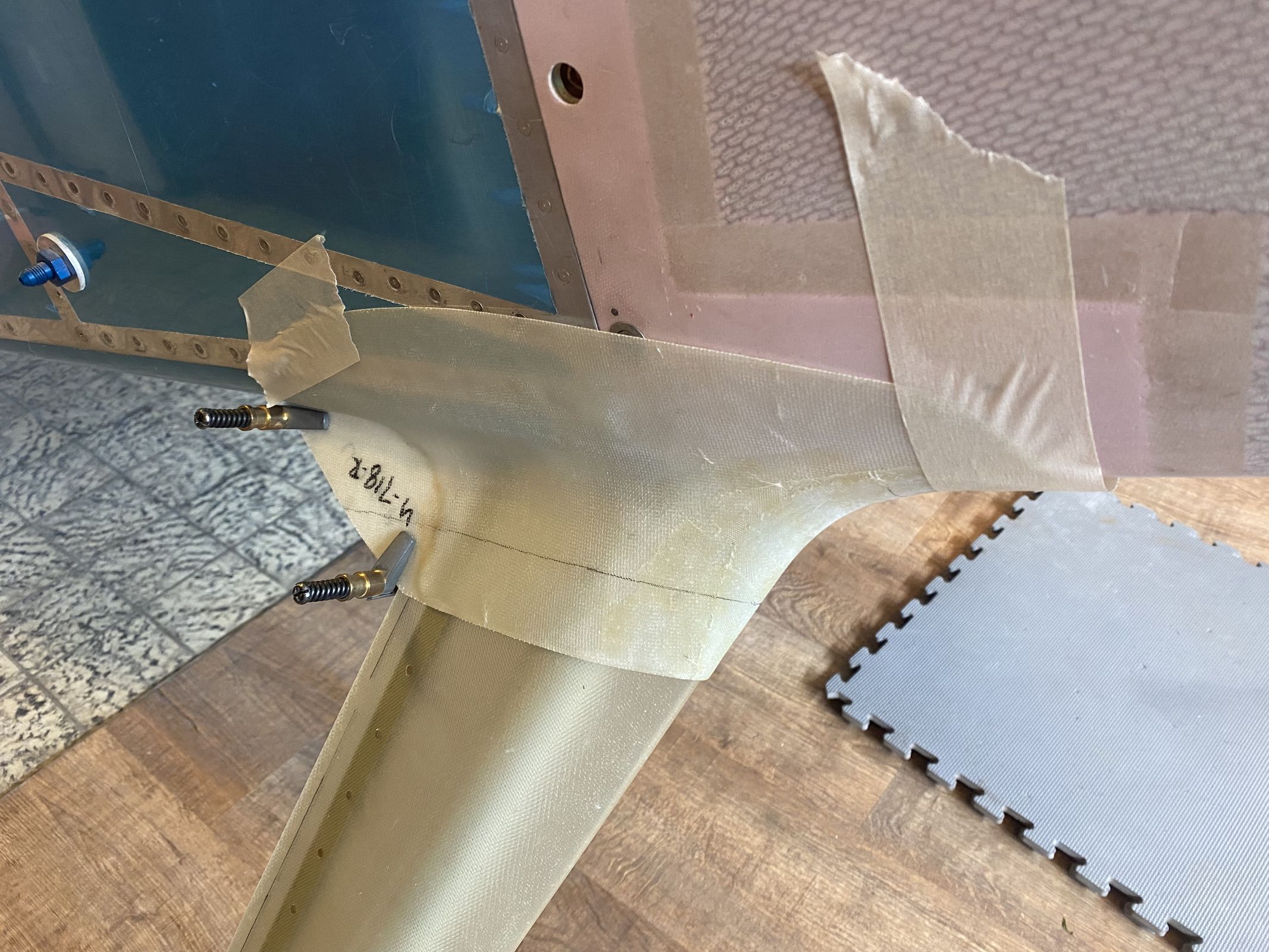

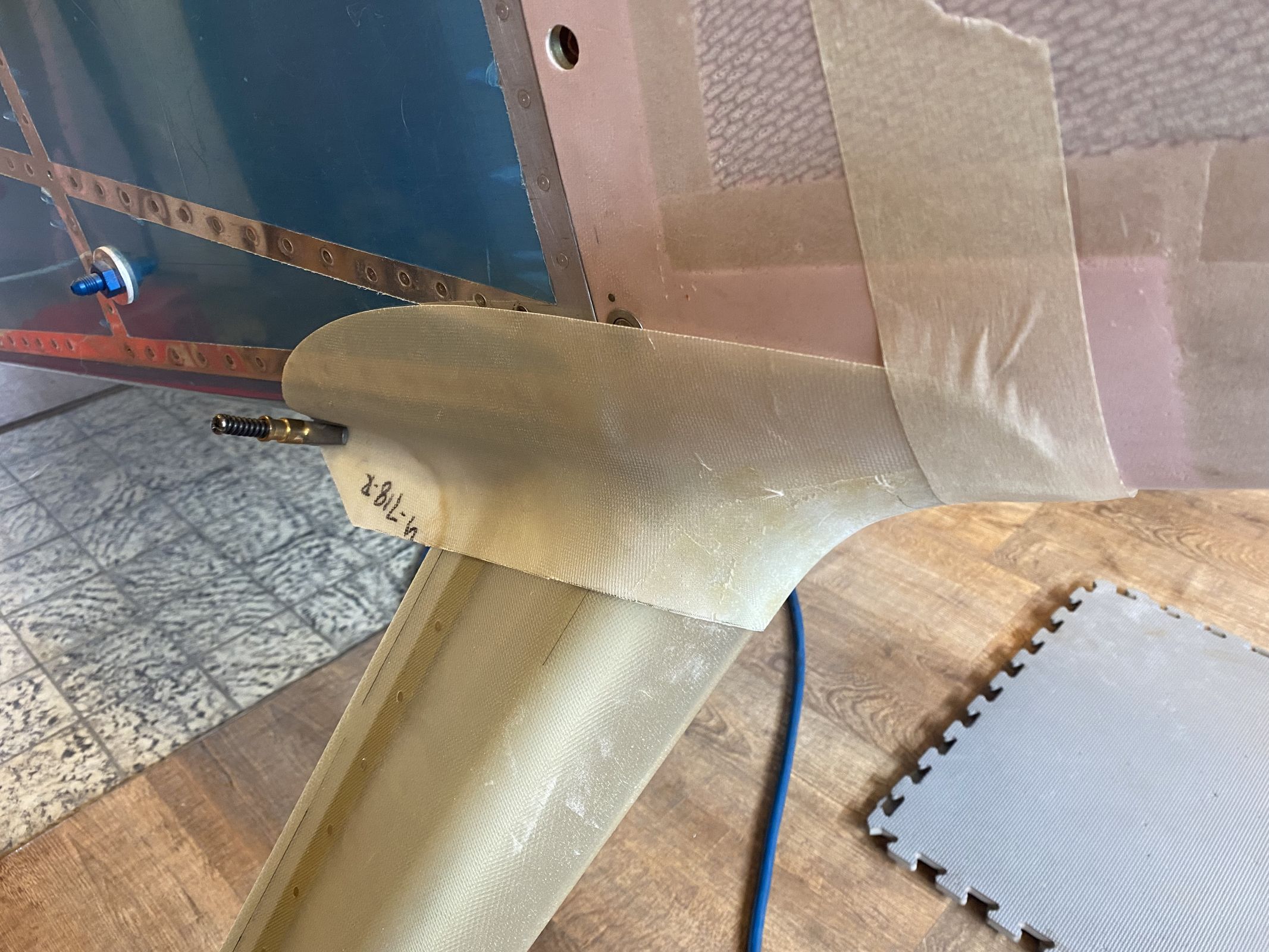

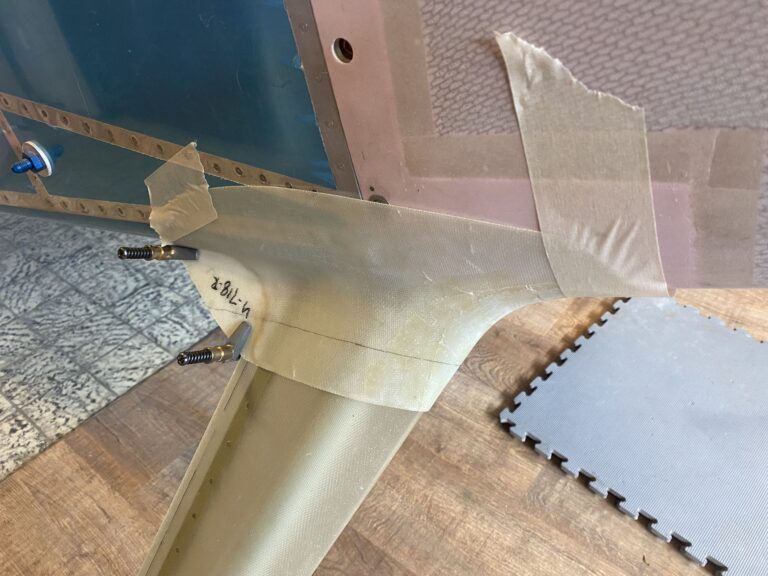

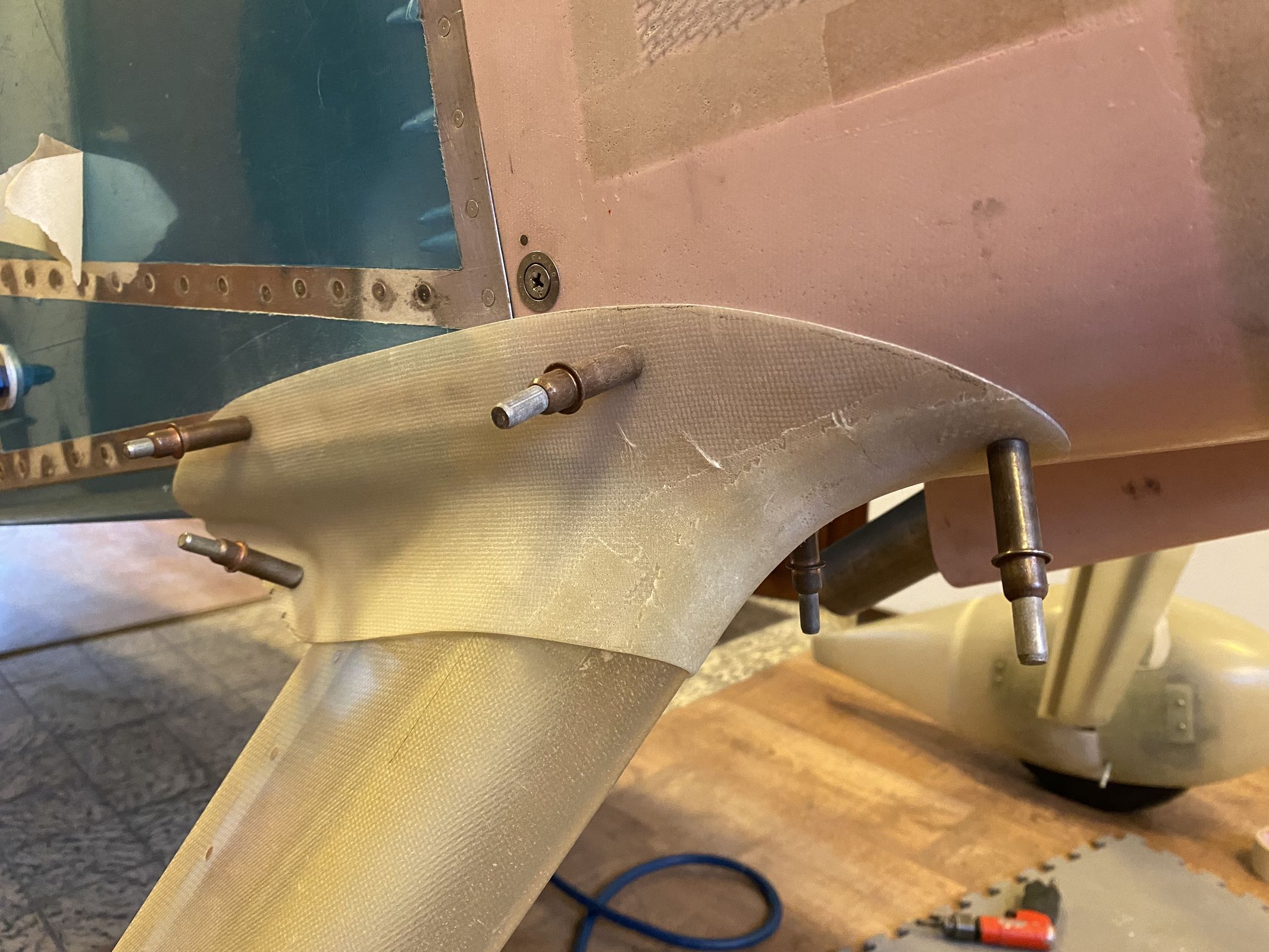

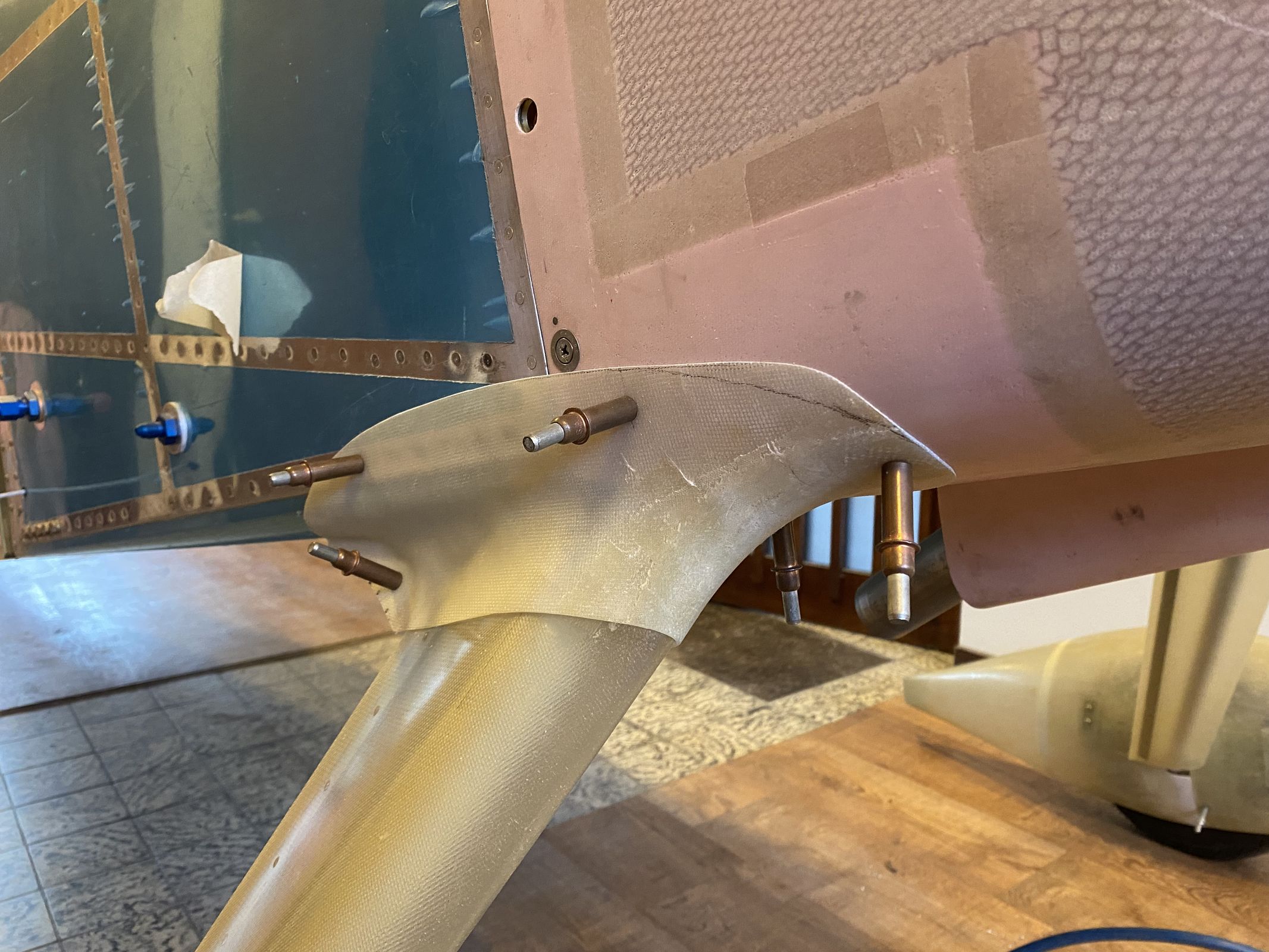

I then started trimming the upper intersection fairings.

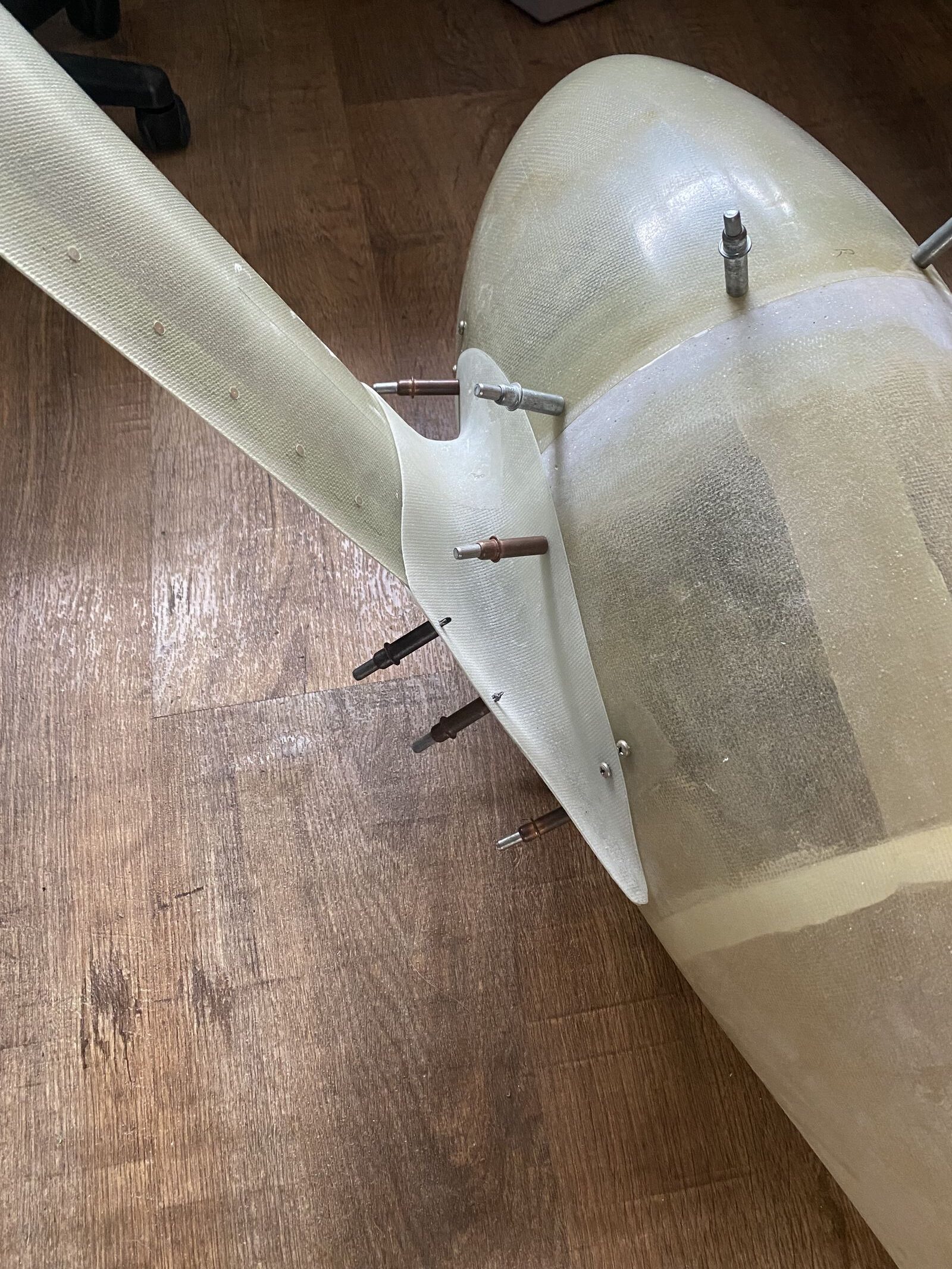

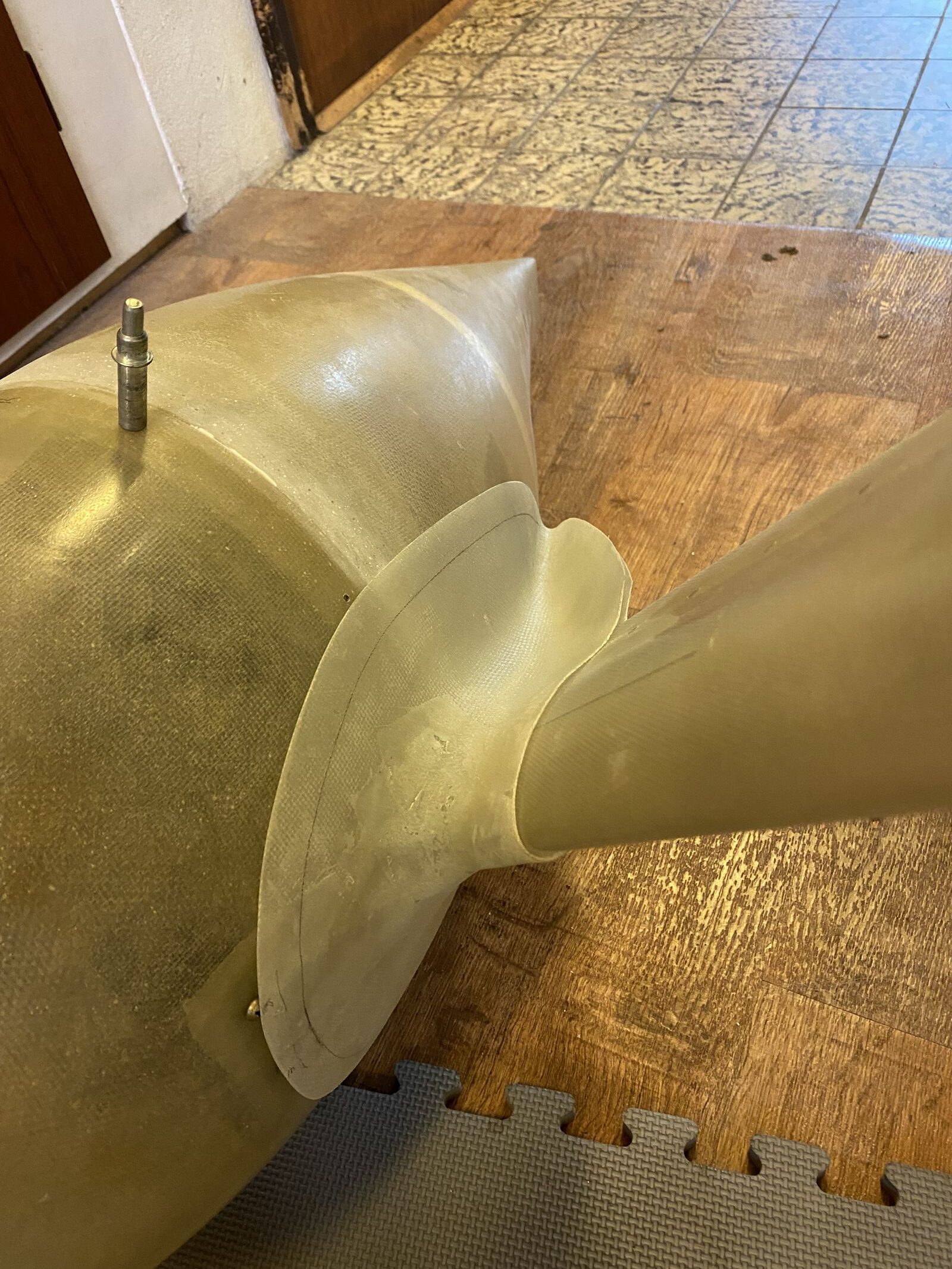

With the upper farings done, I continued on the lower ones…

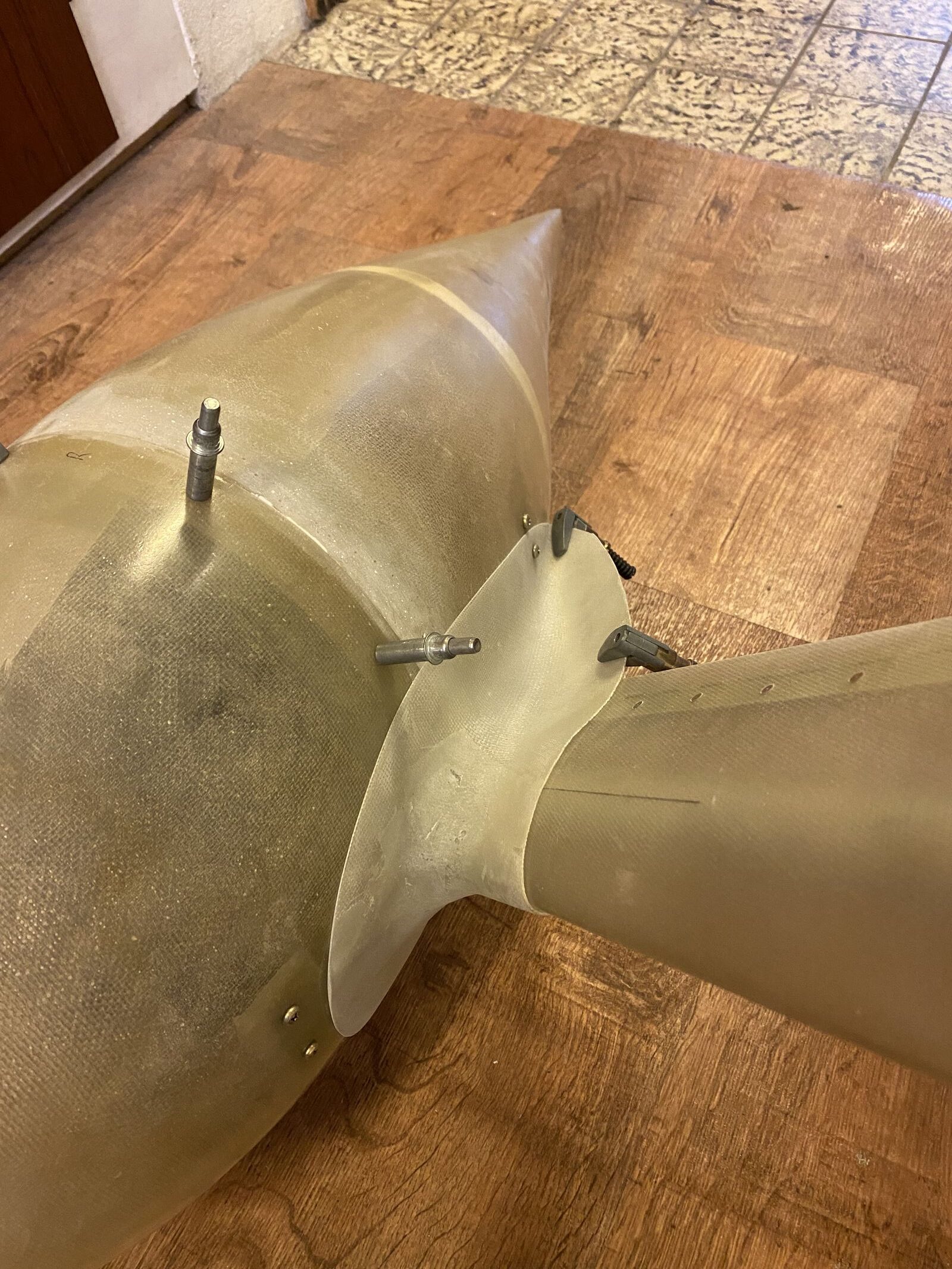

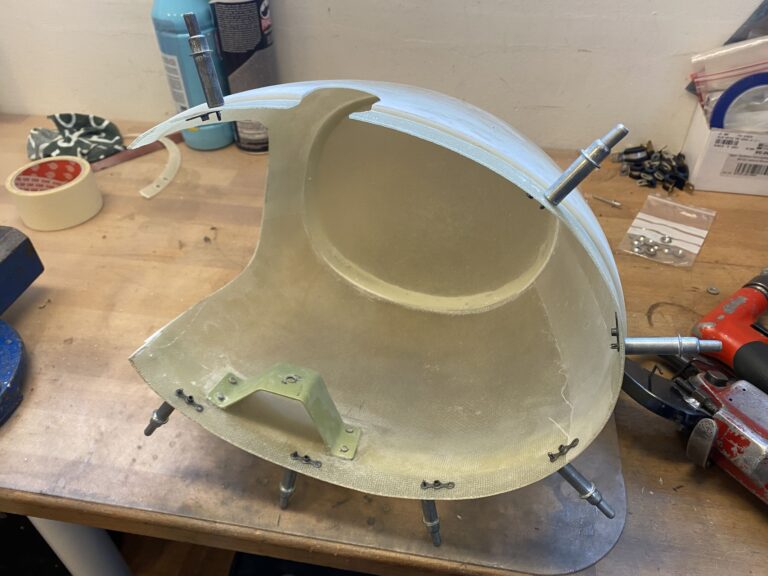

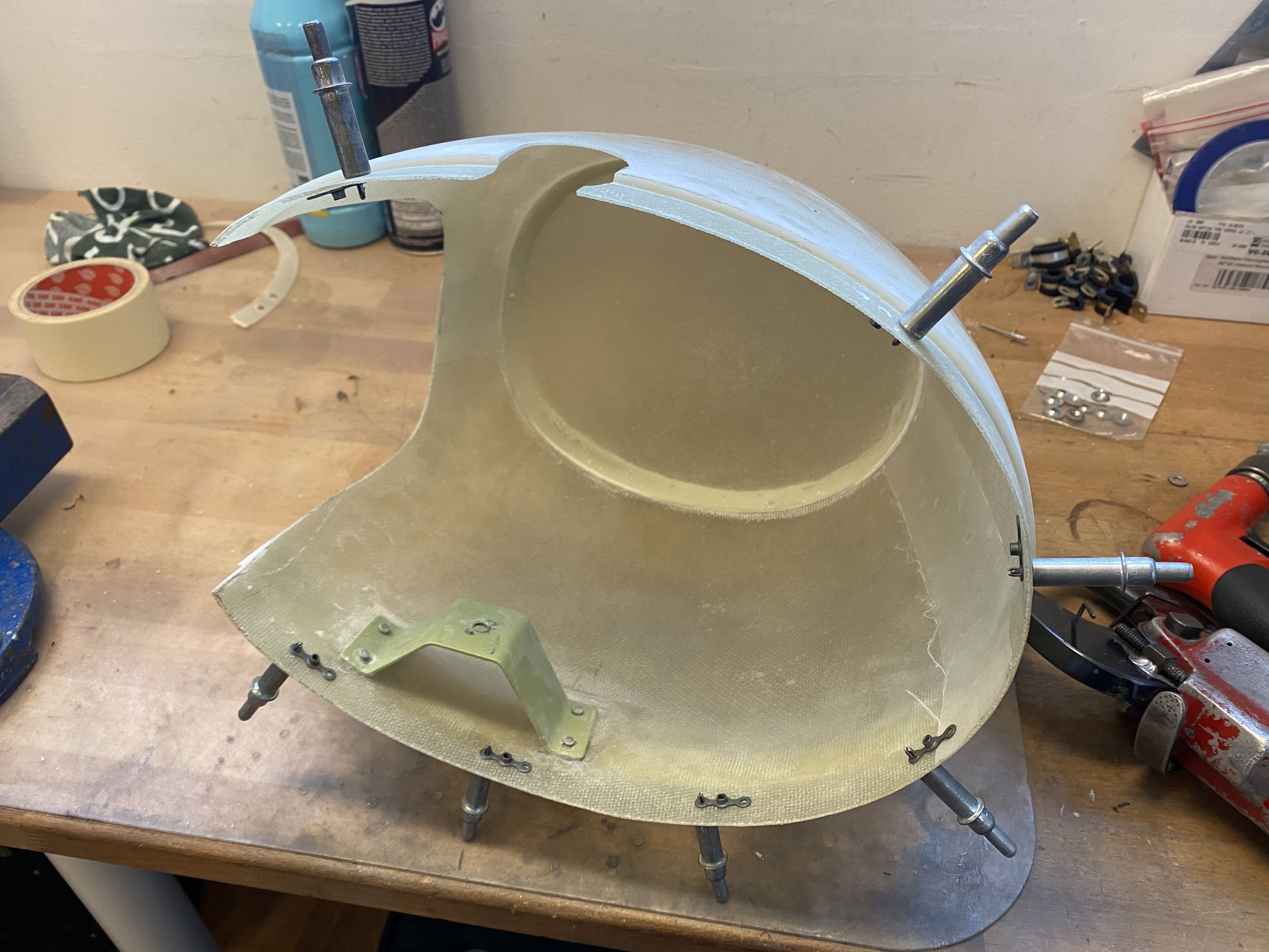

With the intersection fairings trimmed and attach holes drilled, I removed the wheel fairings again to install nutplates.

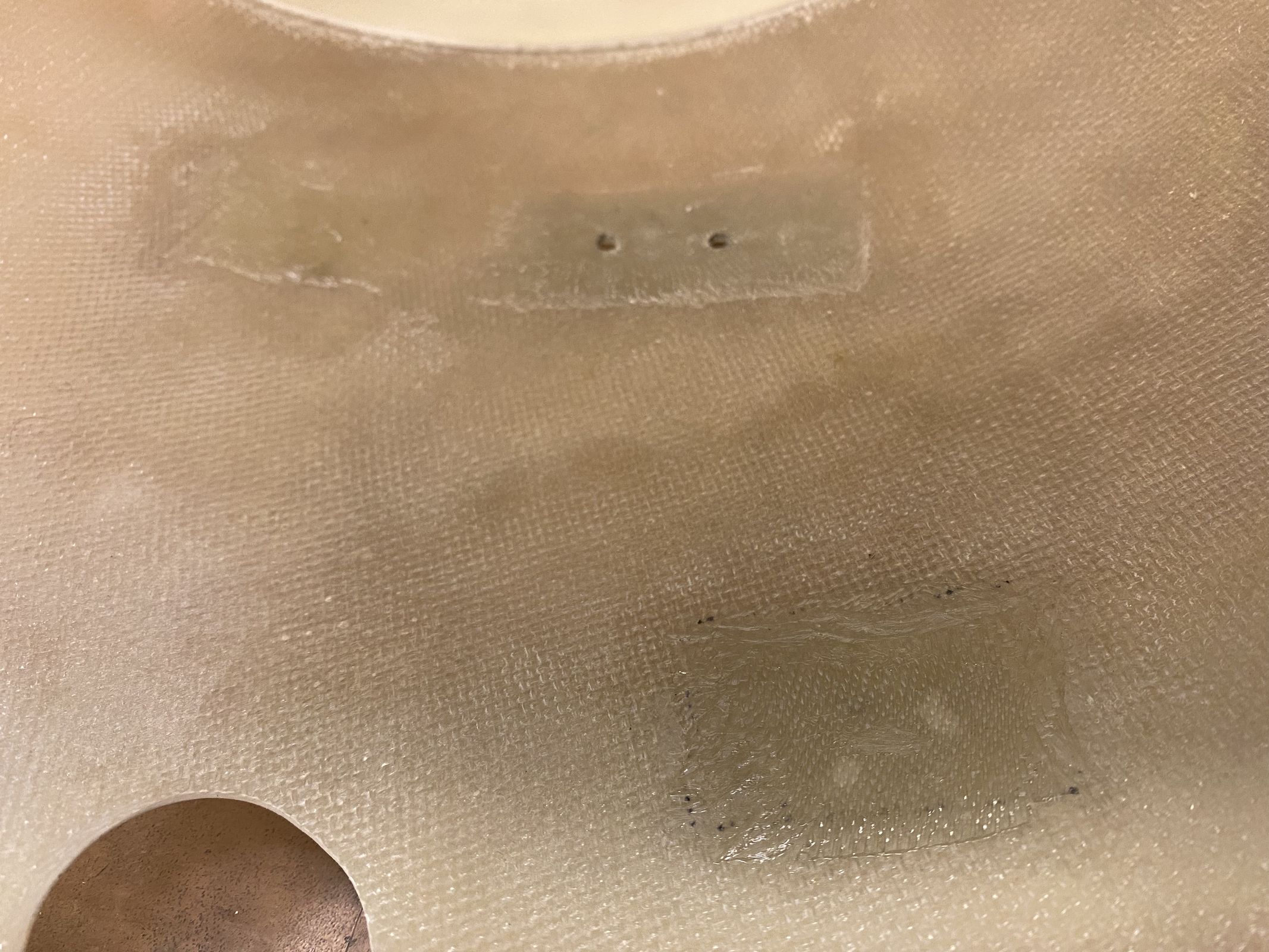

I also added extra epoxy layers as reinforcements where the intersection fairing are attached.

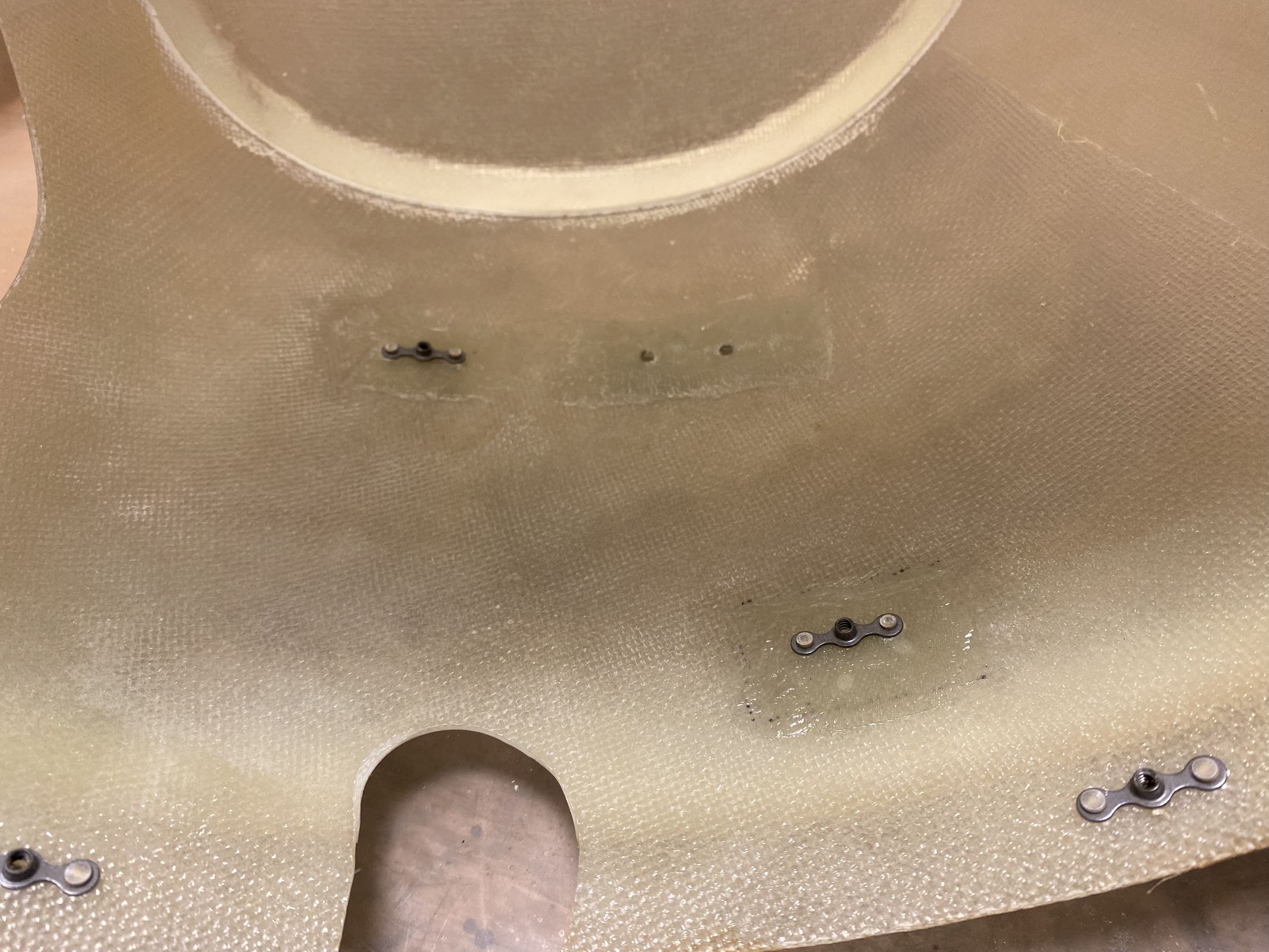

Nutplates installed…

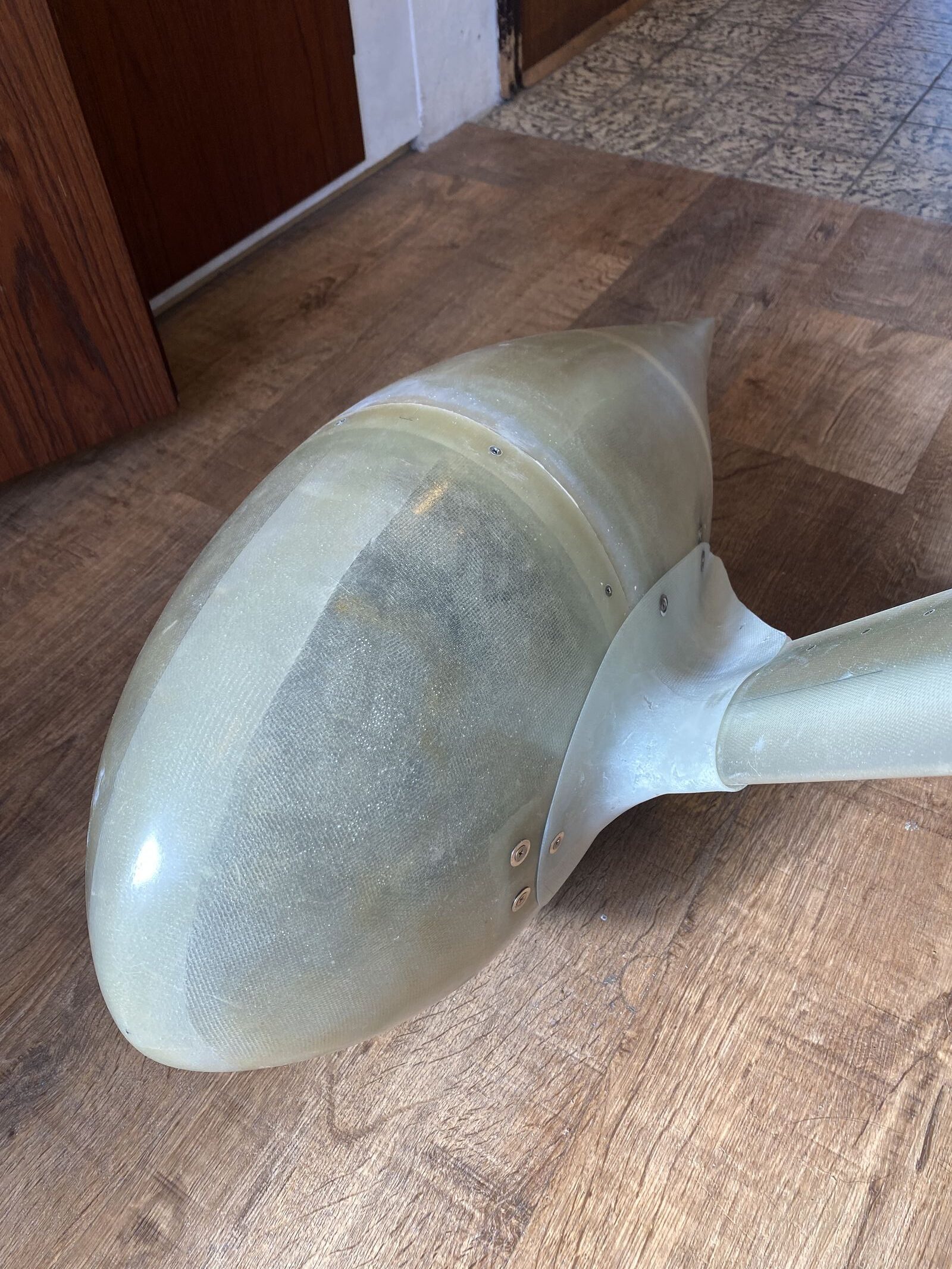

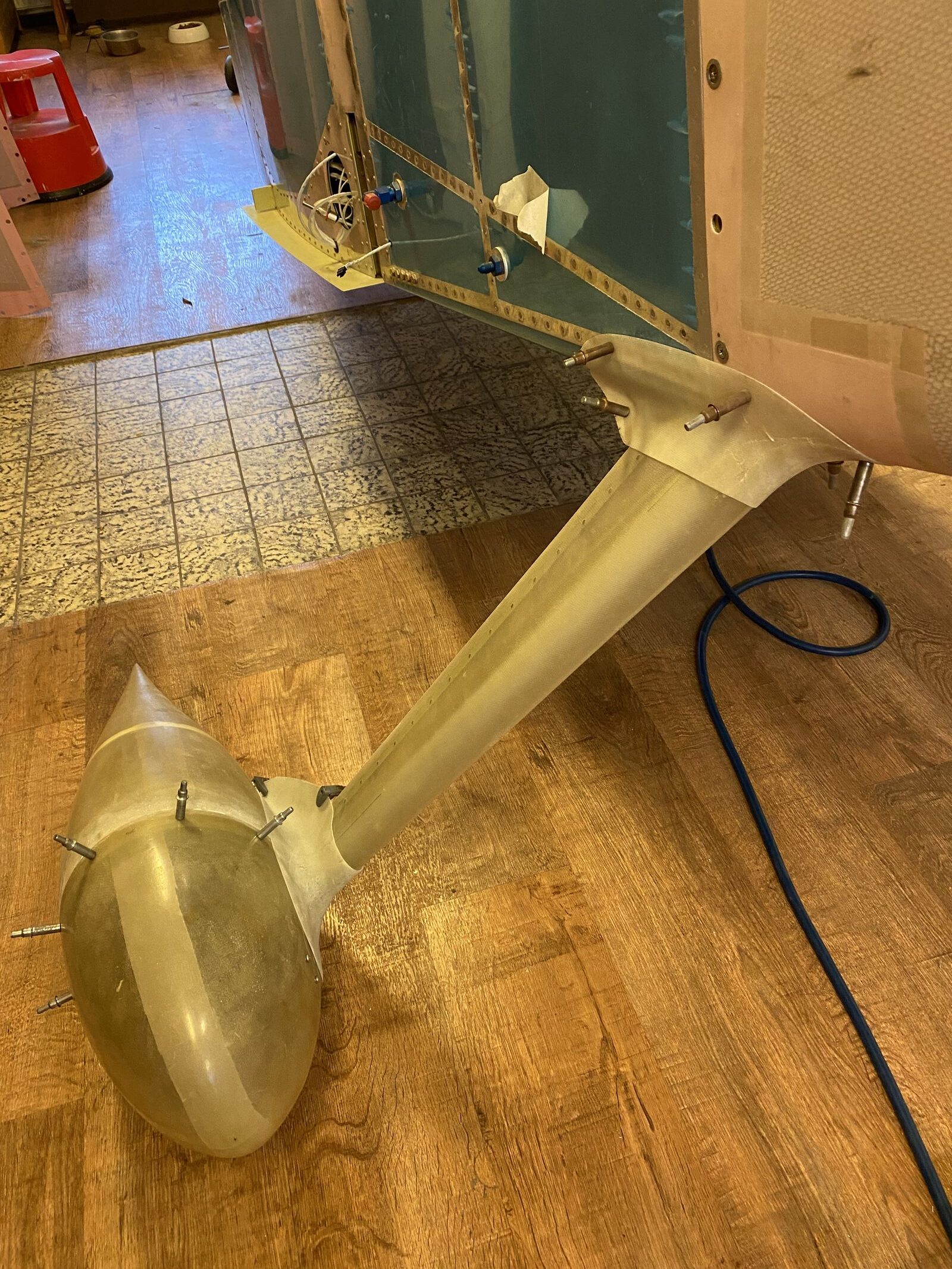

…and wheel farings reinstalled with final screws.

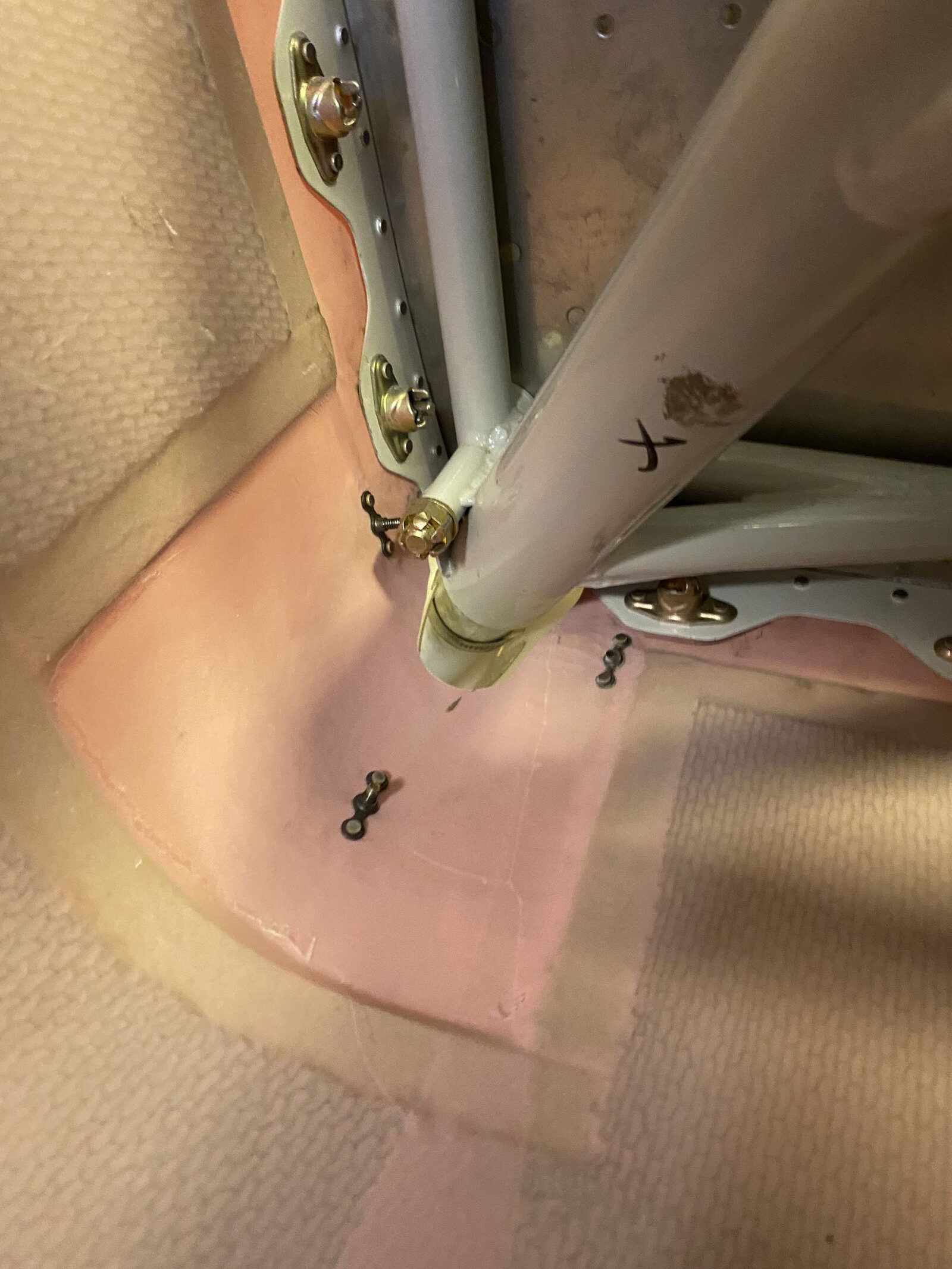

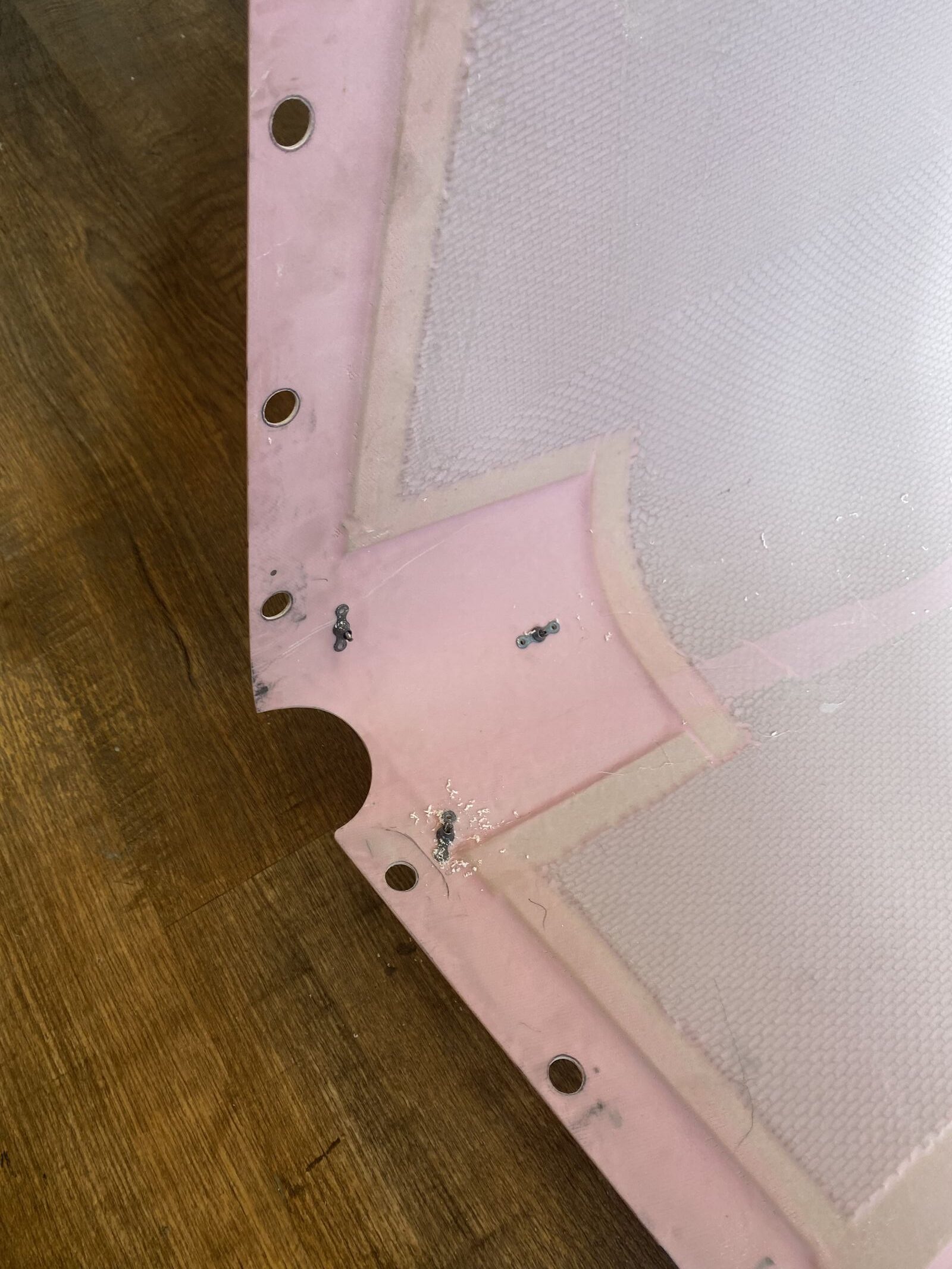

Finally I added nutplates in the lower engine cowling for the upper intersections.
