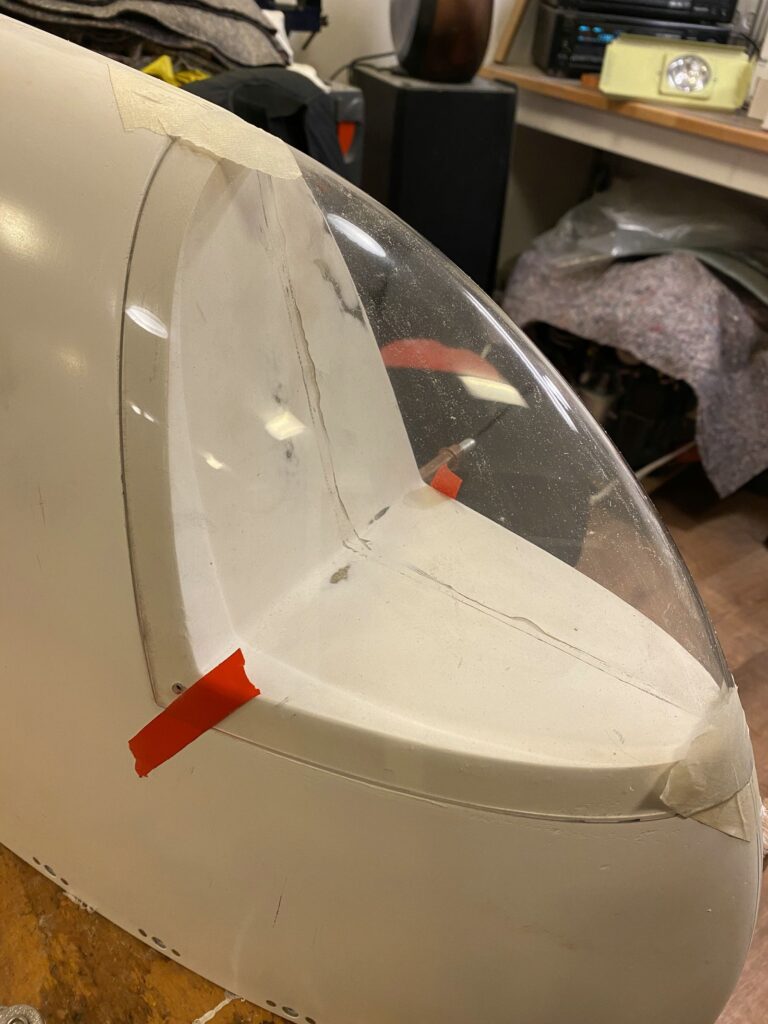

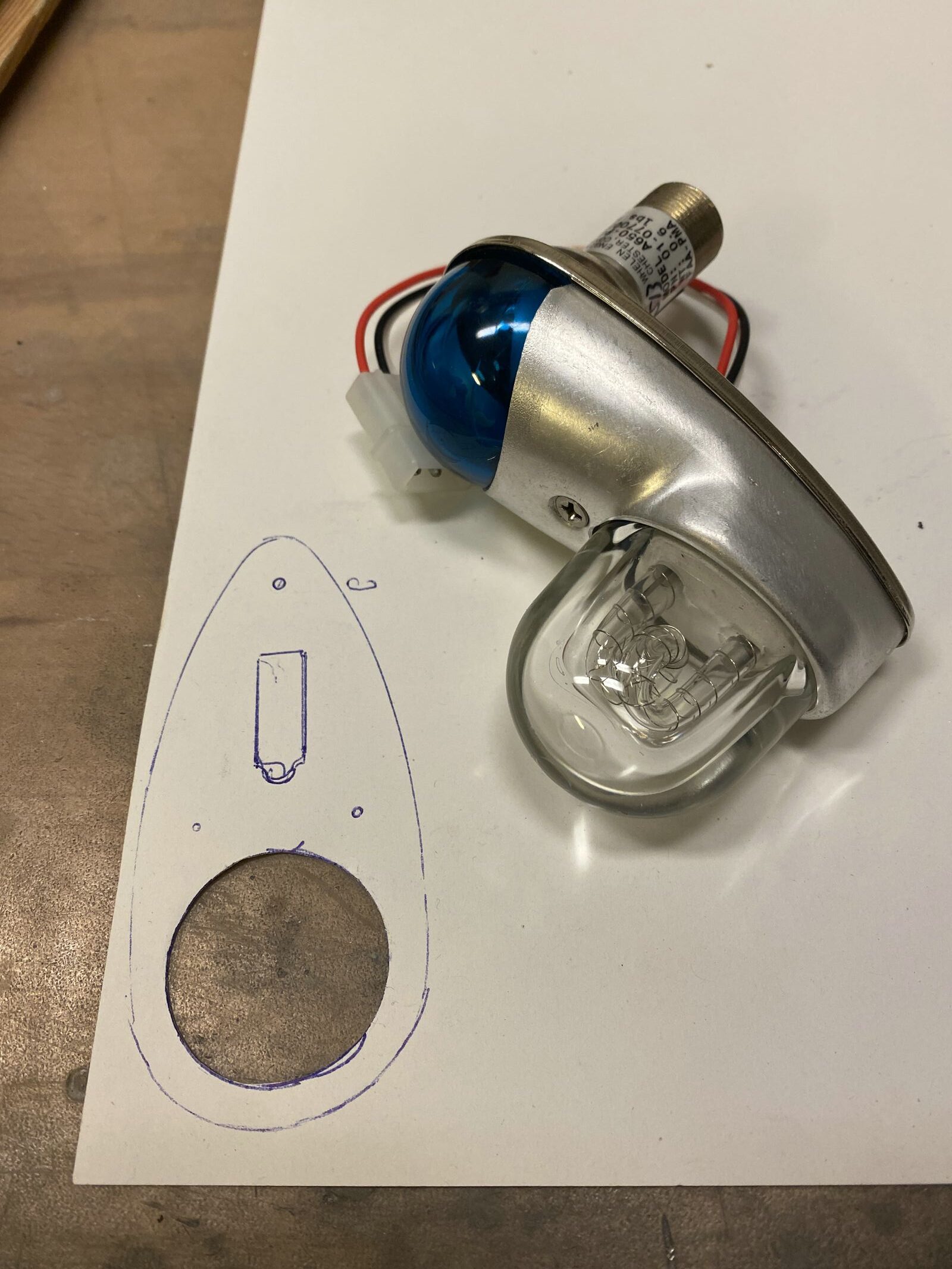

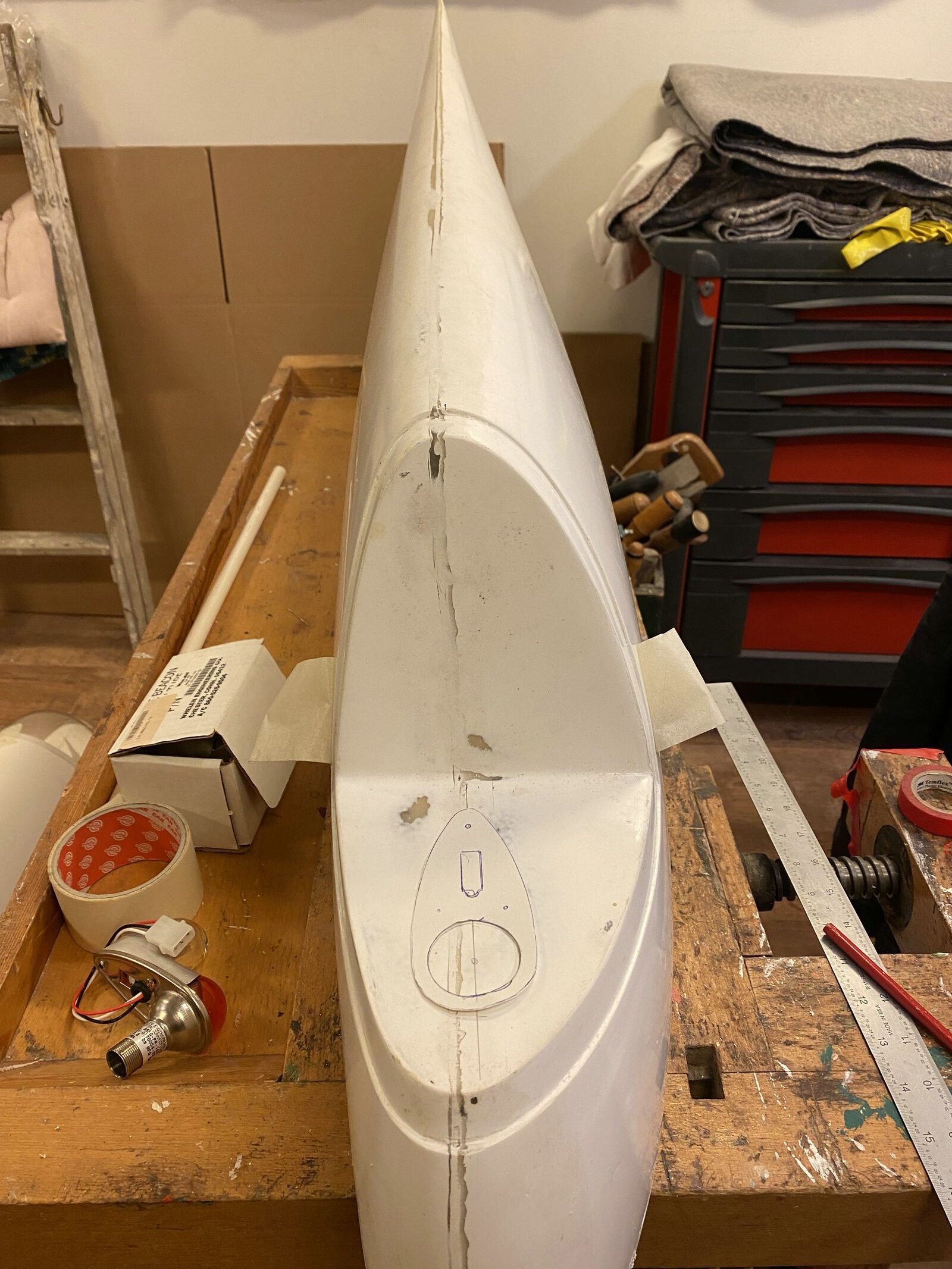

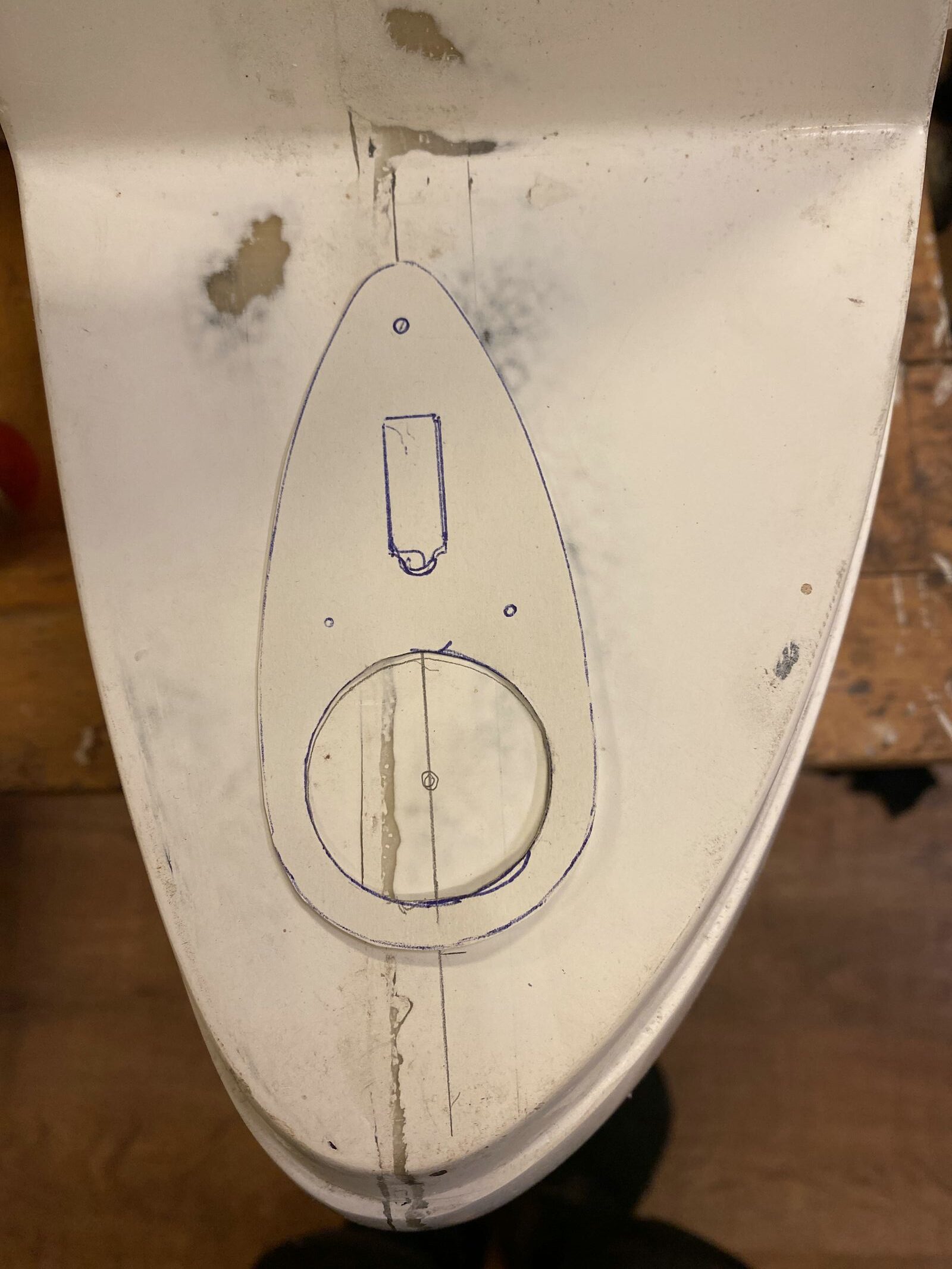

To install my nav/strobe light assy’s, I first made a template.

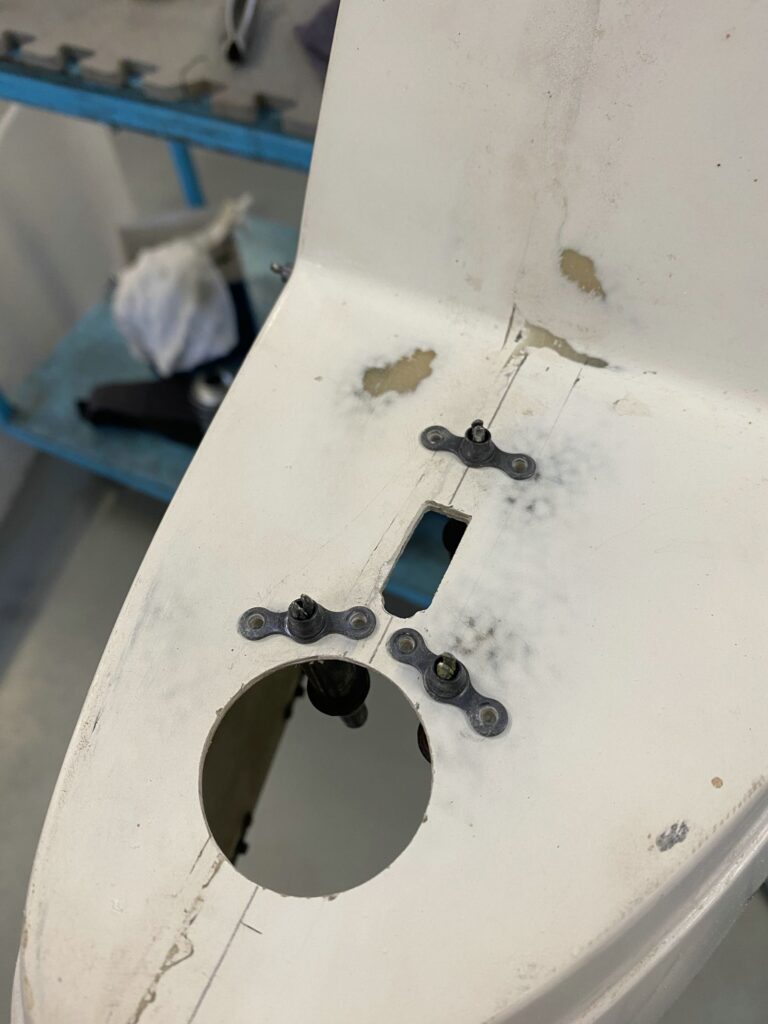

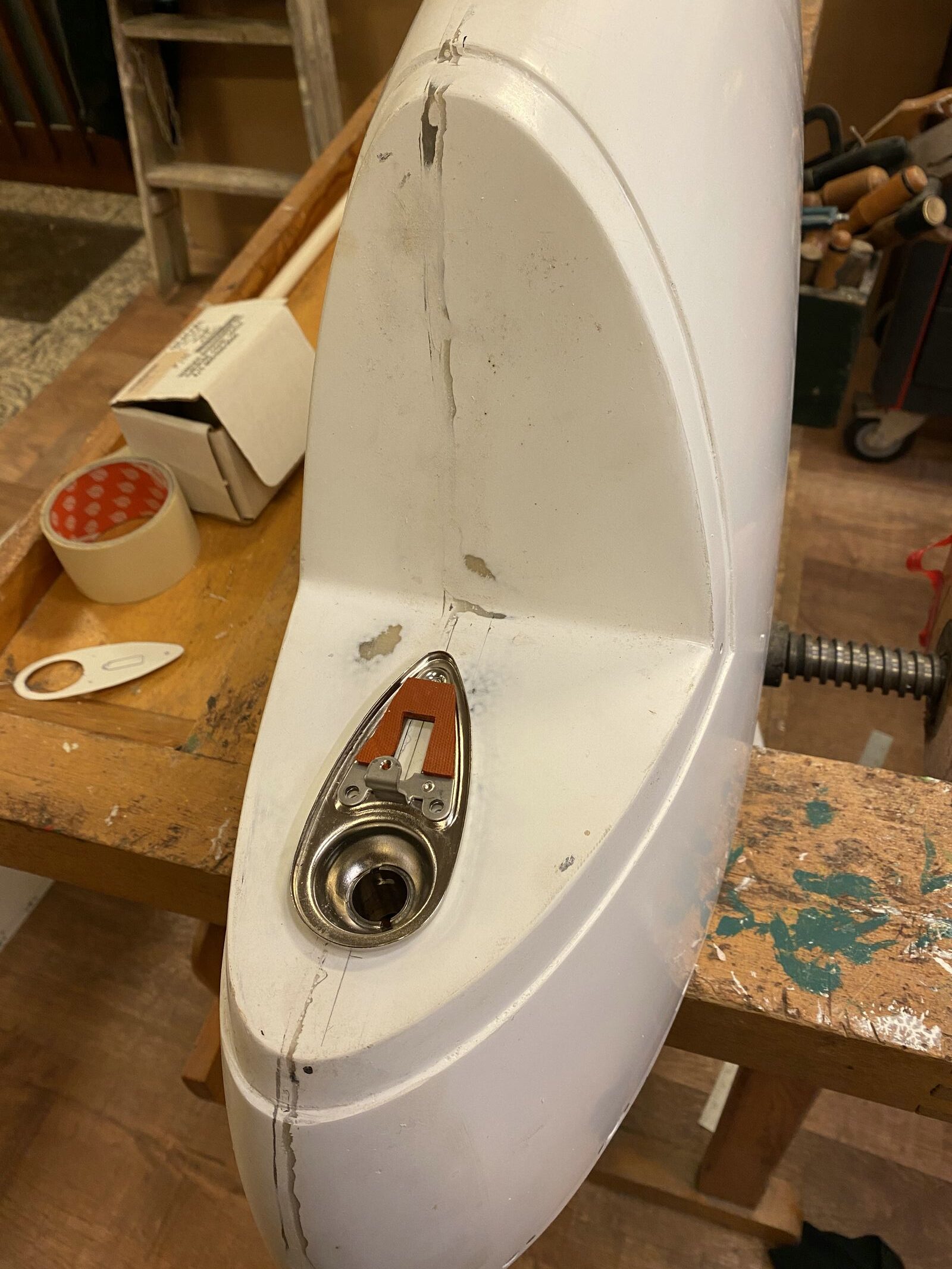

With the ligt assy’s aligned and the holes drilled, I could go ahead and install nutplates.

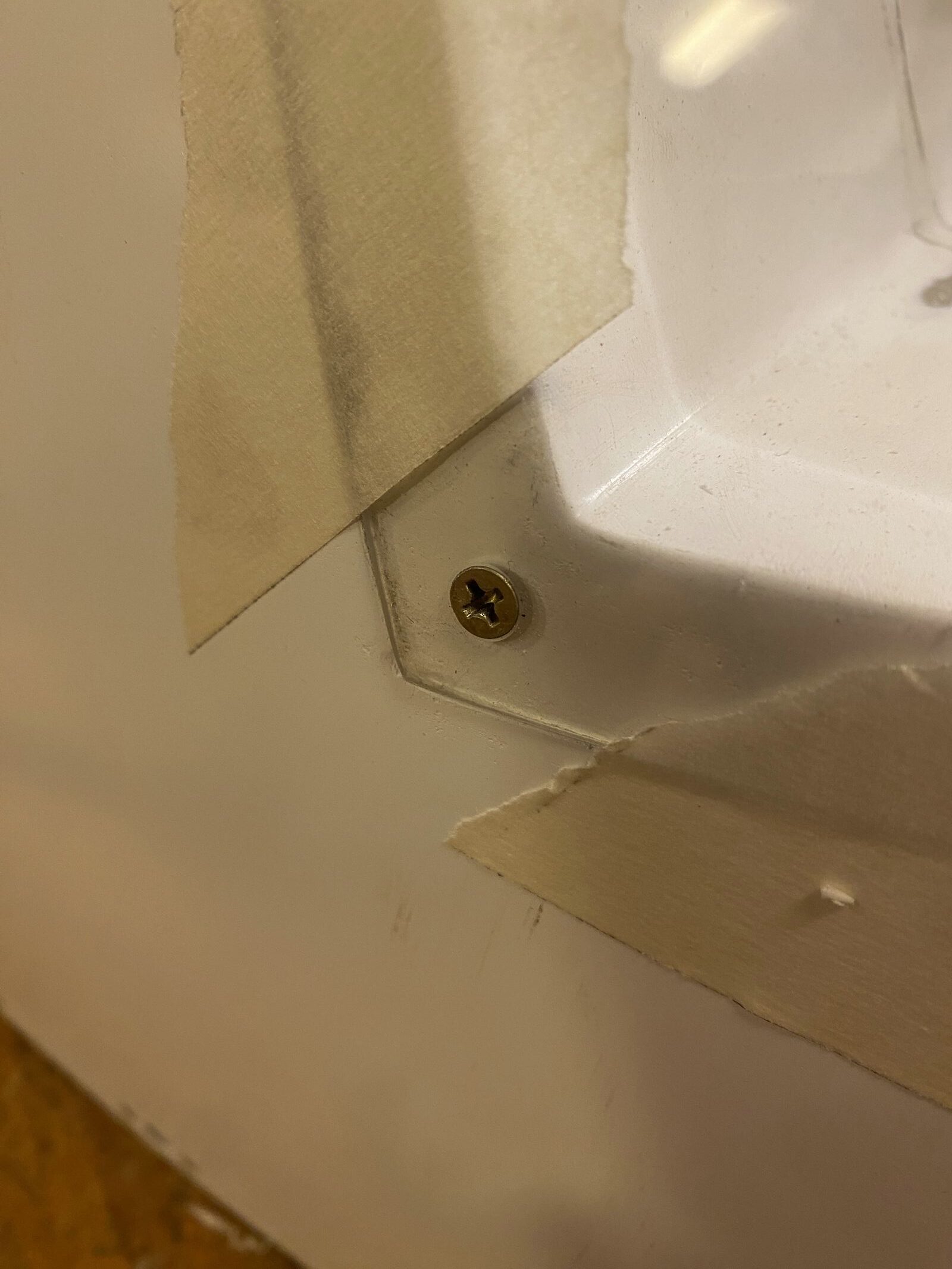

I also drilled screw holes for the wing tip lenses, and installed nutplated here as well.

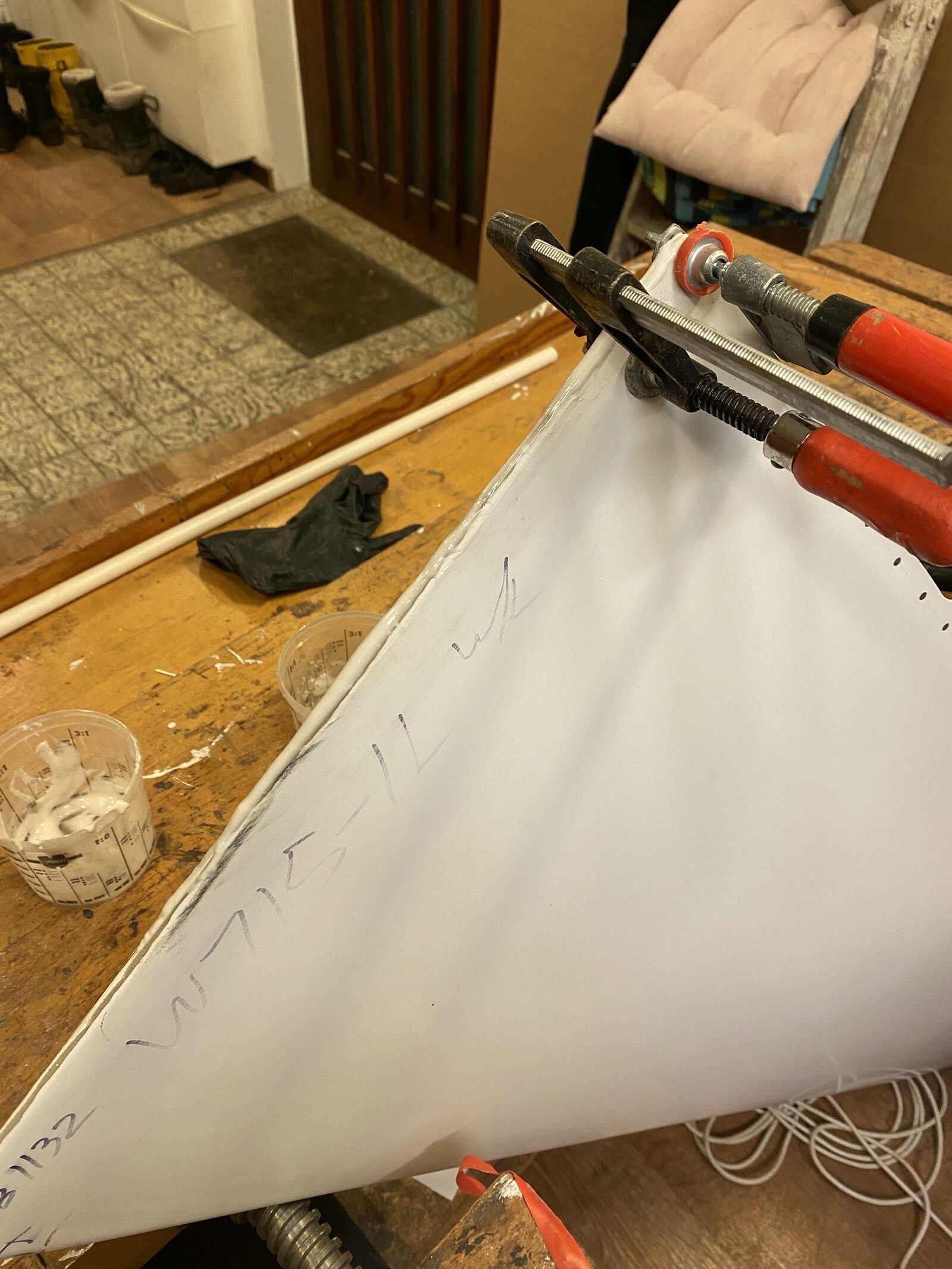

The trailing edge of the left wing tip had cracked in the epoxy filler, so I cut it out and refilled it.

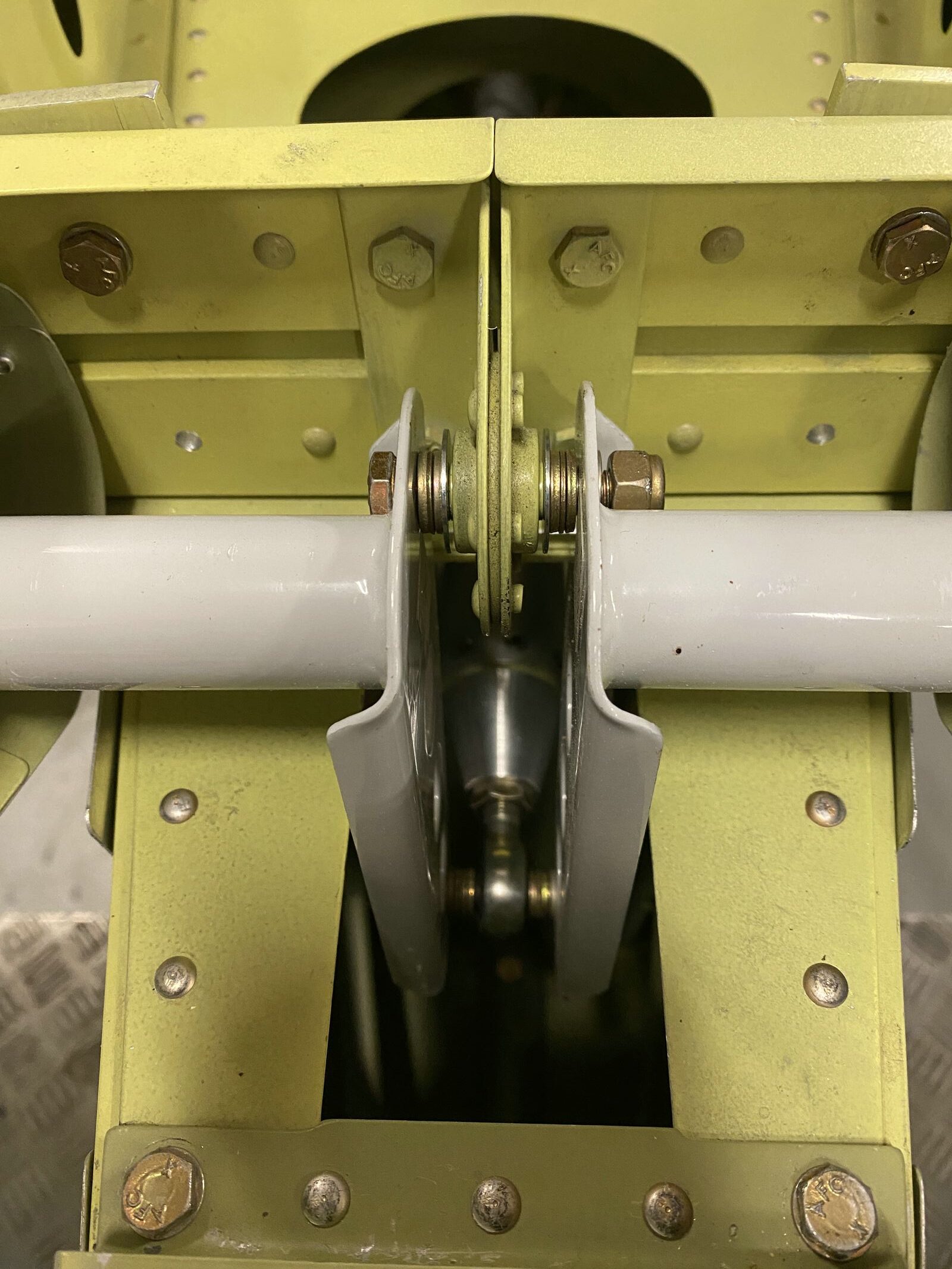

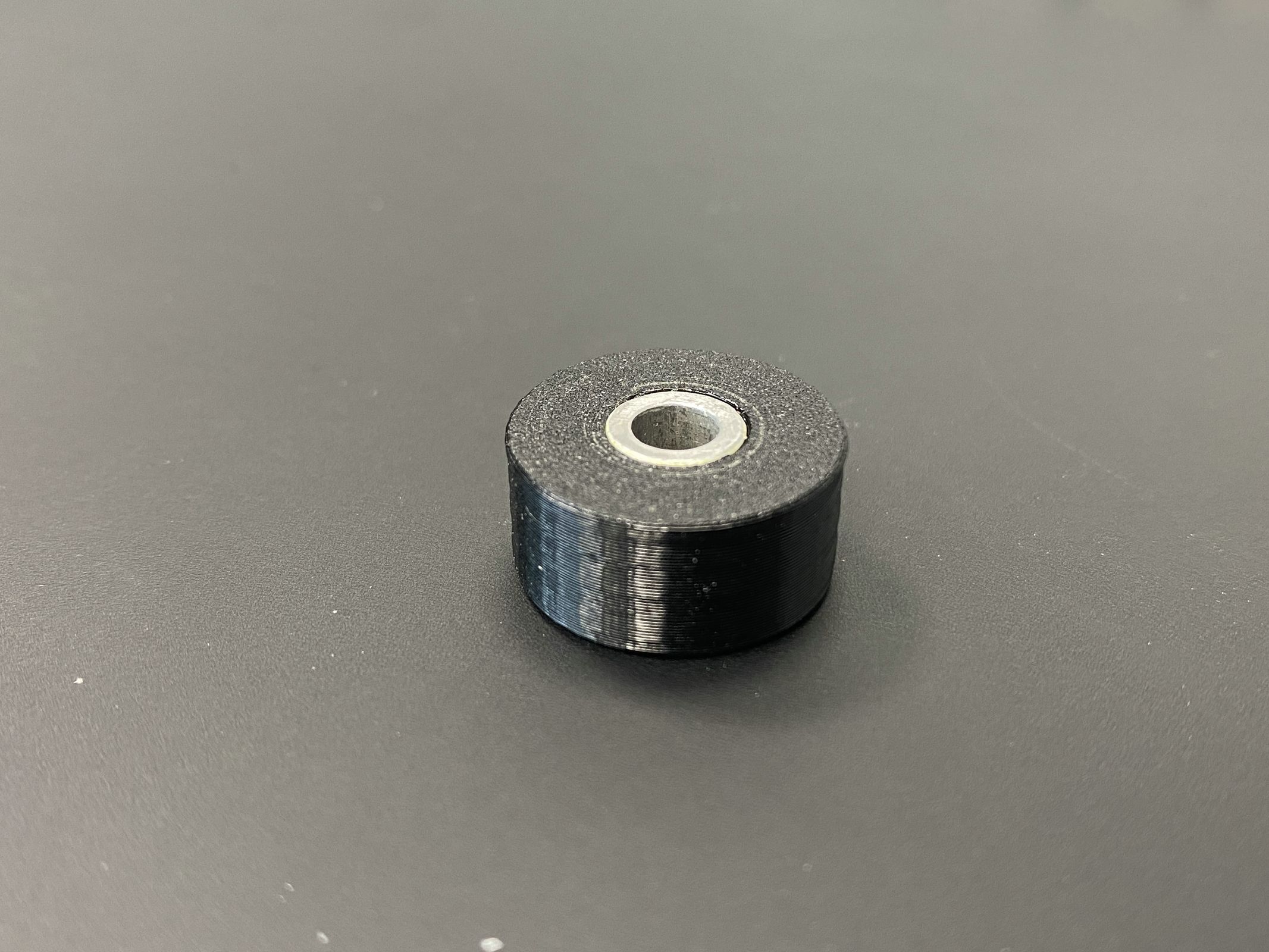

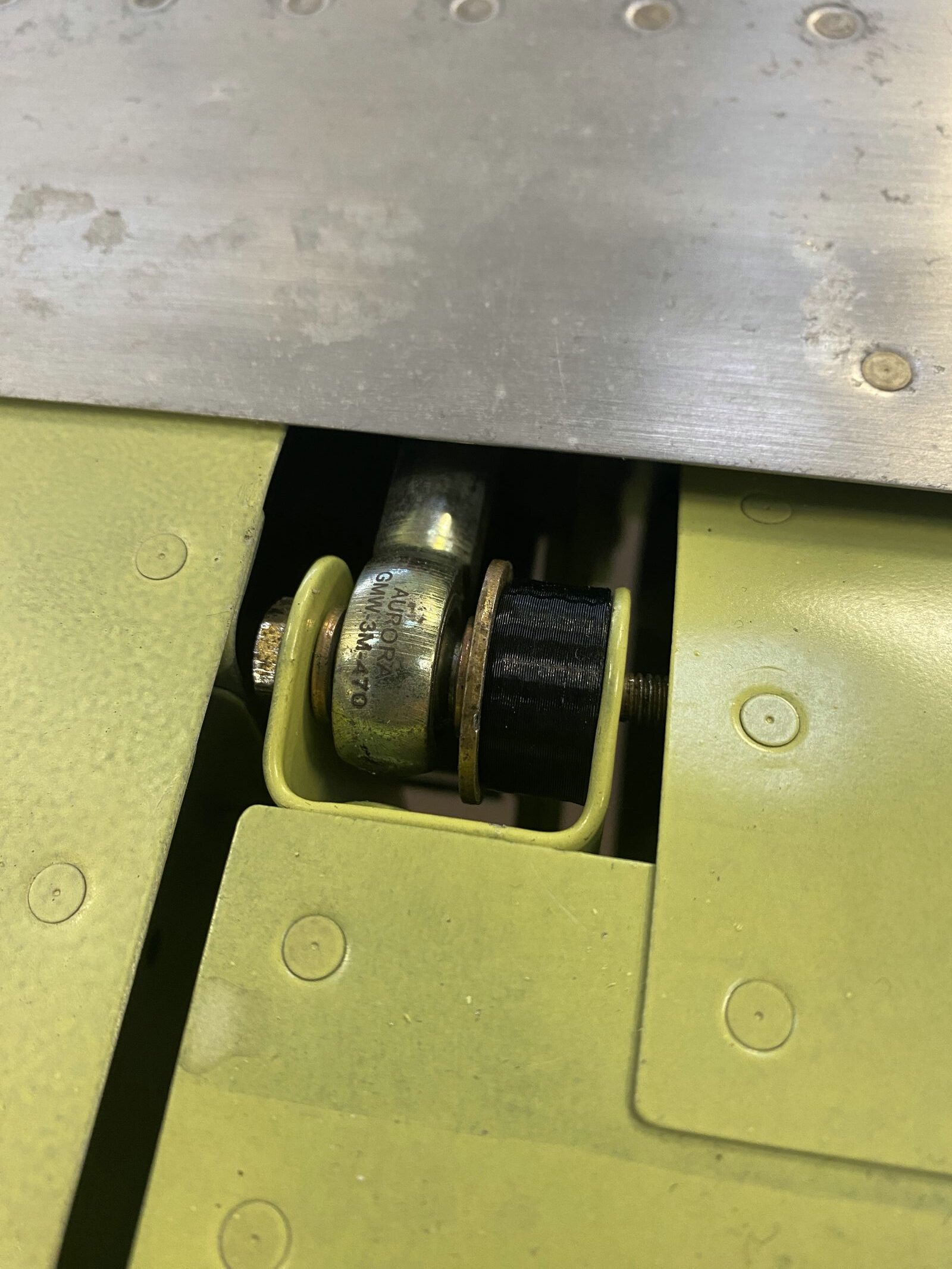

I still had to make the aileron stops. There are 2 ways of making these; either by a small alu angle riveded to the the aileron bracket, or by making a stop bushing on the control rod bolt spacer. I chose the latter..

I also superglued the spacer washers for the elevators together, making them much easier to install.

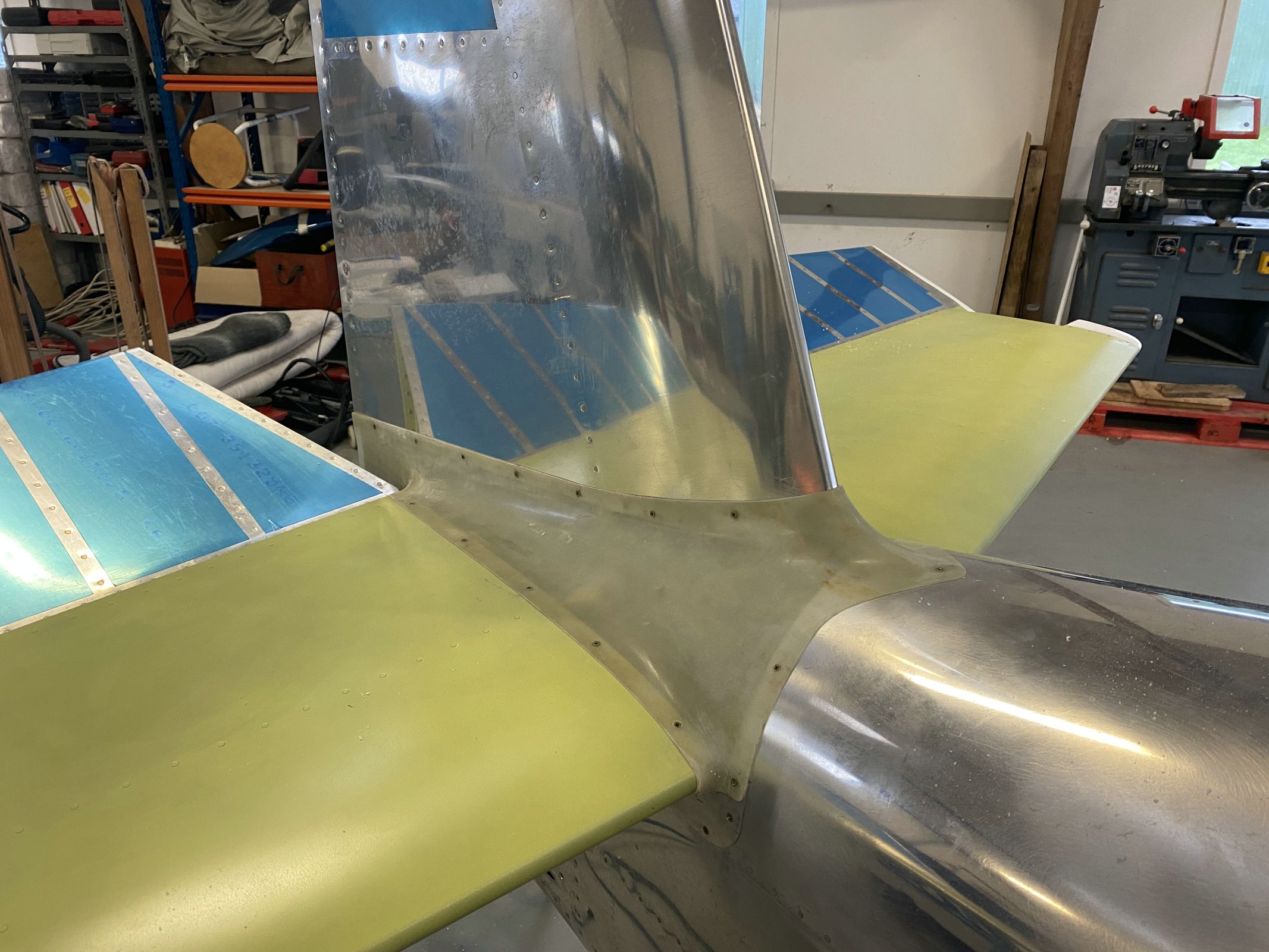

Then I finished countersinking the screw holes on the empennage fairing.

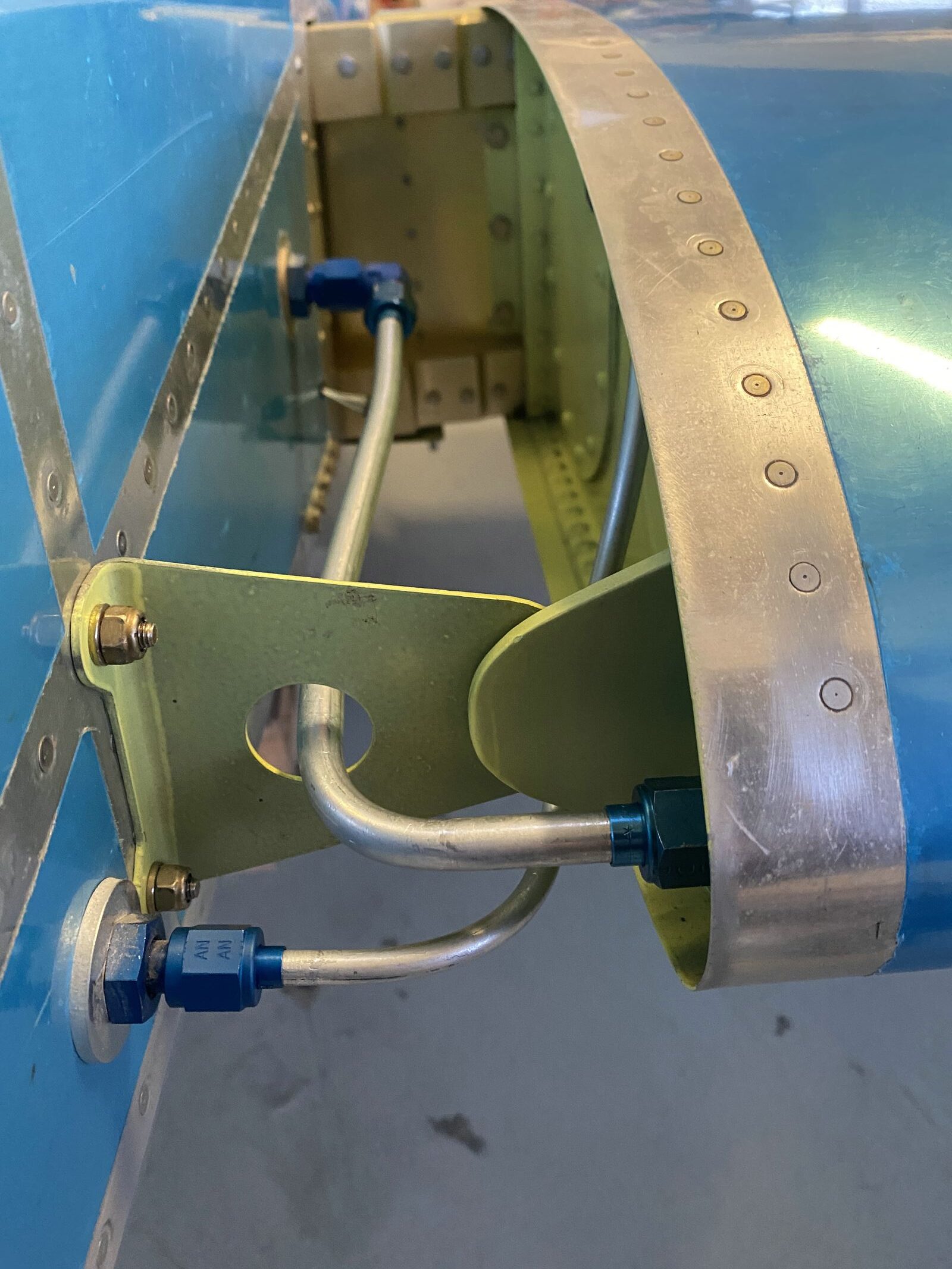

The last fuel lines was made, connecting the tanks to the fuselage.

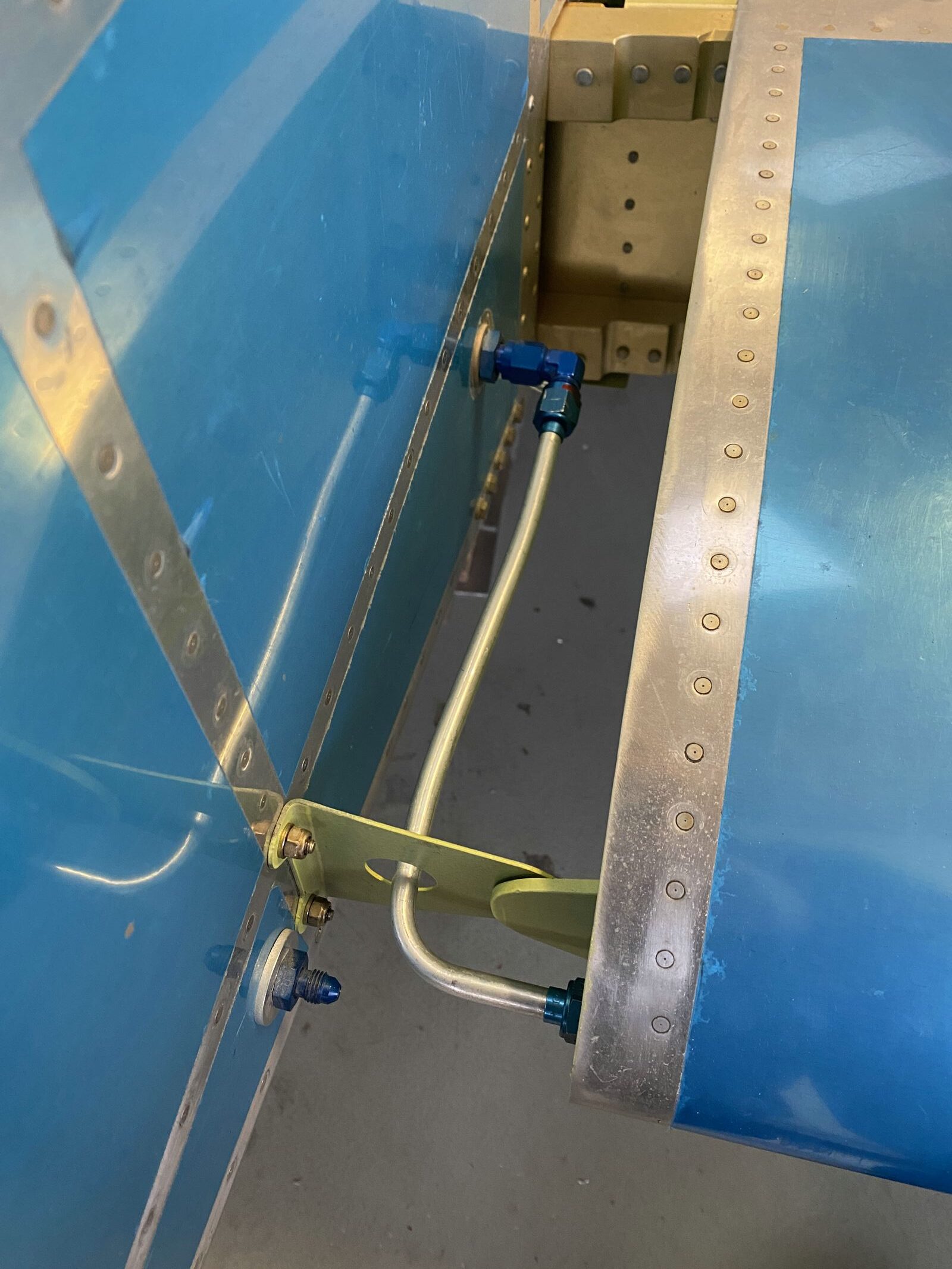

The small tube is the vent line.

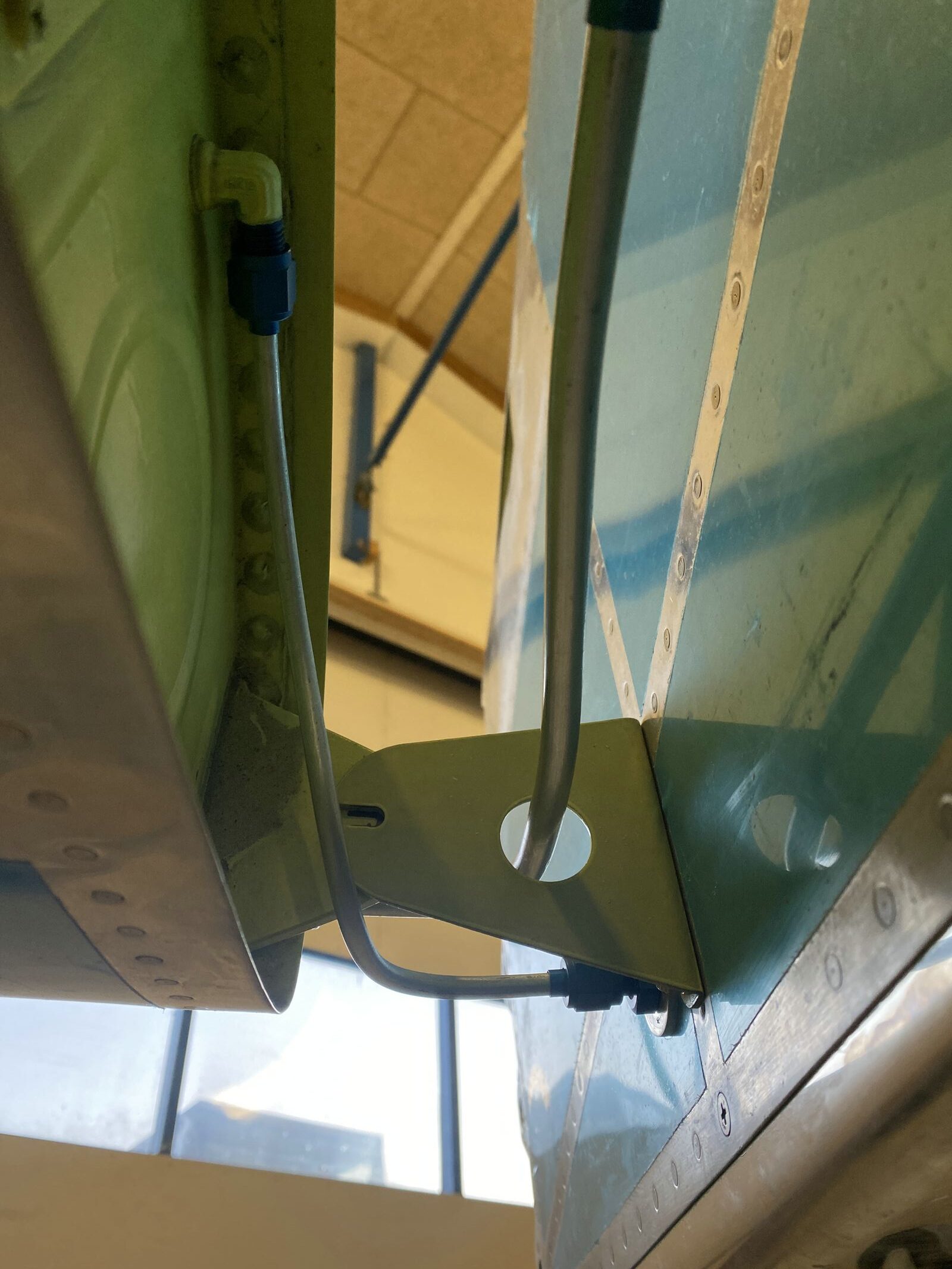

A view from below…

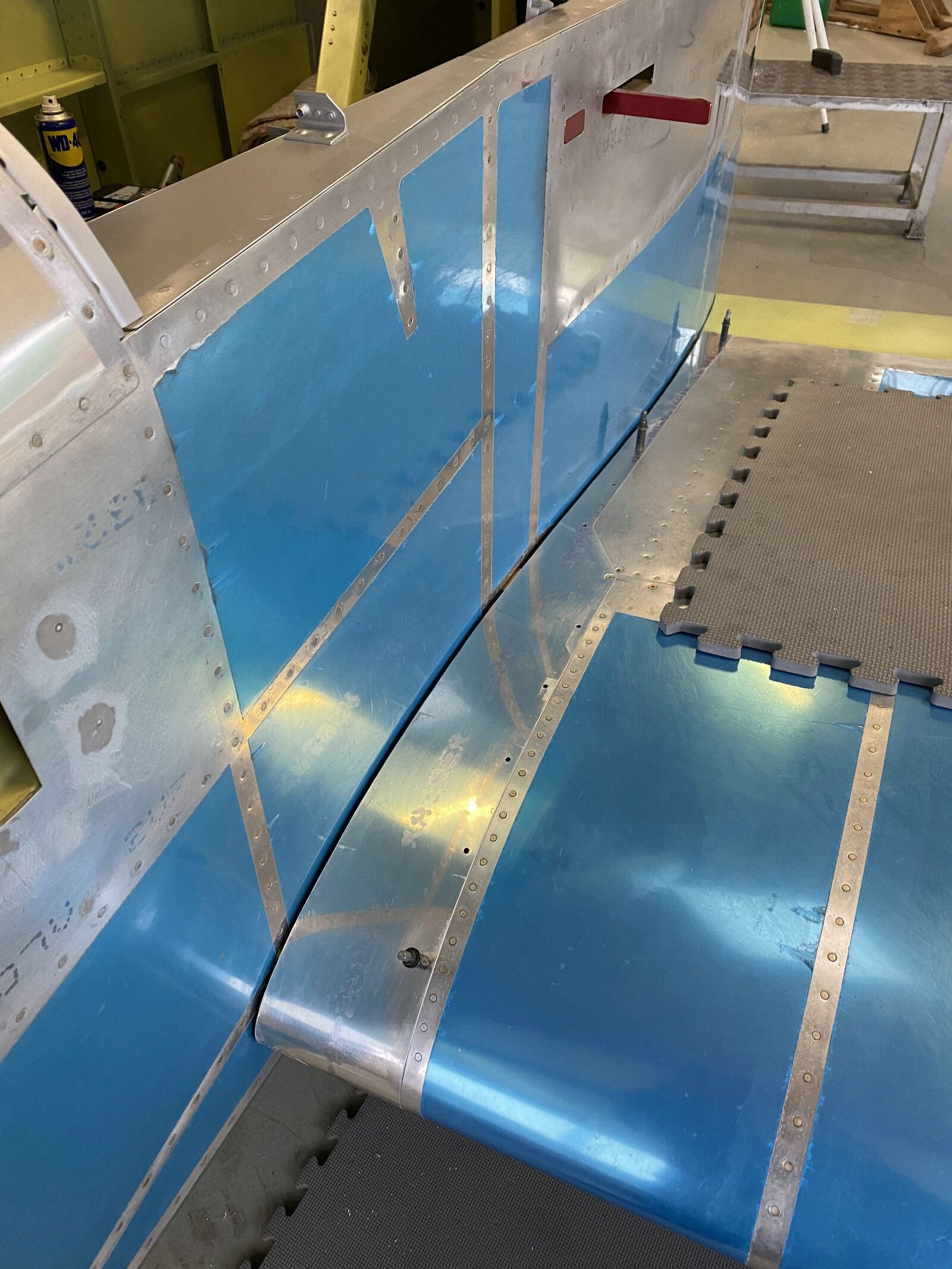

The final step before removing the wings again for paint, was to trim and matchdrill the wing root fairings.
Once the wings are removed again, I need to install a bunch of nutplates for these screws.
